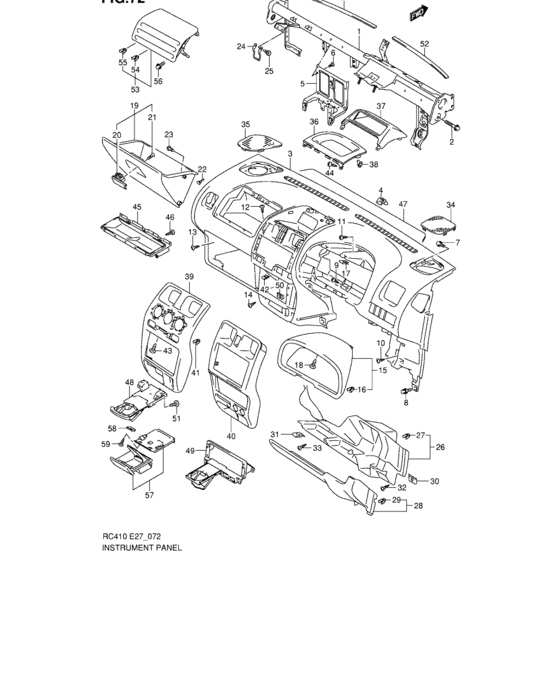

Instrument panel (INSTRUMENT PANEL) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73210-78F10-000
MEMBER,STRG SUPPORT
TYPE 1 |
73210-78F10-000 |
— | ||
|
1
|
1
73200-82H00-000
メンバ,ステアリングサポート
TYPE 2,TYPE 3 |
73200-82H00-000 |
— | ||
| replacement | |||||
|
1
|
1
73200-82H01-000
MEMBER,STRG SUPPORT
TYPE 2,TYPE 3 |
73200-82H01-000 |
— | ||
|
2
|
2
73291-50G01-000
Bolt
|
73291-50G01-000 |
— | ||
| replacement | |||||
|
2
|
2
73291-50G20-000 BOLT,STRG SPRT MBR SIDE |
73291-50G20-000 |
US $2.91 |
||
|
3
|
3
73111-78F01-P4Z
Panel, i/p main
TYPE 1 |
73111-78F01-P4Z |
— | ||
| replacement | |||||
|
3
|
3
73110-82HV0-P4Z
Panel,instrument main
TYPE 1 |
73110-82HV0-P4Z |
— | ||
|
3
|
3
73111-82H00-P4Z
PANEL,INSTR MAIN
TYPE 2,TYPE 3 |
73111-82H00-P4Z |
— | ||
|
4
|
4
73121-78F01-000 SOCKET,I/P PIN |
73121-78F01-000 |
US $3.61 |
||
|
5
|
5
73240-78F00-000
STAY,I/P CENTER
TYPE 1 |
73240-78F00-000 |
— | ||
|
5
|
5
73241-82H00-000 STAY,I/P CENTERTYPE 2,TYPE 3 |
73241-82H00-000 |
US $22.45 |
||
|
6
|
6
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
6
|
6
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.96 |
||
|
7
|
7
01580-06163-000
Bolt
|
01580-06163-000 |
— | ||
| replacement | |||||
|
7
|
7
01580-0616A-000 Bolt |
01580-0616A-000 |
from US $0.96 |
||
|
8
|
8
01580-06163-000
Bolt
|
01580-06163-000 |
— | ||
| replacement | |||||
|
8
|
8
01580-0616A-000 Bolt |
01580-0616A-000 |
from US $0.96 |
||
|
9
|
9
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
9
|
9
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
10
|
10
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
10
|
10
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
11
|
11
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
11
|
11
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
12
|
12
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
12
|
12
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
13
|
13
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
13
|
13
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
14
|
14
03142-05163-000
Screw
|
03142-05163-000 |
— | ||
| replacement | |||||
|
14
|
14
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
15
|
15
73311-76F10-5PK PANEL,INSTR CLST |
73311-76F10-5PK |
US $49.68 |
||
|
16
|
16
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
17
|
17
09148-05045-000 NUT |
09148-05045-000 |
from US $0.79 |
||
|
18
|
18
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
18
|
18
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
19
|
19
73410-78F00-P4Z
ボックス,グローブ(グレー)
|
73410-78F00-P4Z |
— | ||
| replacement | |||||
|
19
|
19
73410-78F01-P4Z
BOX,GLOVE
|
73410-78F01-P4Z |
— | ||
|
20
|
20
73430-60G01-P4Z LOCK,GLOVE BOX |
73430-60G01-P4Z |
US $38.64 |
||
|
21
|
21
02122-04123-000
Screw
|
02122-04123-000 |
— | ||
| replacements | |||||
|
21
|
21
02122-0412B-000 SCREW |
02122-0412B-000 |
US $12.90 |
||
|
21
|
21
02122-0412A-000 SCREWScrew, cap |
02122-0412A-000 |
from US $0.96 |
||
|
22
|
22
73461-77E00-000 CUSHION,GLV BOX LIDCushion, glove box lid side |
73461-77E00-000 |
from US $1.44 |
||
|
23
|
23
09409-07019-5PK CLIP(BLACK) |
09409-07019-5PK |
US $1.60 |
||
|
24
|
24
73452-78A00-000 STRIKER,GLOVE BOX |
73452-78A00-000 |
US $7.69 |
||
|
25
|
25
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
25
|
25
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
26
|
26
73811-78F10-P4Z
COVER,STRG COLUMN HOLE
|
73811-78F10-P4Z |
— | ||
|
27
|
27
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
28
|
28
73812-78F00-P4Z
COVER,STRG COLUMN HOLE,FR
|
73812-78F00-P4Z |
— | ||
|
29
|
29
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
30
|
30
09148-05045-000 NUT |
09148-05045-000 |
from US $0.79 |
||
|
31
|
31
09148-05045-000 NUT |
09148-05045-000 |
from US $0.79 |
||
|
32
|
32
03142-05163-000
Screw
|
03142-05163-000 |
— | ||
| replacement | |||||
|
32
|
32
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
33
|
33
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
33
|
33
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
34
|
34
73832-76F00-5PK COVER,SPEAKER HOLE,R |
73832-76F00-5PK |
US $15.86 |
||
|
35
|
35
73833-76F00-5PK COVER,SPEAKER HOLE,L |
73833-76F00-5PK |
US $15.86 |
||
|
36
|
36
73822-78F00-5PK
TRAY,I/P CTR UPPER
TYPE 1 |
73822-78F00-5PK |
— | ||
|
37
|
37
73831-82H00-5PK
GARNISH,I/P CTR UPR
TYPE 2 |
73831-82H00-5PK |
— | ||
|
38
|
38
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
39
|
39
73800-78810-5PK
GARNISH,I/P CTR
TYPE 1 |
73800-78810-5PK |
— | ||
|
40
|
40
73820-82H00-KD9
GARNISH,I/P CTR
TYPE 2 |
73820-82H00-KD9 |
— | ||
|
40
|
40
73820-82H00-JA6 GARNISH,I/P CTRTYPE 3 |
73820-82H00-JA6 |
US $82.43 |
||
|
41
|
41
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
42
|
42
09148-05045-000 NUT |
09148-05045-000 |
from US $0.79 |
||
|
43
|
43
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
43
|
43
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
44
|
44
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
44
|
44
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
45
|
45
73841-78F00-P4Z
TRAY,I/P LOWER
|
73841-78F00-P4Z |
— | ||
|
46
|
46
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
46
|
46
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
47
|
47
73141-76F00-000 SILENCER,I/P UPPER |
73141-76F00-000 |
US $23.74 |
||
|
48
|
48
73850-84F00-5PK HOLDER,CUPTYPE 1 |
73850-84F00-5PK |
US $39.74 |
||
|
49
|
49
73850-82H00-5PK HOLDER,CUPTYPE 2,TYPE 3 |
73850-82H00-5PK |
US $40.11 |
||
|
50
|
50
09148-05045-000 NUTTYPE 2,TYPE 3 |
09148-05045-000 |
from US $0.79 |
||
|
51
|
51
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
51
|
51
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
52
|
52
73118-78F01-000
シール,インストゥルメントパネル
|
73118-78F01-000 |
— | ||
| replacement | |||||
|
52
|
52
73118-83E10-000 SEAL,I/P |
73118-83E10-000 |
US $5.92 |
||
|
53
|
53
73910-78F50-P4Z
モジュール,パッセンジャエアバッグ(グレー)
TYPE 1 |
73910-78F50-P4Z |
— | ||
| replacement | |||||
|
53
|
53
73910-78F51-P4Z
MODULE,PASS A/B
TYPE 1 |
73910-78F51-P4Z |
— | ||
|
53
|
53
73910-70H00-P4Z
モジュール,パッセンジャエアバッグ(グレー)
TYPE 2,TYPE 3 |
73910-70H00-P4Z |
— | ||
| replacement | |||||
|
53
|
53
73910-70H01-P4Z
MODULE,PASS A/B
TYPE 2,TYPE 3 |
73910-70H01-P4Z |
— | ||
|
54
|
54
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
55
|
55
09409-08332-000 CLIP |
09409-08332-000 |
from US $1.12 |
||
|
56
|
56
01551-08163-000
Bolt
|
01551-08163-000 |
— | ||
| replacements | |||||
|
56
|
56
01551-0816C-000 Bolt |
01551-0816C-000 |
from US $0.96 |
||
|
56
|
56
01551-0816A-000
ボルト
|
01551-0816A-000 |
— | ||
|
57
|
57
89810-80G01-5PK ASHTRAY,FRTYPE 1 |
89810-80G01-5PK |
from US $39.53 |
||
|
57
|
57
89810-80G11-5PK ASHTRAY,FRTYPE 2,TYPE 3 |
89810-80G11-5PK |
from US $26.17 |
||
|
58
|
58
09148-05045-000 NUT |
09148-05045-000 |
from US $0.79 |
||
|
59
|
59
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
59
|
59
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
