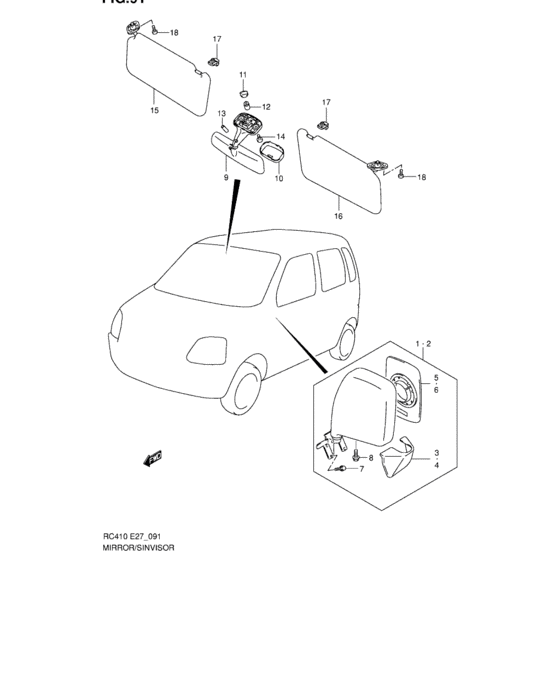

Mirror/sunvisor (TYPE 1) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84701-76F10-ZJ3
MIRROR ASSY,RR VIEW,R
|
84701-76F10-ZJ3 |
— | ||
|
1
|
1
84701-76F10-Z2J
MIRROR ASSY,RR VIEW,R
|
84701-76F10-Z2J |
— | ||
|
1
|
1
84701-76F10-Z2S MIRROR ASSY,RR VIEW,R |
84701-76F10-Z2S |
US $189.52 |
||
|
1
|
1
84701-76F10-Z7T MIRROR ASSY,RR VIEW,R |
84701-76F10-Z7T |
US $889.60 |
||
|
1
|
1
84701-76F10-Z9T
MIRROR ASSY,RR VIEW,R
|
84701-76F10-Z9T |
— | ||
|
2
|
2
84702-76F10-ZJ3
MIRROR ASSY,RR VIEW,L
|
84702-76F10-ZJ3 |
— | ||
|
2
|
2
84702-76F10-Z2J
MIRROR ASSY,RR VIEW,L
|
84702-76F10-Z2J |
— | ||
|
2
|
2
84702-76F10-Z2S
MIRROR ASSY,RR VIEW,L
|
84702-76F10-Z2S |
— | ||
|
2
|
2
84702-76F10-Z7T
MIRROR ASSY,RR VIEW,L
|
84702-76F10-Z7T |
— | ||
|
2
|
2
84702-76F10-Z9T
MIRROR ASSY,RR VIEW,L
|
84702-76F10-Z9T |
— | ||
|
3
|
3
84719-76F11-ZJ3 COVER,OUT RR VIEW MIR,R |
84719-76F11-ZJ3 |
US $24.84 |
||
|
3
|
3
84719-76F11-Z2J
COVER,OUT RR VIEW MIR,R
|
84719-76F11-Z2J |
— | ||
|
3
|
3
84719-76F11-Z2S
COVER,OUT RR VIEW MIR,R
|
84719-76F11-Z2S |
— | ||
|
3
|
3
84719-76F11-Z7T COVER,OUT RR VIEW MIR,R |
84719-76F11-Z7T |
US $24.84 |
||
|
3
|
3
84719-76F11-Z9T
COVER,OUT RR VIEW MIR,R
|
84719-76F11-Z9T |
— | ||
|
4
|
4
84729-76F11-ZJ3 COVER,OUT RR VIEW,MIR,L |
84729-76F11-ZJ3 |
US $24.84 |
||
|
4
|
4
84729-76F11-Z2J
COVER,OUT RR VIEW MIR,L
|
84729-76F11-Z2J |
— | ||
|
4
|
4
84729-76F11-Z2S
COVER,OUT RR VIEW MIR,L
|
84729-76F11-Z2S |
— | ||
|
4
|
4
84729-76F11-Z7T
COVER,OUT RR VIEW MIR,L
|
84729-76F11-Z7T |
— | ||
|
4
|
4
84729-76F11-Z9T COVER,OUT RR VIEW MIR,L |
84729-76F11-Z9T |
US $22.45 |
||
|
5
|
5
84730-76F10-000
GLASS,OUT,RR VIEW MIRROR,R
|
84730-76F10-000 |
— | ||
|
6
|
6
84740-76F10-000
GLASS,OUT,RR VIEW MIRROR,L
|
84740-76F10-000 |
— | ||
|
7
|
7
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
7
|
7
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.96 |
||
|
8
|
8
84718-76F10-000 SCREW,MIRROR BASE |
84718-76F10-000 |
US $2.21 |
||
|
9
|
9
84703-76G20-6GS
Mirror assy,inside rear view
|
84703-76G20-6GS |
— | ||
| replacement | |||||
|
9
|
9
84703-73H01-6GS MIRROR ASSY,INS RR VIEW |
84703-73H01-6GS |
US $123.65 |
||
|
10
|
10
36212-76G00-000 LENS,ROOM LAMP |
36212-76G00-000 |
from US $2.27 |
||
|
11
|
11
36218-74F00-000 SOCKET |
36218-74F00-000 |
from US $2.12 |
||
|
12
|
12
09471-12113-000 BULB(12V8W) |
09471-12113-000 |
from US $1.69 |
||
|
13
|
13
84782-76G00-000 SUPPORT,INSIDE MIRROR |
84782-76G00-000 |
US $3.31 |
||
|
14
|
14
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
14
|
14
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
15
|
15
84801-78F32-6GS
Sunvisor assy,r(gray)
|
84801-78F32-6GS |
— | ||
|
16
|
16
84802-78F42-6GS
Sunvisor assy, lh
|
84802-78F42-6GS |
— | ||
| replacement | |||||
|
16
|
16
84802-78F43-6GS
Sunvisor assy,l
|
84802-78F43-6GS |
— | ||
|
17
|
17
84851-65D00-6GS HOLDER,SUNVISOR |
84851-65D00-6GS |
from US $2.56 |
||
|
18
|
18
03121-05163-000
Screw
|
03121-05163-000 |
— | ||
| replacement | |||||
|
18
|
18
03121-0516A-000 SCREW |
03121-0516A-000 |
from US $0.96 |
||
