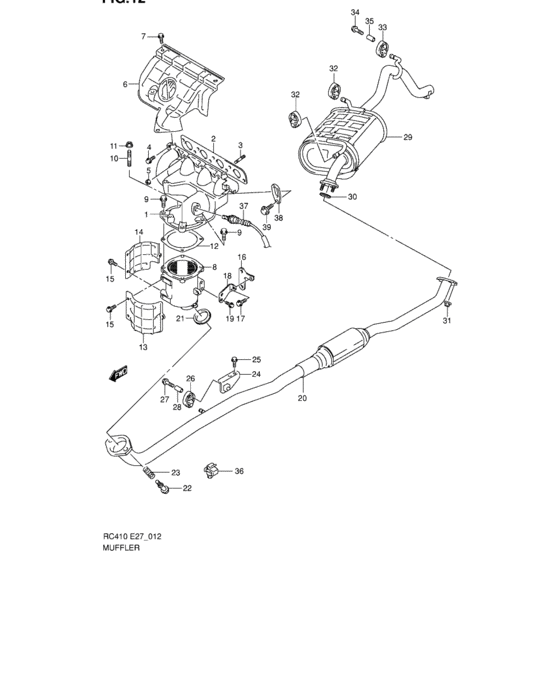

Muffler (MUFFLER) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-78F01-000
MANIFOLD,EXH
|
14111-78F01-000 |
— | ||
|
2
|
2
14140-78F00-000
GASKET,EXH MANF
|
14140-78F00-000 |
— | ||
|
3
|
3
14119-81402-000 STUD BOLT |
14119-81402-000 |
US $2.72 |
||
|
4
|
4
14118-70G50-000 BOLT,EXH MANF 8X25 |
14118-70G50-000 |
US $7.36 |
||
|
5
|
5
09159-08056-000 NUT |
09159-08056-000 |
US $1.28 |
||
|
6
|
6
14131-78F01-000 COVER,EXH MANIFOLD |
14131-78F01-000 |
US $16.45 |
||
|
7
|
7
09103-06168-000 BOLT(6X10) |
09103-06168-000 |
from US $0.95 |
||
|
8
|
8
14100-78870-000
CASE SET,CATALYST
|
14100-78870-000 |
— | ||
|
9
|
9
09103-10315-000 BOLT(10X30) |
09103-10315-000 |
US $35.30 |
||
|
10
|
10
09108-10122-000 BOLT,STUD |
09108-10122-000 |
from US $3.40 |
||
|
11
|
11
09140-10031-000 NUT |
09140-10031-000 |
from US $1.49 |
||
|
12
|
12
14181-78F00-000 GASKET,CATALYST CASE |
14181-78F00-000 |
US $10.56 |
||
|
13
|
13
14171-78F00-000
COVER,CATALYST CASE,FR
|
14171-78F00-000 |
— | ||
|
14
|
14
14171-78F10-000
COVER,CATALYST CASE,R
|
14171-78F10-000 |
— | ||
|
15
|
15
09103-06168-000 BOLT(6X10) |
09103-06168-000 |
from US $0.95 |
||
|
16
|
16
14172-78F01-000
BRACKET,CTLST CASE N0.1
|
14172-78F01-000 |
— | ||
|
17
|
17
01550-10253-000
Bolt
|
01550-10253-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-1025B-000 BoltBolt, rr swgarm bracket, l |
01550-1025B-000 |
from US $1.28 |
||
|
17
|
17
01550-1025A-000 BoltBolt, drive gear |
01550-1025A-000 |
from US $1.06 |
||
|
18
|
18
14173-78F01-000 BRACKET,CTLST CASE N0.2 |
14173-78F01-000 |
US $3.16 |
||
|
19
|
19
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0816B-000 Bolt |
01550-0816B-000 |
from US $0.91 |
||
|
19
|
19
01550-0816A-000 BoltBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
20
|
20
14190-78F01-000 PIPE,EXHAUSTTYPE 1 |
14190-78F01-000 |
US $305.44 |
||
|
20
|
20
14190-78F10-000 PIPE,EXHAUSTTYPE 2,TYPE 3 |
14190-78F10-000 |
US $250.24 |
||
|
21
|
21
14183-50G00-000
Ring, seal
|
14183-50G00-000 |
— | ||
| replacement | |||||
|
21
|
21
14183-76A00-000 RING,SEAL EXH PIPE |
14183-76A00-000 |
from US $12.62 |
||
|
22
|
22
09119-10041-000 BOLT(10X65) |
09119-10041-000 |
from US $5.18 |
||
|
23
|
23
14492-82600-000
Spring
|
14492-82600-000 |
— | ||
| replacement | |||||
|
23
|
23
14492-67D00-000 SPRING,EXH PIPE |
14492-67D00-000 |
from US $6.21 |
||
|
24
|
24
14284-75F00-000 BRACKET,EXH PIPE |
14284-75F00-000 |
US $7.88 |
||
|
25
|
25
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
25
|
25
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
25
|
25
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
26
|
26
14281-75F00-000
Mounting
|
14281-75F00-000 |
— | ||
| replacement | |||||
|
26
|
26
14281-75F01-000 MOUNTING,MUF |
14281-75F01-000 |
from US $4.88 |
||
|
27
|
27
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0835B-000 Bolt |
01550-0835B-000 |
from US $1.28 |
||
|
27
|
27
01550-0835A-000 Bolt |
01550-0835A-000 |
from US $1.06 |
||
|
28
|
28
09180-08057-000
Spacer
|
09180-08057-000 |
— | ||
| replacement | |||||
|
28
|
28
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.04 |
||
|
29
|
29
14300-80G10-000
マフラ
TYPE 1 |
14300-80G10-000 |
— | ||
| replacement | |||||
|
29
|
29
14300-80G30-000 MUFFLERTYPE 1 |
14300-80G30-000 |
US $312.80 |
||
|
29
|
29
14300-82H00-000 MUFFLERTYPE 2,TYPE 3 |
14300-82H00-000 |
US $924.80 |
||
|
30
|
30
14182-60B00-000
GASKET,EXH PIPE
|
14182-60B00-000 |
— | ||
| replacement | |||||
|
30
|
30
14182-60B01-000 Gasket,exh Pipe |
14182-60B01-000 |
from US $3.34 |
||
|
31
|
31
09159-10049-000 Nut |
09159-10049-000 |
US $1.28 |
||
| replacement | |||||
|
31
|
31
09159-10102-000 NUT |
09159-10102-000 |
from US $1.28 |
||
|
32
|
32
14281-75F00-000
Mounting
|
14281-75F00-000 |
— | ||
| replacement | |||||
|
32
|
32
14281-75F01-000 MOUNTING,MUF |
14281-75F01-000 |
from US $4.88 |
||
|
33
|
33
14281-80G00-000 MOUNTING,MUF |
14281-80G00-000 |
from US $4.46 |
||
|
34
|
34
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
34
|
34
01550-0835B-000 Bolt |
01550-0835B-000 |
from US $1.28 |
||
|
34
|
34
01550-0835A-000 Bolt |
01550-0835A-000 |
from US $1.06 |
||
|
35
|
35
09180-08057-000
Spacer
|
09180-08057-000 |
— | ||
| replacement | |||||
|
35
|
35
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.04 |
||
|
36
|
36
18214-75F00-000 CLAMP |
18214-75F00-000 |
from US $1.82 |
||
|
37
|
37
18213-76G51-000
SENSOR,OXYGEN
|
18213-76G51-000 |
— | ||
|
38
|
38
11851-62B00-000 HOOK |
11851-62B00-000 |
from US $1.87 |
||
|
39
|
39
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
39
|
39
01550-0816B-000 Bolt |
01550-0816B-000 |
from US $0.91 |
||
|
39
|
39
01550-0816A-000 BoltBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
