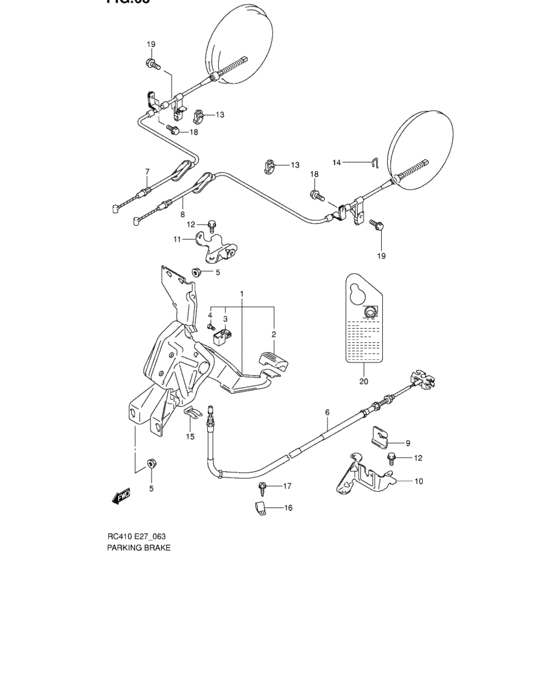

Parking brake (PARKING BRAKE) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-76F50-000 PEDAL ASSY,PARKING BRAKE |
54100-76F50-000 |
US $189.52 |
||
|
2
|
2
54112-74F00-000 PAD,PARKING PEDAL |
54112-74F00-000 |
US $12.59 |
||
|
3
|
3
37940-76F50-000 SWITCH ASSY,PARKING BRAKE |
37940-76F50-000 |
US $14.87 |
||
|
4
|
4
54115-76F50-000 SCREW |
54115-76F50-000 |
US $5.04 |
||
|
5
|
5
09159-08127-000 NUT |
09159-08127-000 |
US $9.90 |
||
|
6
|
6
54410-78F00-000 CABLE,PARKING BRAKE,FR |
54410-78F00-000 |
US $43.06 |
||
|
6
|
6
54410-76F51-000 CABLE,PARKING BK,FRMA64S-122164~ |
54410-76F51-000 |
from US $56.67 |
||
|
7
|
7
54401-78F01-000 CABLE PARKING BRAKE RHTYPE 1 |
54401-78F01-000 |
US $52.81 |
||
| replacements | |||||
|
7
|
7
54401-78F03-000 CABLE,PARKING BRAKE,RTYPE 1 |
54401-78F03-000 |
from US $52.81 |
||
|
7
|
7
54415-72J00-000 CLAMP,PARKING CABLETYPE 1 |
54415-72J00-000 |
from US $2.03 |
||
|
7
|
7
54401-82H00-000
ケーブル,パーキングブレーキ,ライト
TYPE 2,TYPE 3 |
54401-82H00-000 |
— | ||
| replacements | |||||
|
7
|
7
54401-82H02-000 CABLE,PARKING BRAKE,RTYPE 2,TYPE 3 |
54401-82H02-000 |
US $72.50 |
||
|
7
|
7
54415-72J00-000 CLAMP,PARKING CABLETYPE 2,TYPE 3 |
54415-72J00-000 |
from US $2.03 |
||
|
8
|
8
54402-78F10-000 CABLE PARKING BRAKE LHTYPE 1 |
54402-78F10-000 |
US $55.85 |
||
| replacements | |||||
|
8
|
8
54402-78F12-000 CABLE,PARKING BRAKE,LTYPE 1 |
54402-78F12-000 |
from US $55.85 |
||
|
8
|
8
54415-72J00-000 CLAMP,PARKING CABLETYPE 1 |
54415-72J00-000 |
from US $2.03 |
||
|
8
|
8
54402-82H00-000
ケーブル,パーキングブレーキ,レフト
TYPE 2,TYPE 3 |
54402-82H00-000 |
— | ||
| replacements | |||||
|
8
|
8
54402-82H02-000 CABLE,PARKING BRAKE,LTYPE 2,TYPE 3 |
54402-82H02-000 |
US $72.50 |
||
|
8
|
8
54415-72J00-000 CLAMP,PARKING CABLETYPE 2,TYPE 3 |
54415-72J00-000 |
from US $2.03 |
||
|
9
|
9
54495-70B30-000 STRENGTH,PARKING CABLE |
54495-70B30-000 |
US $5.63 |
||
|
10
|
10
54495-76F50-000 BRACKET,PARKING BRAKE CABLE,FR |
54495-76F50-000 |
US $17.81 |
||
|
11
|
11
54495-76G00-000
ブラケット,パーキングケーブル
|
54495-76G00-000 |
— | ||
|
12
|
12
01551-08163-000
Bolt
|
01551-08163-000 |
— | ||
| replacements | |||||
|
12
|
12
01551-0816C-000 Bolt |
01551-0816C-000 |
from US $0.96 |
||
|
12
|
12
01551-0816A-000
ボルト
|
01551-0816A-000 |
— | ||
|
13
|
13
54415-77A00-000 CLAMP,PARKING CABLE |
54415-77A00-000 |
from US $1.60 |
||
|
14
|
14
53771-70G00-000 CLIP,PARKING CABLE |
53771-70G00-000 |
US $2.61 |
||
|
15
|
15
09383-08007-000 CLIP |
09383-08007-000 |
US $20.60 |
||
|
16
|
16
09403-12402-000 CLAMP(ID:12)Collier (id:12) |
09403-12402-000 |
US $13.20 |
||
|
17
|
17
09132-06008-000 SCREW(6X12) |
09132-06008-000 |
US $12.90 |
||
|
18
|
18
01551-08203-000
Bolt
TYPE 1 |
01551-08203-000 |
— | ||
| replacement | |||||
|
18
|
18
01551-0820A-000 BoltTYPE 1 |
01551-0820A-000 |
from US $0.96 |
||
|
18
|
18
01551-08163-000
Bolt
TYPE 2,TYPE 3 |
01551-08163-000 |
— | ||
| replacements | |||||
|
18
|
18
01551-0816C-000 BoltTYPE 2,TYPE 3 |
01551-0816C-000 |
from US $0.96 |
||
|
18
|
18
01551-0816A-000
ボルト
TYPE 2,TYPE 3 |
01551-0816A-000 |
— | ||
|
19
|
19
02162-06253-000
Bolt
|
02162-06253-000 |
— | ||
| replacement | |||||
|
19
|
19
02162-0625A-000 SCREW |
02162-0625A-000 |
from US $0.76 |
||
|
20
|
20
54851-78F00-000
TAG,PARKING BRAKE WARNING
|
54851-78F00-000 |
— | ||
