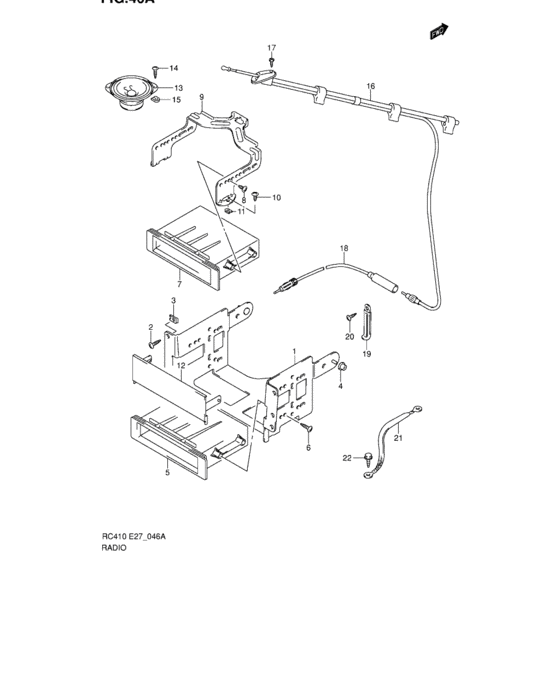

Radio (TYPE 2,3) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39321-82H00-000 BRACKET,TUNER |
39321-82H00-000 |
US $15.97 |
||
|
2
|
2
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
2
|
2
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
3
|
3
09148-05045-000 NUT |
09148-05045-000 |
from US $0.79 |
||
|
4
|
4
34955-54G10-000 BUSH,RADIO BRKT |
34955-54G10-000 |
from US $0.88 |
||
|
5
|
5
39182-70E50-000
POCKETTUNER
|
39182-70E50-000 |
— | ||
| replacement | |||||
|
5
|
5
39182-70E51-000 POCKET,TUNER |
39182-70E51-000 |
from US $13.93 |
||
|
6
|
6
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
6
|
6
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
7
|
7
39182-82H00-000
ポケット,アッパ
|
39182-82H00-000 |
— | ||
| replacement | |||||
|
7
|
7
39182-82H01-000 POCKET,TUNER |
39182-82H01-000 |
US $21.71 |
||
|
8
|
8
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
8
|
8
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
9
|
9
39321-82H10-000 BRACKET,INSTPNL UPPER POCKET |
39321-82H10-000 |
US $12.81 |
||
|
10
|
10
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
10
|
10
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
11
|
11
09148-05045-000 NUT |
09148-05045-000 |
from US $0.79 |
||
|
12
|
12
39161-74G00-000 COVER,RADIO HOLE |
39161-74G00-000 |
US $8.65 |
||
|
13
|
13
39102-80G20-000
Speaker assy
|
39102-80G20-000 |
— | ||
| replacement | |||||
|
13
|
13
39102-80G30-000 SPEAKER ASSY |
39102-80G30-000 |
US $41.22 |
||
|
14
|
14
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
14
|
14
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
15
|
15
09148-05045-000 NUT |
09148-05045-000 |
from US $0.79 |
||
|
16
|
16
39250-76F20-000 ANTENNA ASSY |
39250-76F20-000 |
US $74.70 |
||
|
17
|
17
09125-04033-000
スクリュ,4X16
|
09125-04033-000 |
— | ||
| replacement | |||||
|
17
|
17
09129-04003-000 SCREW(4X12) |
09129-04003-000 |
US $1.60 |
||
|
18
|
18
39271-75F00-000 FEEDER,ANT |
39271-75F00-000 |
US $18.58 |
||
|
19
|
19
09404-06431-000
CLAMP(L:65)
|
09404-06431-000 |
— | ||
| replacements | |||||
|
19
|
19
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
19
|
19
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
19
|
19
09404-06038-000 Clamp(L:65) |
09404-06038-000 |
from US $2.40 |
||
|
20
|
20
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
20
|
20
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
21
|
21
39312-78F01-000 WIRE,NOISE SUPPR |
39312-78F01-000 |
US $5.67 |
||
|
22
|
22
09115-06001-000 Bolt, lhBolt (6x16) |
09115-06001-000 |
US $0.86 |
||
| replacement | |||||
|
22
|
22
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
from US $0.86 |
||
