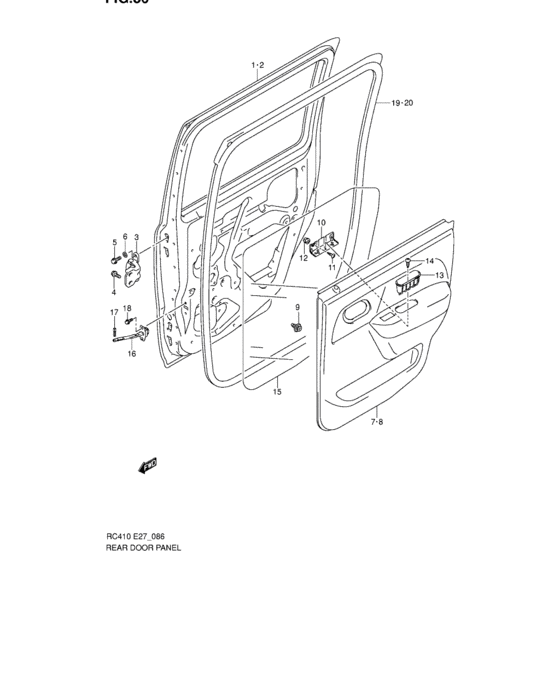

Rear door panel (REAR DOOR PANEL) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68003-84F00-000 PANEL ASSY,REAR DOOR,RTYPE 1 |
68003-84F00-000 |
US $528 |
||
|
1
|
1
68003-78F00-000 PANEL ASSY,REAR DOOR,RTYPE 2,TYPE 3 |
68003-78F00-000 |
US $528 |
||
|
2
|
2
68004-76F01-000 PANEL ASSY,REAR DOOR,LTYPE 1 |
68004-76F01-000 |
US $528 |
||
|
2
|
2
68004-78F00-000 PANEL ASSY,REAR DOOR,LTYPE 2,TYPE 3 |
68004-78F00-000 |
US $528 |
||
|
3
|
3
69410-76F00-000 HINGE,RR DOOR |
69410-76F00-000 |
from US $30.53 |
||
|
4
|
4
01551-08203-000
Bolt
|
01551-08203-000 |
— | ||
| replacement | |||||
|
4
|
4
01551-0820A-000 Bolt |
01551-0820A-000 |
from US $0.96 |
||
|
5
|
5
09103-08389-000 BOLT(8X24) |
09103-08389-000 |
US $17.30 |
||
|
6
|
6
69480-65D00-000
Washer
|
69480-65D00-000 |
— | ||
|
7
|
7
83730-84F11-EJ3
Trim comp,rear door,r
TYPE 1 |
83730-84F11-EJ3 |
— | ||
|
7
|
7
83730-84F11-KA8
Trim comp,rear door,r
TYPE 2 |
83730-84F11-KA8 |
— | ||
|
7
|
7
83730-84F11-AKF
Trim comp,rear door,r
TYPE 3 |
83730-84F11-AKF |
— | ||
|
8
|
8
83740-84F11-EJ3
Trim comp,rear door,l
TYPE 1 |
83740-84F11-EJ3 |
— | ||
|
8
|
8
83740-84F11-KA8
Trim comp,rear door,l
TYPE 2 |
83740-84F11-KA8 |
— | ||
|
8
|
8
83740-84F11-AKF
TRIM,REAR DOOR,L
TYPE 3 |
83740-84F11-AKF |
— | ||
|
9
|
9
09409-08320-000 CLIP |
09409-08320-000 |
from US $1.13 |
||
|
10
|
10
83751-70G50-000
Bracket, door trim
|
83751-70G50-000 |
— | ||
| replacement | |||||
|
10
|
10
83751-70G5V-000 BRACKET,DR TRIM |
83751-70G5V-000 |
US $6.73 |
||
|
11
|
11
03241-06123-000
Screw
|
03241-06123-000 |
— | ||
| replacement | |||||
|
11
|
11
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
12
|
12
09148-06007-000 NUT |
09148-06007-000 |
from US $0.91 |
||
|
13
|
13
83799-70B20-P4Z HANDLE,SIDE DOOR TRIM |
83799-70B20-P4Z |
from US $11.97 |
||
|
14
|
14
09132-05051-000
スクリュ,5X12
|
09132-05051-000 |
— | ||
| replacement | |||||
|
14
|
14
09132-05058-000 SCREW(5X12) |
09132-05058-000 |
US $12.50 |
||
|
15
|
15
83911-60X51-000
Cover, door sealing (600x1200)
CUT AS REQUIRED |
83911-60X51-000 |
— | ||
| replacement | |||||
|
15
|
15
83911-60X52-000 COVER,DR SEALINGCUT AS REQUIRED |
83911-60X52-000 |
US $6.06 |
||
|
16
|
16
81830-65D01-000 STOP,REAR DOOR OPEN |
81830-65D01-000 |
from US $32.02 |
||
|
17
|
17
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY |
81831-70B00-000 |
from US $1.60 |
||
|
18
|
18
09122-86004-000 SCREW(6X20) |
09122-86004-000 |
US $11.80 |
||
|
19
|
19
84661-76F00-000 WEATHERSTRIP,RR DR OPNG,R |
84661-76F00-000 |
US $87.22 |
||
|
20
|
20
84671-76F00-000 WEATHERSTRIP,RR DR OPNG,L |
84671-76F00-000 |
US $87.22 |
||
