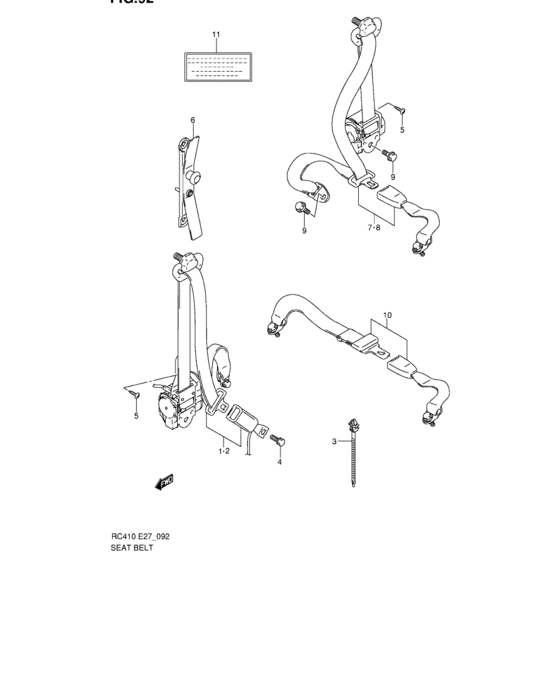

Seat belt (SEAT BELT) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84901-78FP0-ED3 BELT ASSY,FR,RTYPE 1 |
84901-78FP0-ED3 |
US $397.76 |
||
|
1
|
1
84901-78FP1-ED3
ベルトアッシ,フロント,ライト
TYPE 2,TYPE 3 |
84901-78FP1-ED3 |
— | ||
| replacement | |||||
|
1
|
1
84901-78FP2-ED3 BELT ASSY,FR,RTYPE 2,TYPE 3 |
84901-78FP2-ED3 |
US $404.80 |
||
|
2
|
2
84902-78FR0-ED3
BELT ASSY,FR,L
TYPE 1 |
84902-78FR0-ED3 |
— | ||
|
2
|
2
84902-78FR1-ED3
ベルトアッシ,フロント,レフト
TYPE 2,TYPE 3 |
84902-78FR1-ED3 |
— | ||
| replacement | |||||
|
2
|
2
84902-78FR2-ED3
Belt assy,fr,l
TYPE 2,TYPE 3 |
84902-78FR2-ED3 |
— | ||
|
3
|
3
09407-11402-000 CLAMP(L:90) |
09407-11402-000 |
from US $1.75 |
||
| replacement | |||||
|
3
|
3
09407-17402-000 CLAMP |
09407-17402-000 |
from US $1.98 |
||
|
4
|
4
09117-11001-000
Bolt (11x20)
|
09117-11001-000 |
— | ||
| replacement | |||||
|
4
|
4
09117-11002-000 BOLT(11X20) |
09117-11002-000 |
US $20.20 |
||
|
5
|
5
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
5
|
5
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
6
|
6
84990-76G00-6GS ADJUSTER ASSY,FR SHLDR |
84990-76G00-6GS |
US $64.77 |
||
|
7
|
7
84904-78F10-ED3
Belt assy,rr,r
TYPE 1 |
84904-78F10-ED3 |
— | ||
|
7
|
7
84904-82H10-ED3
Belt assy,rr,r
TYPE 2,TYPE 3 |
84904-82H10-ED3 |
— | ||
| replacement | |||||
|
7
|
7
84904-82H11-ED3
Belt assy,rr,r
TYPE 2,TYPE 3 |
84904-82H11-ED3 |
— | ||
|
8
|
8
84905-78F10-ED3
BELT ASSY,RR,L
TYPE 1 |
84905-78F10-ED3 |
— | ||
|
8
|
8
84905-82H10-ED3
ベルトアッシ,リヤ,レフト
TYPE 2,TYPE 3 |
84905-82H10-ED3 |
— | ||
| replacement | |||||
|
8
|
8
84905-82H11-ED3
BELT ASSY,RR,L
TYPE 2,TYPE 3 |
84905-82H11-ED3 |
— | ||
|
9
|
9
09103-11002-000 BOLT(7/16X22) |
09103-11002-000 |
US $18 |
||
|
10
|
10
84906-78F00-P4Z
Belt assy,rr,center
TYPE 1 |
84906-78F00-P4Z |
— | ||
|
10
|
10
84906-82H00-P4Z
ベルトアッシ,リヤ,センタ(グレー)
TYPE 2,TYPE 3 |
84906-82H00-P4Z |
— | ||
| replacement | |||||
|
10
|
10
84906-82H01-P4Z
BELT ASSY,RR CENTER
TYPE 2,TYPE 3 |
84906-82H01-P4Z |
— | ||
|
11
|
11
86937-73102-000
LABEL,SEAT BELT ANCHORAGE
|
86937-73102-000 |
— | ||
