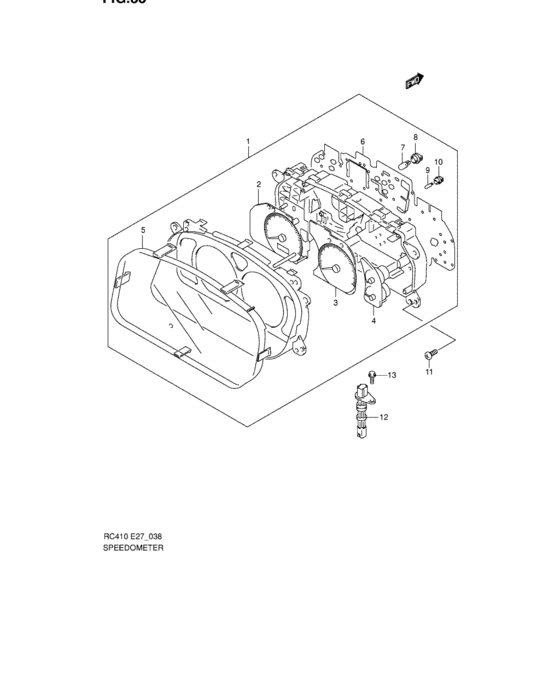

Speedometer (TYPE 1) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-78FL0-000
SPEEDOMETER ASSY,COMB
|
34100-78FL0-000 |
— | ||
|
2
|
2
34120-78FL0-000
BODY ASSY,SPEEDOMETER
|
34120-78FL0-000 |
— | ||
|
3
|
3
34220-78F30-000
BODY ASSY,TACHOMETER
|
34220-78F30-000 |
— | ||
|
4
|
4
34320-79A00-000
BODY ASSY,FUEL&TEMP METER
|
34320-79A00-000 |
— | ||
|
5
|
5
34112-78G00-000 GLASS,METER WINDOW |
34112-78G00-000 |
US $33.67 |
||
|
6
|
6
34152-78F00-000 PLATE,PRINTED |
34152-78F00-000 |
US $59.25 |
||
|
7
|
7
09471-12092-000 BULB(12V3.4W G30) |
09471-12092-000 |
from US $1.08 |
||
|
8
|
8
34172-50E10-000 SOCKET |
34172-50E10-000 |
from US $1.60 |
||
|
9
|
9
09471-12055-000 BULB(14V1.4W,T5) |
09471-12055-000 |
from US $2.12 |
||
|
10
|
10
34175-78900-000 SOCKET |
34175-78900-000 |
from US $1.52 |
||
|
11
|
11
03541-05203-000
Screw
|
03541-05203-000 |
— | ||
| replacement | |||||
|
11
|
11
03541-0520A-000 SCREW |
03541-0520A-000 |
from US $0.76 |
||
|
12
|
12
34960-74G00-000
SENSOR ASSY,SPEED
|
34960-74G00-000 |
— | ||
|
13
|
13
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0616B-000 Bolt |
01550-0616B-000 |
from US $0.76 |
||
|
13
|
13
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
