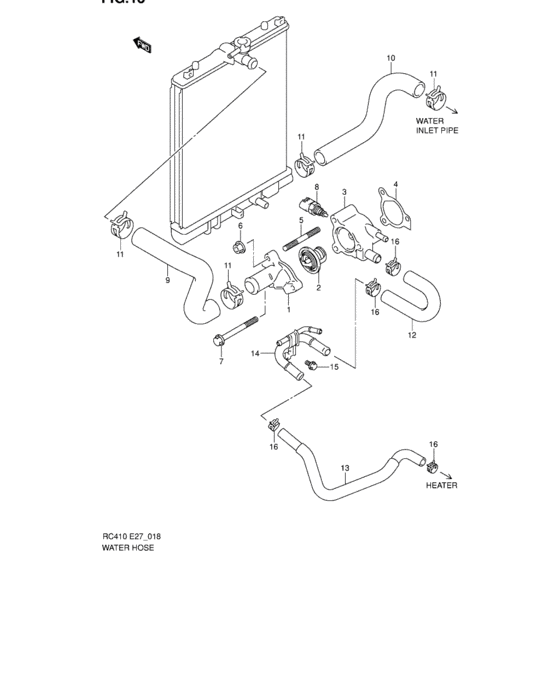

Water hose (WATER HOSE) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17561-78F00-000 CAP,WTR THERMO |
17561-78F00-000 |
US $22.63 |
||
|
2
|
2
17670-76G00-000 THERMOSTAT,WATER 82 DEG |
17670-76G00-000 |
from US $24.32 |
||
|
3
|
3
17690-78GV0-000 CASE,THERMOSTAT |
17690-78GV0-000 |
US $163.20 |
||
|
4
|
4
17699-73G01-000 GASKET,THERMOSTAT CASEGasket, thermostat case |
17699-73G01-000 |
from US $3.74 |
||
|
5
|
5
01421-08753-000
Stud bolt
|
01421-08753-000 |
— | ||
| replacement | |||||
|
5
|
5
01421-0875A-000 BOLT,STUD |
01421-0875A-000 |
from US $6.49 |
||
|
6
|
6
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
7
|
7
01550-08803-000
Bolt (8x80)
|
01550-08803-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0880B-000 BoltBolt, muffler bracket & stand |
01550-0880B-000 |
from US $3.05 |
||
|
7
|
7
01550-0880A-000 Bolt |
01550-0880A-000 |
from US $1.67 |
||
|
8
|
8
13650-50G10-000 Sensor,water TempTYPE 1 |
13650-50G10-000 |
from US $54.07 |
||
|
8
|
8
13650-73H00-000 Sensor,water TempTYPE 2,TYPE 3 |
13650-73H00-000 |
from US $30.11 |
||
|
9
|
9
17852-78F00-000
HOSE,RDTR INLET
|
17852-78F00-000 |
— | ||
|
10
|
10
17854-78F00-000
HOSE,RDTR OUTLET
|
17854-78F00-000 |
— | ||
|
11
|
11
09401-30405-000 CLIP |
09401-30405-000 |
from US $3.04 |
||
|
12
|
12
17871-78F00-000
HOSE,HTR INLET NO.1
|
17871-78F00-000 |
— | ||
|
13
|
13
17873-78F00-000 HOSE,HTR INLET NO.2 |
17873-78F00-000 |
US $15.53 |
||
|
14
|
14
17875-78F00-000
パイプ,ヒータ,インレット
|
17875-78F00-000 |
— | ||
| replacement | |||||
|
14
|
14
17875-78F0V-000
PIPE,HEATER INLET
|
17875-78F0V-000 |
— | ||
|
15
|
15
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
15
|
15
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
16
|
16
09401-18403-000 CLIPClip, heater hose |
09401-18403-000 |
from US $1.53 |
||
