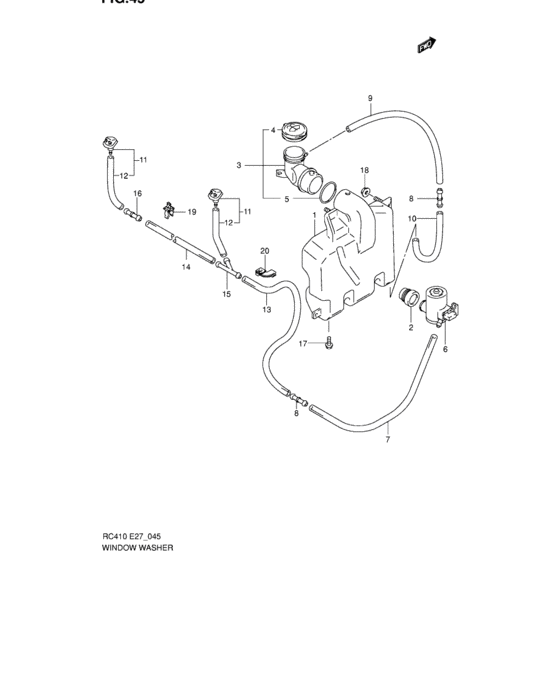

Window washer (WINDOW WASHER) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38450-78F00-000
Tank assy,washer
|
38450-78F00-000 |
— | ||
|
2
|
2
38453-78F00-000 GROMMET,WASHER TANK |
38453-78F00-000 |
from US $2.09 |
||
|
3
|
3
38402-78F00-000 PIPE ASSY,WASHER INLET |
38402-78F00-000 |
US $13.25 |
||
|
4
|
4
38452-70B00-000 CAP,WASHER TANK |
38452-70B00-000 |
from US $2.56 |
||
|
5
|
5
38454-78F00-000 O-RING,INLET PIPE |
38454-78F00-000 |
US $2.47 |
||
|
6
|
6
38410-70B10-000 PUMP ASSY,WASHER RR |
38410-70B10-000 |
US $115.92 |
||
|
7
|
7
38491-61A10-000 HOSE,WASHER L:2100 |
38491-61A10-000 |
from US $6.08 |
||
|
8
|
8
38496-56B00-000 CONNECTOR |
38496-56B00-000 |
from US $1.60 |
||
|
9
|
9
38491-61A10-000 HOSE,WASHER L:2100 |
38491-61A10-000 |
from US $6.08 |
||
|
10
|
10
38491-60B40-000
ホース,ウォッシャ,L:730
|
38491-60B40-000 |
— | ||
| replacement | |||||
|
10
|
10
38459-50J00-000 HOSE,WASHER L:810 |
38459-50J00-000 |
from US $4.10 |
||
|
11
|
11
38480-78F00-000
NOZZLE,WASHER
|
38480-78F00-000 |
— | ||
|
12
|
12
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) |
38491-61A00-000 |
from US $3.60 |
||
|
13
|
13
38491-61A10-000 HOSE,WASHER L:2100 |
38491-61A10-000 |
from US $6.08 |
||
|
14
|
14
38491-61A10-000 HOSE,WASHER L:2100 |
38491-61A10-000 |
from US $6.08 |
||
|
15
|
15
38496-71311-000 CONNECTOR,THREE WAY |
38496-71311-000 |
from US $2.03 |
||
|
16
|
16
38833-79501-000 VALVE,WASHER HOSE |
38833-79501-000 |
from US $4.12 |
||
|
17
|
17
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
17
|
17
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
18
|
18
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
19
|
19
09403-07328-000
Сlamp
|
09403-07328-000 |
— | ||
| replacement | |||||
|
19
|
19
09403-07330-000 CLAMP |
09403-07330-000 |
from US $2.75 |
||
|
20
|
20
09403-07306-000 CLAMPClamp |
09403-07306-000 |
from US $0.92 |
||
