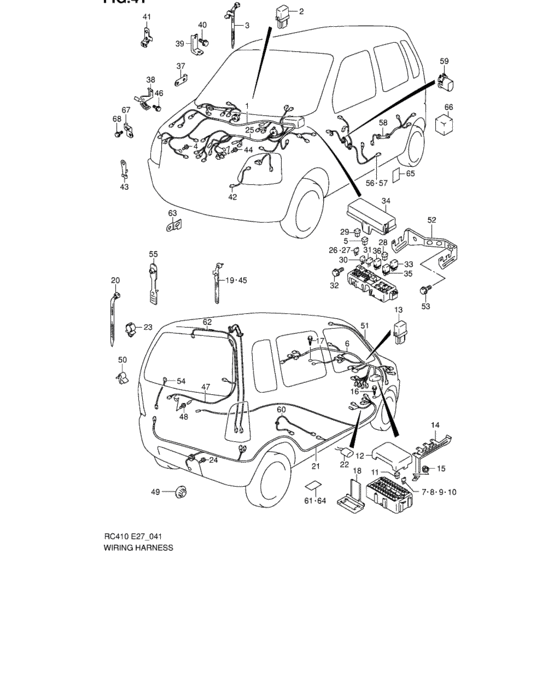

Wiring harness (WIRING HARNESS) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-78FG0-000
Harness assy,wrg,no.1
TYPE 1 |
36610-78FG0-000 |
— | ||
|
1
|
1
36610-82H60-000
Harness assy,wrg,no,1
TYPE 2,TYPE 3 |
36610-82H60-000 |
— | ||
|
2
|
2
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $26.53 |
||
|
3
|
3
36990-56B00-000 CLAMP,HARN DASH PANEL |
36990-56B00-000 |
US $1.60 |
||
|
4
|
4
09115-06001-000 Bolt, lhBolt (6x16) |
09115-06001-000 |
US $0.86 |
||
| replacement | |||||
|
4
|
4
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
from US $0.86 |
||
|
5
|
5
09481-50401-000 FUSE(50A) |
09481-50401-000 |
from US $5.02 |
||
|
6
|
6
36620-78FG0-000
ハーネスアッシ,ワイヤリング,NO.2
TYPE 1 |
36620-78FG0-000 |
— | ||
|
6
|
6
36620-82H30-000
Harness assy,wrg no.2
TYPE 2 |
36620-82H30-000 |
— | ||
|
6
|
6
36602-82H30-000
Harness assy,wrg no.2
TYPE 3 |
36602-82H30-000 |
— | ||
|
7
|
7
09481-10501-000 FUSE(10A) |
09481-10501-000 |
from US $1.10 |
||
|
8
|
8
09481-15501-000 FUSE(15A) |
09481-15501-000 |
from US $1.28 |
||
|
9
|
9
09481-20501-000 FUSE(20A) |
09481-20501-000 |
from US $1.04 |
||
|
10
|
10
09481-25501-000 FUSE(25A) |
09481-25501-000 |
from US $1.04 |
||
|
11
|
11
09481-30401-000 FUSE(30A) |
09481-30401-000 |
from US $7.20 |
||
|
12
|
12
36717-78F01-000
COVER,FUSE BOX
TYPE 1 |
36717-78F01-000 |
— | ||
|
12
|
12
36717-70H01-000 COVER,FUSE BOXTYPE 2,TYPE 3 |
36717-70H01-000 |
US $8.46 |
||
|
13
|
13
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $26.53 |
||
|
14
|
14
36621-76G00-000
BRACKET,COUPLER HOLDER
|
36621-76G00-000 |
— | ||
|
15
|
15
09159-06076-000 NUT |
09159-06076-000 |
from US $0.99 |
||
|
16
|
16
09115-06001-000 Bolt, lhBolt (6x16) |
09115-06001-000 |
US $0.86 |
||
| replacement | |||||
|
16
|
16
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
from US $0.86 |
||
|
17
|
17
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
17
|
17
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
18
|
18
33941-76F00-000
BRACKET,ALDL CONN
|
33941-76F00-000 |
— | ||
|
19
|
19
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
from US $1.33 |
||
|
20
|
20
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $1.87 |
||
|
21
|
21
36630-78F90-000
Harness assy,wrg,no.3
TYPE 1 |
36630-78F90-000 |
— | ||
|
21
|
21
36630-82H00-000
HARNESS ASSY,WRG NO.3
TYPE 2,TYPE 3 |
36630-82H00-000 |
— | ||
|
22
|
22
36639-74F00-000 DIODE |
36639-74F00-000 |
from US $13.48 |
||
|
23
|
23
75411-76G00-000 Clamp, Cable |
75411-76G00-000 |
US $2.39 |
||
|
24
|
24
09115-06001-000 Bolt, lhBolt (6x16) |
09115-06001-000 |
US $0.86 |
||
| replacement | |||||
|
24
|
24
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
from US $0.86 |
||
|
25
|
25
36650-78F70-000
Harness assy,wrg,no.5
TYPE 1 |
36650-78F70-000 |
— | ||
|
25
|
25
36650-82H10-000
Harness assy,wrg.no.5
TYPE 2 |
36650-82H10-000 |
— | ||
|
25
|
25
36605-82H10-000
Harness assy,wrg.no.5
TYPE 3 |
36605-82H10-000 |
— | ||
|
26
|
26
09481-15501-000 FUSE(15A) |
09481-15501-000 |
from US $1.28 |
||
|
27
|
27
09481-20501-000 FUSE(20A) |
09481-20501-000 |
from US $1.04 |
||
|
28
|
28
09481-30401-000 FUSE(30A) |
09481-30401-000 |
from US $7.20 |
||
|
29
|
29
09481-60401-000 FUSE(60A) |
09481-60401-000 |
from US $4.34 |
||
|
30
|
30
09481-80301-000 FUSE(80A) |
09481-80301-000 |
from US $8.93 |
||
|
31
|
31
33459-61B10-000 DIODE |
33459-61B10-000 |
from US $8.37 |
||
|
32
|
32
09138-06040-000 BOLT(6X10) |
09138-06040-000 |
US $1.52 |
||
|
33
|
33
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $26.53 |
||
|
34
|
34
36738-78F20-000 COVER,FUSE BOX |
36738-78F20-000 |
US $10.16 |
||
|
35
|
35
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $26.53 |
||
|
36
|
36
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $26.53 |
||
|
37
|
37
36651-51G00-000 BRACKET,ENG HARN |
36651-51G00-000 |
US $2.36 |
||
|
38
|
38
36652-76G10-000 BRACKET,ENG HARN |
36652-76G10-000 |
US $7.51 |
||
|
39
|
39
36653-76G00-000 BRACKET |
36653-76G00-000 |
US $3.28 |
||
|
40
|
40
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
40
|
40
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
40
|
40
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
41
|
41
36654-76G00-000 BRACKET,ENG HARN |
36654-76G00-000 |
US $3.28 |
||
|
42
|
42
36895-76G00-000
WIRE,OIL PRESS SW
|
36895-76G00-000 |
— | ||
|
43
|
43
36995-80C00-000 CLAMP,OIL P SW |
36995-80C00-000 |
US $3.42 |
||
|
44
|
44
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
44
|
44
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
44
|
44
01550-0812A-000 Bolt |
01550-0812A-000 |
from US $0.91 |
||
|
45
|
45
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
from US $1.33 |
||
|
46
|
46
01550-10163-000
Bolt
|
01550-10163-000 |
— | ||
| replacements | |||||
|
46
|
46
01550-1016B-000 BoltPlug, oil gallery |
01550-1016B-000 |
from US $1.12 |
||
|
46
|
46
01550-1016A-000 BoltPlug, oil gallery |
01550-1016A-000 |
from US $4.96 |
||
|
47
|
47
36680-78F40-000
Harness assy,back door
|
36680-78F40-000 |
— | ||
|
48
|
48
09132-06023-000 SCREW(6X16) |
09132-06023-000 |
US $16.90 |
||
|
49
|
49
09308-25002-000 GROMMET |
09308-25002-000 |
US $11.80 |
||
|
50
|
50
09403-16410-000 CLAMP |
09403-16410-000 |
from US $1.67 |
||
|
51
|
51
36820-78F00-000
WIRE,ROOM LAMP
|
36820-78F00-000 |
— | ||
|
52
|
52
36731-78F00-000
ブラケット,メインフューズボックス
|
36731-78F00-000 |
— | ||
| replacement | |||||
|
52
|
52
36731-82H00-000 BRACKET,MAIN FUSE BOX |
36731-82H00-000 |
US $9.86 |
||
|
53
|
53
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
53
|
53
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
53
|
53
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
54
|
54
36891-76G00-000 WIRE,RR DF GND |
36891-76G00-000 |
US $3.72 |
||
|
55
|
55
09407-05406-000 CLAMP(L:118) |
09407-05406-000 |
from US $1.06 |
||
|
56
|
56
36756-78F10-000
Wire, power window main
TYPE 1,TYPE 2 |
36756-78F10-000 |
— | ||
| replacement | |||||
|
56
|
56
36756-78F00-000
WIRE,P/W MAIN
TYPE 1,TYPE 2 |
36756-78F00-000 |
— | ||
|
56
|
56
36756-83HA0-000
Wire, power window main
TYPE 3 |
36756-83HA0-000 |
— | ||
| replacement | |||||
|
56
|
56
36756-83HB0-000
WIRE,P/W MAIN
TYPE 3 |
36756-83HB0-000 |
— | ||
|
57
|
57
36757-84F20-000
WIRE,P/W SUB
TYPE 1,TYPE 2 |
36757-84F20-000 |
— | ||
|
57
|
57
36757-83H10-000
WIRE,P/W SUB
TYPE 3 |
36757-83H10-000 |
— | ||
|
58
|
58
36751-84F10-000 WIRE,P/W RR |
36751-84F10-000 |
US $54.10 |
||
|
59
|
59
36759-76G00-000 PROTECTOR,DOOR HARN |
36759-76G00-000 |
US $3.28 |
||
|
60
|
60
36840-78F00-000 WIRE,FUEL PUMPTYPE 1 |
36840-78F00-000 |
US $40.48 |
||
|
60
|
60
36840-82H00-000 WIRE,FUEL PUMPTYPE 2,TYPE 3 |
36840-82H00-000 |
US $33.67 |
||
|
61
|
61
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.51 |
||
|
62
|
62
36821-78F21-000
WIRE,RR ROOM LAMP
|
36821-78F21-000 |
— | ||
|
63
|
63
36655-76G00-000
BRACKET,ENG HARN
|
36655-76G00-000 |
— | ||
|
64
|
64
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.51 |
||
|
65
|
65
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.51 |
||
|
66
|
66
36758-78F00-000 SILENCER,DOOR HARN |
36758-78F00-000 |
US $2.72 |
||
|
67
|
67
36651-62G10-000 BRACKET,ENG HARN |
36651-62G10-000 |
US $2.98 |
||
|
68
|
68
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
68
|
68
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
68
|
68
01550-0812A-000 Bolt |
01550-0812A-000 |
from US $0.91 |
||
