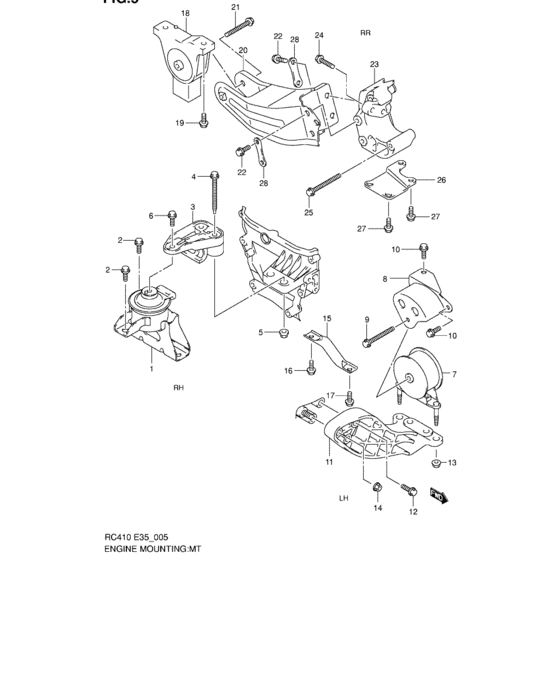

Engine mounting (MT) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-78F01-000
マウンチング,エンジン,ライト
|
11610-78F01-000 |
— | ||
| replacement | |||||
|
1
|
1
11610-78F0V-000
MOUNTING,ENG,R
|
11610-78F0V-000 |
— | ||
|
2
|
2
01551-10253-000
Bolt
|
01551-10253-000 |
— | ||
| replacement | |||||
|
2
|
2
01551-1025A-000 Bolt |
01551-1025A-000 |
US $1.12 |
||
|
3
|
3
11641-78F00-000
BRACKET,ENG MTG,R
|
11641-78F00-000 |
— | ||
|
4
|
4
11649-78F00-000
ボルト,マウンチング
|
11649-78F00-000 |
— | ||
| replacement | |||||
|
4
|
4
11649-78F0V-000
BOLT,MTG
|
11649-78F0V-000 |
— | ||
|
5
|
5
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
6
|
6
01551-10303-000
Bolt
|
01551-10303-000 |
— | ||
| replacement | |||||
|
6
|
6
01551-1030A-000 Bolt |
01551-1030A-000 |
US $19.50 |
||
|
7
|
7
11620-78F00-000 MOUNTING,ENG,L |
11620-78F00-000 |
US $208 |
||
|
8
|
8
11671-78F01-000 BRACKET,ENG MTG BODY,L |
11671-78F01-000 |
from US $9.83 |
||
|
9
|
9
09113-10005-000 BOLT(10X90) |
09113-10005-000 |
from US $2.41 |
||
|
10
|
10
01551-08203-000
Bolt
|
01551-08203-000 |
— | ||
| replacement | |||||
|
10
|
10
01551-0820A-000 Bolt |
01551-0820A-000 |
from US $0.96 |
||
|
11
|
11
11651-78F00-000
Bracket, eng mtg lh
|
11651-78F00-000 |
— | ||
|
12
|
12
01550-10453-000
Bolt
|
01550-10453-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-1045B-000 Bolt |
01550-1045B-000 |
from US $1.28 |
||
|
13
|
13
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
14
|
14
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
15
|
15
11659-78F00-000
Stiffener, eng mtg brkt lh
|
11659-78F00-000 |
— | ||
|
16
|
16
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
16
|
16
01550-0820A-000 BoltBolt, funnel bracket |
01550-0820A-000 |
from US $1.12 |
||
|
17
|
17
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
17
|
17
01550-0820A-000 BoltBolt, funnel bracket |
01550-0820A-000 |
from US $1.12 |
||
|
18
|
18
11710-78F00-000 MOUNTING ENGINE REAR |
11710-78F00-000 |
US $84.02 |
||
| replacement | |||||
|
18
|
18
11710-78F01-000 MOUNTING,ENG RR |
11710-78F01-000 |
from US $78.02 |
||
|
19
|
19
01551-10353-000
ボルト
|
01551-10353-000 |
— | ||
| replacement | |||||
|
19
|
19
01551-1035A-000 Bolt |
01551-1035A-000 |
US $19.50 |
||
|
20
|
20
11740-78F00-000
Bracket comp,eng mtg rr,no.1
|
11740-78F00-000 |
— | ||
|
21
|
21
09113-10003-000 BOLT(10X75) |
09113-10003-000 |
US $19.50 |
||
|
22
|
22
01550-10253-000
Bolt
|
01550-10253-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-1025B-000 BoltBolt, rr swgarm bracket, l |
01550-1025B-000 |
from US $1.28 |
||
|
22
|
22
01550-1025A-000 BoltBolt, drive gear |
01550-1025A-000 |
from US $1.06 |
||
|
23
|
23
11749-78F00-000
Bracket,eng mtg rr,no.2
|
11749-78F00-000 |
— | ||
|
24
|
24
01550-10403-000
Bolt
|
01550-10403-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-1040B-000 Bolt |
01550-1040B-000 |
from US $3.65 |
||
|
24
|
24
01550-1040A-000 Bolt |
01550-1040A-000 |
from US $1.28 |
||
|
25
|
25
01550-10853-000
Bolt
|
01550-10853-000 |
— | ||
| replacement | |||||
|
25
|
25
01550-1085A-000 Bolt |
01550-1085A-000 |
from US $1.35 |
||
|
26
|
26
11751-78F00-000 STIFFENER,ENG MTG BRKT RR |
11751-78F00-000 |
US $11.11 |
||
|
27
|
27
09103-10229-000 BOLT(10X32)Bolt, crankshaft (10x32) |
09103-10229-000 |
from US $2.03 |
||
|
28
|
28
11759-78F00-000
PLATE,ENG MTG BRKT RR
|
11759-78F00-000 |
— | ||
