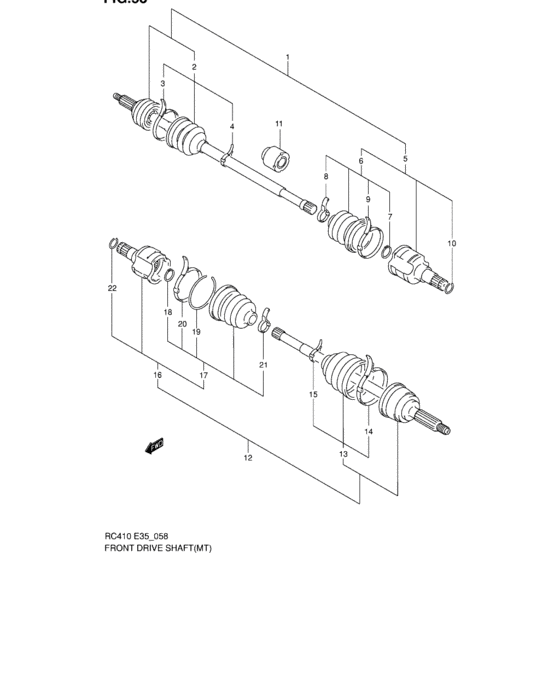

Front axle (MT) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-78F00-000
Shaft assy, front drive rh
|
44101-78F00-000 |
— | ||
|
2
|
2
44118-75F30-000
Boot set,wheel side
|
44118-75F30-000 |
— | ||
|
3
|
3
44122-86010-000 BAND,BOOTClamp, differential side outer boot |
44122-86010-000 |
from US $4.66 |
||
|
4
|
4
44124-86011-000 BAND,BOOT |
44124-86011-000 |
from US $3.20 |
||
|
5
|
5
44117-78F00-000
Joint assy, diff side
|
44117-78F00-000 |
— | ||
|
6
|
6
44119-72F00-000
BOOT SET,DIFF SIDE
|
44119-72F00-000 |
— | ||
| replacement | |||||
|
6
|
6
44119-72F01-000 BOOT SET,DIFF SIDE |
44119-72F01-000 |
from US $98.73 |
||
|
7
|
7
44111-64B90-000 RING,SNAP |
44111-64B90-000 |
from US $1.71 |
||
|
8
|
8
44124-86011-000 BAND,BOOT |
44124-86011-000 |
from US $3.20 |
||
|
9
|
9
44121-60B00-000 BAND,BOOT |
44121-60B00-000 |
US $8.80 |
||
|
10
|
10
09381-24001-000 RING,SNAPRing (od:24,d:1.6) |
09381-24001-000 |
from US $1.60 |
||
|
11
|
11
44411-78F00-000
Damper set
|
44411-78F00-000 |
— | ||
|
12
|
12
44102-78F00-000
Shaft assy, front drive lh
|
44102-78F00-000 |
— | ||
|
13
|
13
44118-75F60-000
BOOT SET,WHEEL SIDE
|
44118-75F60-000 |
— | ||
| replacement | |||||
|
13
|
13
44118-80G11-000 BOOT SET,WHEEL SIDE |
44118-80G11-000 |
from US $99.36 |
||
|
14
|
14
44122-86010-000 BAND,BOOTClamp, differential side outer boot |
44122-86010-000 |
from US $4.66 |
||
|
15
|
15
44124-86011-000 BAND,BOOT |
44124-86011-000 |
from US $3.20 |
||
|
16
|
16
44117-78F10-000
Joint assy, diff side
|
44117-78F10-000 |
— | ||
|
17
|
17
44119-75F60-000
BOOT SET,DIFF SIDE
|
44119-75F60-000 |
— | ||
| replacement | |||||
|
17
|
17
44119-75F61-000 BOOT SET,DIFF SIDE |
44119-75F61-000 |
from US $69.92 |
||
|
18
|
18
44111-78010-000 RING,SNAP |
44111-78010-000 |
from US $2.80 |
||
|
19
|
19
44112-78010-000 CIRCLIP |
44112-78010-000 |
from US $2.48 |
||
|
20
|
20
44122-86010-000 BAND,BOOTClamp, differential side outer boot |
44122-86010-000 |
from US $4.66 |
||
|
21
|
21
44124-86011-000 BAND,BOOT |
44124-86011-000 |
from US $3.20 |
||
|
22
|
22
09381-24001-000 RING,SNAPRing (od:24,d:1.6) |
09381-24001-000 |
from US $1.60 |
||
