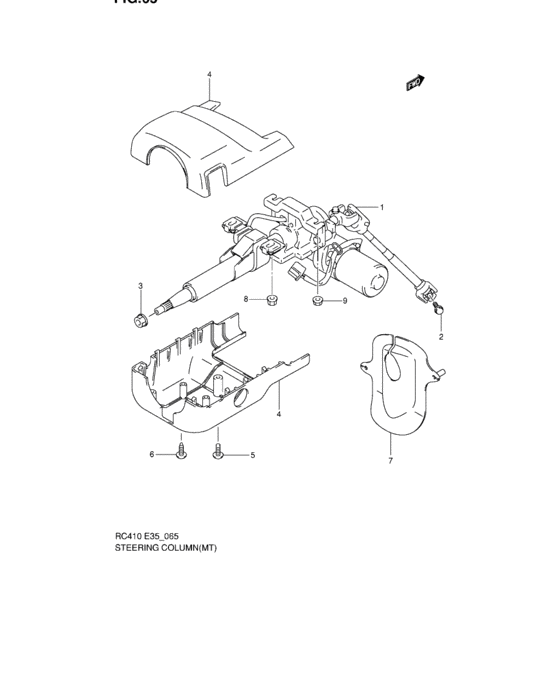

Steering column (MT) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- MT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-78F10-000
Column assy,colps steering
|
48200-78F10-000 |
— | ||
|
2
|
2
09117-08053-000 BOLT(8X30) |
09117-08053-000 |
from US $1.26 |
||
|
3
|
3
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
| replacement | |||||
|
3
|
3
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
4
|
4
48400-78F00-T01
カバーアッシ,ステアリングコラム(グレー)
|
48400-78F00-T01 |
— | ||
| replacement | |||||
|
4
|
4
48400-78F01-T01
COVER ASSY,STRG COLUMN
|
48400-78F01-T01 |
— | ||
|
5
|
5
09136-05030-000 SCREW(5X12) |
09136-05030-000 |
from US $0.52 |
||
|
6
|
6
03211-05123-000
Screw
|
03211-05123-000 |
— | ||
| replacement | |||||
|
6
|
6
03211-0512A-000 SCREW |
03211-0512A-000 |
from US $0.45 |
||
|
7
|
7
48481-78F00-000 COVER,STRG JOINT |
48481-78F00-000 |
US $12.59 |
||
|
8
|
8
09159-08069-000
Nut
|
09159-08069-000 |
— | ||
| replacement | |||||
|
8
|
8
09159-08135-000 NUT |
09159-08135-000 |
from US $0.74 |
||
|
9
|
9
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
