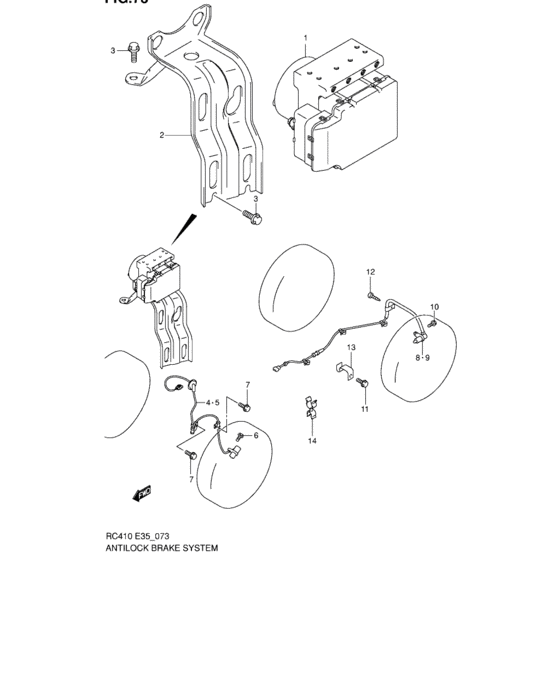

Antilock brake system (W/ABS) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56100-78F00-000 ACTUATOR ASSY,ABS |
56100-78F00-000 |
US $1,888.56 |
||
|
2
|
2
56160-78F00-000
BRACKET,ACTUATOR
|
56160-78F00-000 |
— | ||
|
3
|
3
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
3
|
3
01550-0812A-000 Bolt |
01550-0812A-000 |
from US $0.91 |
||
|
4
|
4
56210-83E00-000
センサ,フロントホイール,ライト
|
56210-83E00-000 |
— | ||
| replacements | |||||
|
4
|
4
56210-83E11-000
SENSOR,FR WHEEL,R
|
56210-83E11-000 |
— | ||
|
4
|
4
56210-83E12-000 SENSOR,FR WHEEL,R |
56210-83E12-000 |
US $163.39 |
||
|
5
|
5
56220-83E00-000
センサ,フロントホイール,レフト
|
56220-83E00-000 |
— | ||
| replacement | |||||
|
5
|
5
56220-83E12-000 SENSOR,FR WHEEL,L |
56220-83E12-000 |
US $163.39 |
||
|
6
|
6
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
6
|
6
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
7
|
7
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
7
|
7
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
8
|
8
56310-78F01-000
センサ,リヤホイール,ライト
|
56310-78F01-000 |
— | ||
| replacements | |||||
|
8
|
8
56310-70H00-000
SENSOR,RR WHEEL,R
|
56310-70H00-000 |
— | ||
|
8
|
8
56310-70H01-000 SENSOR,RR WHEEL,R |
56310-70H01-000 |
US $184 |
||
|
9
|
9
56320-78F01-000
Sensor, rear wheel lh
|
56320-78F01-000 |
— | ||
| replacements | |||||
|
9
|
9
56320-70H00-000
SENSOR,RR WHEEL,L
|
56320-70H00-000 |
— | ||
|
9
|
9
56320-70H01-000 SENSOR,RR WHEEL,L |
56320-70H01-000 |
US $184 |
||
|
10
|
10
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
11
|
11
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
12
|
12
03241-05083-000
Screw
|
03241-05083-000 |
— | ||
| replacement | |||||
|
12
|
12
03241-0508A-000 SCREW |
03241-0508A-000 |
US $0.80 |
||
|
13
|
13
56323-76G00-000 CLAMP,ABS SENSOR |
56323-76G00-000 |
US $4.75 |
||
|
14
|
14
09408-00152-000
CLAMP
|
09408-00152-000 |
— | ||
