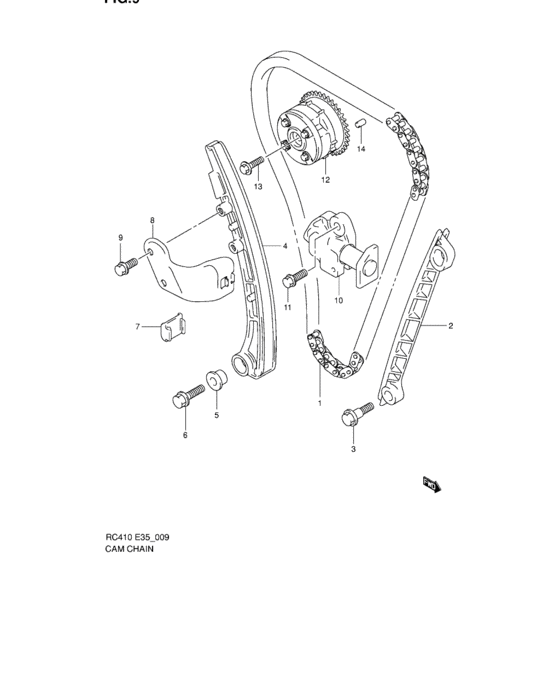

Cam chain (CAM CHAIN) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12761-73G00-000
Chain, timing
|
12761-73G00-000 |
— | ||
| replacement | |||||
|
1
|
1
12761-73G01-000 CHAIN,TIMING |
12761-73G01-000 |
from US $76.76 |
||
|
2
|
2
12771-73G00-000 GUIDE,TIMING CHAIN NO.1 |
12771-73G00-000 |
from US $26.60 |
||
|
3
|
3
12776-85FA0-000 BOLT,TIMING CHAIN GUIDEBolt, timing chain guide |
12776-85FA0-000 |
from US $3.04 |
||
|
4
|
4
12811-73G01-000
Tensioner, chain
|
12811-73G01-000 |
— | ||
| replacements | |||||
|
4
|
4
12811-58J00-000 Tensioner, Timing Chain |
12811-58J00-000 |
from US $81.83 |
||
|
4
|
4
12821-58J10-000 LINK,TENSIONER |
12821-58J10-000 |
from US $7.92 |
||
|
5
|
5
12812-73G10-000 SPACER,TIMING CHAIN TENSIONERSpacer, timing chain tensioner |
12812-73G10-000 |
from US $4.48 |
||
|
6
|
6
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0825B-000 Bolt |
01550-0825B-000 |
from US $1.06 |
||
|
6
|
6
01550-0825A-000 Bolt |
01550-0825A-000 |
from US $0.47 |
||
|
7
|
7
12813-73G00-000 PAD,TIMING CHAIN TENSIONERPad, timing chain tensioner |
12813-73G00-000 |
from US $2.72 |
||
|
8
|
8
12821-78G00-000 LINK,TIMING CHAIN TENSIONER |
12821-78G00-000 |
US $33.60 |
||
|
9
|
9
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
9
|
9
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
10
|
10
12831-73G01-000
Adjuster assy, tensioner
|
12831-73G01-000 |
— | ||
|
11
|
11
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-0620B-000 BoltBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
12
|
12
12740-78G71-000
スプロケットアッシ,カムタイミング
|
12740-78G71-000 |
— | ||
| replacement | |||||
|
12
|
12
12740-78G72-000 SPROCKET ASSY,CAM TIMING |
12740-78G72-000 |
US $683.20 |
||
|
13
|
13
11238-76G00-000 BOLT,10X35 |
11238-76G00-000 |
from US $1.95 |
||
|
14
|
14
09206-05001-000 PIN(3.4X5X10) |
09206-05001-000 |
from US $1.28 |
||
