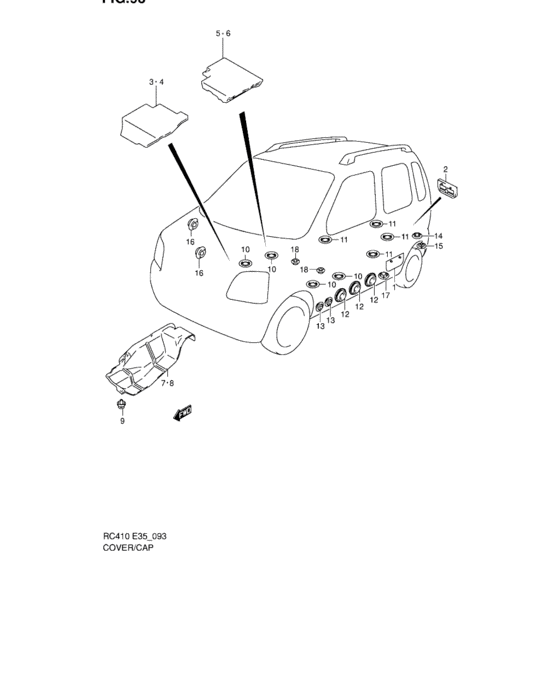

Cover/cap (COVER/CAP) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75470-76G01-000
バルブ,エア,アウトレット
|
75470-76G01-000 |
— | ||
| replacement | |||||
|
1
|
1
75470-74G01-000 VALVE,AIR OUTLET |
75470-74G01-000 |
US $8.24 |
||
|
2
|
2
75470-78F00-000 VALVE,AIR OUTLET |
75470-78F00-000 |
US $11.33 |
||
|
3
|
3
75511-78F00-000 PAD,MAIN FLOOR UPR FR,R |
75511-78F00-000 |
US $64.03 |
||
|
4
|
4
75521-78F00-000 PAD,MAIN FLOOR UPR FR,L |
75521-78F00-000 |
US $64.03 |
||
|
5
|
5
75531-78F00-000
PAD,MAIN FLOOR UPR RR,R
|
75531-78F00-000 |
— | ||
|
6
|
6
75541-78F00-000
PAD,MAIN FLOOR UPR RR,L
|
75541-78F00-000 |
— | ||
|
7
|
7
72381-78F00-000
Cover, splash rh
|
72381-78F00-000 |
— | ||
| replacement | |||||
|
7
|
7
72381-78F01-000 COVER,SPLASH,R |
72381-78F01-000 |
US $24.10 |
||
|
8
|
8
72382-78F00-000
Cover, splash lh
|
72382-78F00-000 |
— | ||
| replacement | |||||
|
8
|
8
72382-78F01-000 COVER,SPLASH,L |
72382-78F01-000 |
US $24.10 |
||
|
9
|
9
09409-07332-000 CLIP |
09409-07332-000 |
from US $1.44 |
||
|
10
|
10
75431-76G00-000 CAP,FL DRAINCap, main floor drain |
75431-76G00-000 |
US $3.24 |
||
|
11
|
11
75431-76G00-000 CAP,FL DRAINCap, main floor drain |
75431-76G00-000 |
US $3.24 |
||
|
12
|
12
09250-30010-000
Grommet
|
09250-30010-000 |
— | ||
| replacement | |||||
|
12
|
12
72999-67H00-000 CAP,OD:40 |
72999-67H00-000 |
from US $4.32 |
||
|
13
|
13
09250-15012-000 CAP(OD:23.5) |
09250-15012-000 |
from US $0.90 |
||
|
14
|
14
09250-15012-000 CAP(OD:23.5) |
09250-15012-000 |
from US $0.90 |
||
|
15
|
15
09250-16013-000 CAP(OD:25) |
09250-16013-000 |
US $11.80 |
||
|
16
|
16
09250-25007-000 CAP(OD:25.0) |
09250-25007-000 |
from US $1.31 |
||
|
17
|
17
09250-25008-000 CAP(OD:31) |
09250-25008-000 |
US $13.20 |
||
|
18
|
18
83919-82000-000 PLUG,DOOR INNER REARCap, floor drain |
83919-82000-000 |
from US $0.74 |
||
