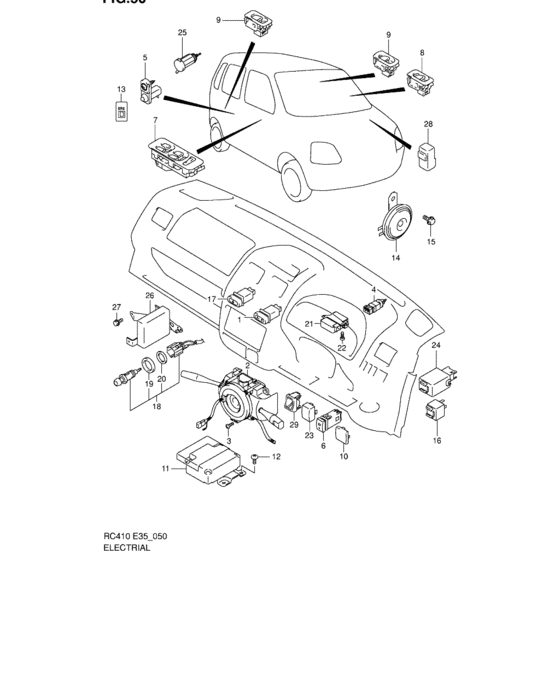

Electrical control (ELECTRICAL CONTROL) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37370-76F10-000
SWITCH ASSY,RR WIPER&WASHER
|
37370-76F10-000 |
— | ||
|
2
|
2
37400-78F00-000
SWITCH ASSY,COMB
|
37400-78F00-000 |
— | ||
|
3
|
3
02112-05123-000
Screw 5x12
|
02112-05123-000 |
— | ||
| replacement | |||||
|
3
|
3
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
4
|
4
37740-76G00-000
スイッチアッシ,ストップランプ
|
37740-76G00-000 |
— | ||
| replacement | |||||
|
4
|
4
37740-80G10-000 SWITCH ASSY,STOP LAMP |
37740-80G10-000 |
from US $12.92 |
||
|
5
|
5
37670-76G00-000 SWITCH ASSY,DOOR |
37670-76G00-000 |
from US $10.06 |
||
|
6
|
6
37860-78F00-000
Switch assy,rr df
|
37860-78F00-000 |
— | ||
|
7
|
7
37990-75F50-T01
Switch assy, power window main
|
37990-75F50-T01 |
— | ||
| replacement | |||||
|
7
|
7
37990-75F51-T01 SWITCH ASSY,P/W MAIN |
37990-75F51-T01 |
US $272.32 |
||
|
8
|
8
37995-75F00-T01 SWITCH ASSY,P/W SUBSwitch assy, power window sub (gray) |
37995-75F00-T01 |
from US $71.78 |
||
|
9
|
9
37995-75F00-T01 SWITCH ASSY,P/W SUBSwitch assy, power window sub (gray) |
37995-75F00-T01 |
from US $71.78 |
||
|
10
|
10
37285-75F20-000 CAP,SW HOLE |
37285-75F20-000 |
US $2.80 |
||
|
11
|
11
38910-78F10-000
Controller assy, air bag
W/SINGLE AIR BAG |
38910-78F10-000 |
— | ||
| replacement | |||||
|
11
|
11
38910-78F11-000
CONTROLLER ASSY,AIR BAG
W/SINGLE AIR BAG |
38910-78F11-000 |
— | ||
|
11
|
11
38910-78F00-000
コントローラアッシ,エアバッグ
W/DUAL AIR BAG |
38910-78F00-000 |
— | ||
| replacement | |||||
|
11
|
11
38910-78F01-000 CONTROLLER ASSY,A/BW/DUAL AIR BAG |
38910-78F01-000 |
US $813.12 |
||
|
12
|
12
09129-06006-000 SCREW(6X18) |
09129-06006-000 |
US $14 |
||
|
13
|
13
38918-76G10-000 LABEL,AIR BAG(MARK D) |
38918-76G10-000 |
US $2.87 |
||
|
14
|
14
38500-65D10-000
HORN ASSY LP
|
38500-65D10-000 |
— | ||
| replacement | |||||
|
14
|
14
38500-65D50-000 HORN ASSY,LOW PITCHED |
38500-65D50-000 |
from US $38.63 |
||
|
15
|
15
01570-08163-000
Bolt
|
01570-08163-000 |
— | ||
| replacement | |||||
|
15
|
15
01570-0816A-000 Bolt |
01570-0816A-000 |
from US $1.12 |
||
|
16
|
16
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way |
38610-76G00-000 |
from US $44.30 |
||
|
17
|
17
37430-64G00-000 SWITCH ASSY,HAZARD WARNING |
37430-64G00-000 |
from US $25.25 |
||
|
18
|
18
39400-84811-000 LIGHTER ASSY,CIGARETTELighter assy, cigarette |
39400-84811-000 |
from US $14.40 |
||
|
19
|
19
39471-84000-000 RIM,CIGAR LIGHTER |
39471-84000-000 |
from US $2.72 |
||
|
20
|
20
09160-23007-000 WASHER(23X34X1) |
09160-23007-000 |
US $15.50 |
||
|
21
|
21
38720-78F00-000
コントローラアッシ,パワーステアリング
|
38720-78F00-000 |
— | ||
| replacement | |||||
|
21
|
21
38720-70H02-000 CONTROLLER ASSY,EPS |
38720-70H02-000 |
US $1,616 |
||
|
22
|
22
02142-05163-000
Bolt
|
02142-05163-000 |
— | ||
| replacements | |||||
|
22
|
22
02142-0516B-000 SCREW |
02142-0516B-000 |
from US $0.96 |
||
|
22
|
22
02142-0516A-000 SCREWScrew |
02142-0516A-000 |
from US $0.76 |
||
|
23
|
23
37285-75F10-000 CAP,OPTION SW HOLE |
37285-75F10-000 |
from US $1.94 |
||
|
24
|
24
38700-76G22-000
Controller, power door lock
|
38700-76G22-000 |
— | ||
| replacement | |||||
|
24
|
24
38700-76G23-000 CONTROLLER,PWR DR LOCK |
38700-76G23-000 |
from US $52.34 |
||
|
25
|
25
39410-76F00-T01
ソケットアッシ(グレー)
|
39410-76F00-T01 |
— | ||
| replacement | |||||
|
25
|
25
39410-76F00-P4Z SOCKET ASSYTerminal, power source |
39410-76F00-P4Z |
from US $23.74 |
||
|
26
|
26
38880-78F20-000
Controller assy, at
AT |
38880-78F20-000 |
— | ||
|
27
|
27
02162-06123-000
Bolt (6x12)
AT |
02162-06123-000 |
— | ||
| replacements | |||||
|
27
|
27
02162-0612B-000 SCREWBolt AT |
02162-0612B-000 |
from US $0.80 |
||
|
27
|
27
02162-0612A-000 SCREWBolt, bracket AT |
02162-0612A-000 |
from US $0.79 |
||
|
28
|
28
38860-72G00-000 RELAY ASSYRelay, air con AT |
38860-72G00-000 |
from US $28.82 |
||
|
29
|
29
37285-78F00-000 CASE,COIN |
37285-78F00-000 |
US $3.97 |
||
