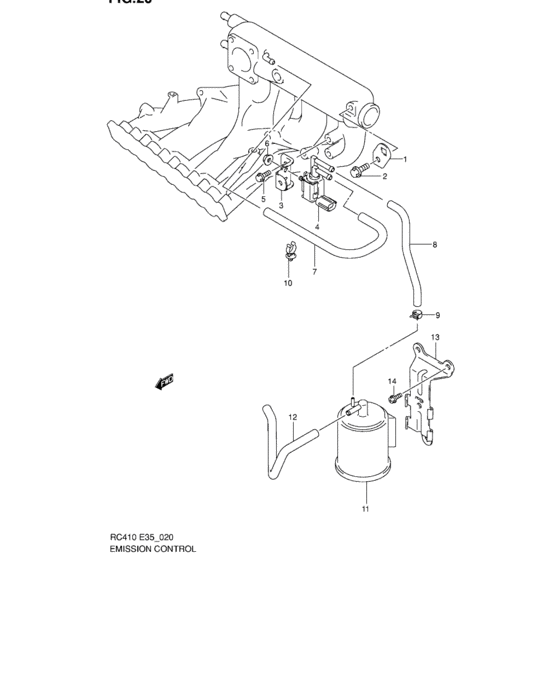

Emission control (EMISSION CONTROL) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18112-78F00-000
Plate,purge clamp
|
18112-78F00-000 |
— | ||
|
2
|
2
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
2
|
2
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
3
|
3
18411-78F00-000
Bracket,purge vsv
|
18411-78F00-000 |
— | ||
|
4
|
4
18117-52G00-000 VALVE ASSY,DUTY FOR PURGEValve assy, evap purge |
18117-52G00-000 |
from US $74.25 |
||
|
5
|
5
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
5
|
5
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
6
|
6
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
7
|
7
18564-78F00-000
Hose
|
18564-78F00-000 |
— | ||
| replacement | |||||
|
7
|
7
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum |
09355-54115-600 |
from US $7.20 |
||
|
8
|
8
18565-78F00-000
Hose,vsv to cstr
|
18565-78F00-000 |
— | ||
|
9
|
9
09401-06405-000 CLIP |
09401-06405-000 |
from US $1.12 |
||
|
10
|
10
09403-12314-000 CLAMP |
09403-12314-000 |
from US $0.59 |
||
|
11
|
11
18560-75F00-000 CANISTER |
18560-75F00-000 |
US $64.77 |
||
|
12
|
12
18567-78F00-000
HOSE,CANISTER INLET
|
18567-78F00-000 |
— | ||
|
13
|
13
18571-78F00-000 BRACKET,CANISTER |
18571-78F00-000 |
US $7.99 |
||
|
14
|
14
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
14
|
14
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
