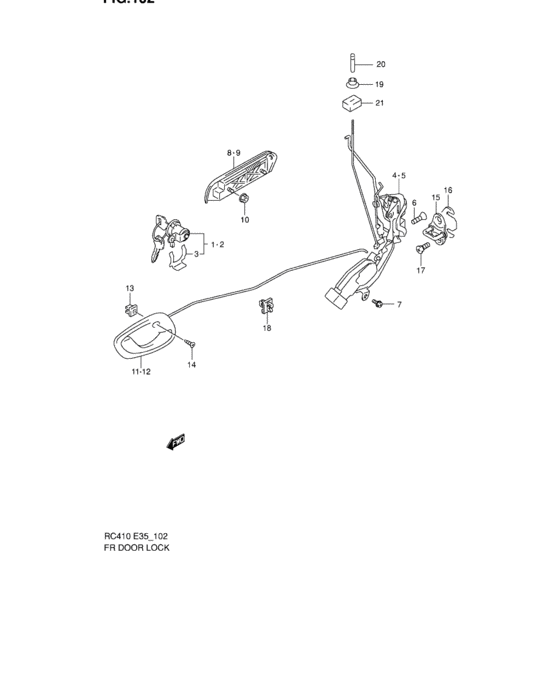

Front door lock (FRONT DOOR LOCK) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82270-76810-000 CYLINDER,FR DR LOCK,R |
82270-76810-000 |
from US $45.63 |
||
|
2
|
2
82280-76810-000 CYLINDER,FR DR LOCK,L |
82280-76810-000 |
US $45.63 |
||
|
3
|
3
82291-81A00-000 RETAINER,FR DR CYLINDER |
82291-81A00-000 |
from US $2.14 |
||
|
4
|
4
82201-76F50-000
ラッチアッシ,フロントドア,ライト
|
82201-76F50-000 |
— | ||
| replacement | |||||
|
4
|
4
82201-76F53-000
LATCH ASSY,FR DR,R
|
82201-76F53-000 |
— | ||
|
5
|
5
82202-76F40-000
ラッチアッシ,フロントドア,レフト
|
82202-76F40-000 |
— | ||
| replacement | |||||
|
5
|
5
82202-76F41-000 LATCH ASSY,FR DR,L |
82202-76F41-000 |
US $235.52 |
||
|
6
|
6
09137-06025-000 SCREW(6X16) |
09137-06025-000 |
from US $1.19 |
||
|
7
|
7
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
7
|
7
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
7
|
7
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.96 |
||
|
8
|
8
82801-81A01-5PK
HANDLE,SIDE DOOR OUT,R
|
82801-81A01-5PK |
— | ||
| replacements | |||||
|
8
|
8
82801-81A02-5PK
HANDLE ASSY,FR DR OUT,R(BLACK)
|
82801-81A02-5PK |
— | ||
|
8
|
8
82801-81A03-5PK
HANDLE ASSY,FR DR OUT,R
|
82801-81A03-5PK |
— | ||
|
8
|
8
82801-81A04-5PK Handle Assy,fr Dr Out,r(Black) |
82801-81A04-5PK |
from US $14.72 |
||
|
9
|
9
82802-81A01-5PK
HANDLE,SIDE DOOR OUT,L
|
82802-81A01-5PK |
— | ||
| replacements | |||||
|
9
|
9
82802-81A02-5PK
HANDLE ASSY,FR DR OUT,L(BLACK)
|
82802-81A02-5PK |
— | ||
|
9
|
9
82802-81A03-5PK
HANDLE ASSY,FR DR OUT,L
|
82802-81A03-5PK |
— | ||
|
9
|
9
82802-81A04-5PK Handle Assy,fr Dr Out,l(Black) |
82802-81A04-5PK |
from US $13.34 |
||
|
10
|
10
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
11
|
11
83101-76F00-T01
HANDLE,FR DR INSIDE,R(GRAY)
|
83101-76F00-T01 |
— | ||
| replacement | |||||
|
11
|
11
83101-76F01-T01 HANDLE,FR DR INSIDE,R |
83101-76F01-T01 |
US $28.70 |
||
|
12
|
12
83102-76F00-T01 HANDLE,FR DR INSIDE,L(GRAY) |
83102-76F00-T01 |
US $28.70 |
||
|
13
|
13
83119-60B00-000 NUT,FR DOOR INSIDE HANDLE |
83119-60B00-000 |
from US $1.06 |
||
|
14
|
14
03521-05163-000
Screw
|
03521-05163-000 |
— | ||
| replacement | |||||
|
14
|
14
03521-0516A-000 SCREW |
03521-0516A-000 |
US $7.70 |
||
|
15
|
15
82610-60D00-000 STRIKER,DOOR LATCH |
82610-60D00-000 |
from US $9.68 |
||
|
16
|
16
78199-78000-000 SPACER,DOOR LOCK STRIKER |
78199-78000-000 |
from US $0.68 |
||
|
17
|
17
09137-08006-000
Screw
|
09137-08006-000 |
— | ||
| replacements | |||||
|
17
|
17
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
from US $1.40 |
||
|
17
|
17
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.99 |
||
|
18
|
18
83271-60D00-000 CLIP |
83271-60D00-000 |
from US $1.80 |
||
|
19
|
19
82991-76G00-T01 CAP,DR INSIDE LOCK KNOBCap, door inside lock knob (gray) |
82991-76G00-T01 |
US $2.50 |
||
|
20
|
20
82982-65D00-T01 KNOB,SIDE DR INS LOCKKnob, inside lock (gray) |
82982-65D00-T01 |
from US $2.24 |
||
|
21
|
21
83211-76G00-000 PAD SIDE DOOR INSIDE LOCK |
83211-76G00-000 |
US $1.88 |
||
