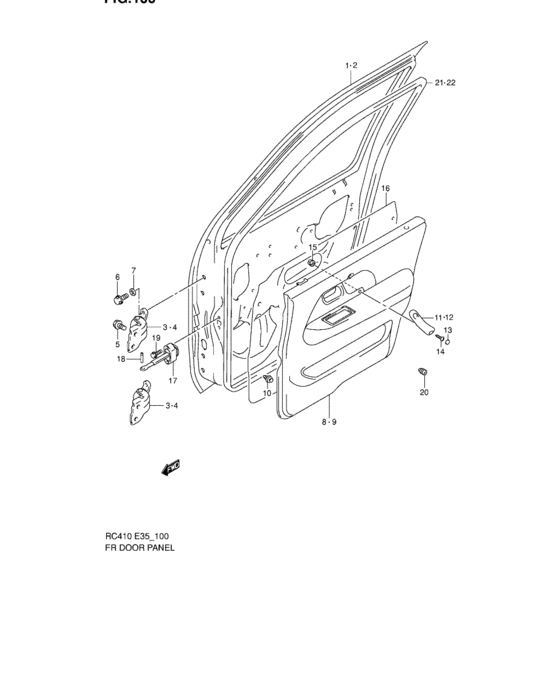

Front door panel (FRONT DOOR PANEL) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-78F00-000
Panel assy, front door rh
|
68001-78F00-000 |
— | ||
| replacement | |||||
|
1
|
1
68001-78F02-000 PANEL ASSY,FRONT DOOR,R |
68001-78F02-000 |
US $587.84 |
||
|
2
|
2
68002-78F00-000
パネルアッシ,フロントドア,レフト
|
68002-78F00-000 |
— | ||
| replacement | |||||
|
2
|
2
68002-78F01-000 PANEL ASSY,FRONT DOOR,L |
68002-78F01-000 |
US $587.84 |
||
|
3
|
3
69310-60G01-000 HINGE,FR DR NO.1UPPER RH,LOWER LH |
69310-60G01-000 |
from US $26.96 |
||
|
4
|
4
69320-60G01-000 HINGE,FR DR NO.2UPPER LH,LOWER RH |
69320-60G01-000 |
from US $38.88 |
||
|
5
|
5
01551-08203-000
Bolt
|
01551-08203-000 |
— | ||
| replacement | |||||
|
5
|
5
01551-0820A-000 Bolt |
01551-0820A-000 |
from US $0.96 |
||
|
6
|
6
69491-65D00-000
Bolt
|
69491-65D00-000 |
— | ||
| replacement | |||||
|
6
|
6
09103-08389-000 BOLT(8X24) |
09103-08389-000 |
US $17.30 |
||
|
7
|
7
69480-65D00-000
Washer
|
69480-65D00-000 |
— | ||
|
8
|
8
83710-76F10-N0P
トリム,フロントドア,ライト
|
83710-76F10-N0P |
— | ||
| replacement | |||||
|
8
|
8
83710-76F11-N0P
Trim comp,front door,r
|
83710-76F11-N0P |
— | ||
|
9
|
9
83720-76F10-N0P
トリム,フロントドア,レフト
|
83720-76F10-N0P |
— | ||
| replacement | |||||
|
9
|
9
83720-76F11-N0P
Trim comp,front door,l
|
83720-76F11-N0P |
— | ||
|
10
|
10
09409-08320-000 CLIP |
09409-08320-000 |
from US $1.15 |
||
|
11
|
11
84461-81A01-T01
GRIP,FR DR,R
|
84461-81A01-T01 |
— | ||
|
12
|
12
84462-81A01-T01
GRIP,FR DR,L
|
84462-81A01-T01 |
— | ||
|
13
|
13
84463-81A01-T01
Cap, front door grip (gray)
|
84463-81A01-T01 |
— | ||
| replacement | |||||
|
13
|
13
84463-81A50-T01 CAP,FR DR GRIP |
84463-81A50-T01 |
US $2.08 |
||
|
14
|
14
03241-06303-000
Screw
|
03241-06303-000 |
— | ||
| replacement | |||||
|
14
|
14
03241-0630A-000 SCREW |
03241-0630A-000 |
US $9.60 |
||
|
15
|
15
09148-06007-000 NUT |
09148-06007-000 |
from US $0.91 |
||
|
16
|
16
83911-60X51-000
Cover, door sealing (600x1200)
CUT AS REQUIRED |
83911-60X51-000 |
— | ||
| replacement | |||||
|
16
|
16
83911-60X52-000 COVER,DR SEALINGCUT AS REQUIRED |
83911-60X52-000 |
US $6.06 |
||
|
17
|
17
81810-65D00-000 STOP,FRONT DOOR OPEN |
81810-65D00-000 |
from US $32.36 |
||
|
18
|
18
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY |
81831-70B00-000 |
from US $1.60 |
||
|
19
|
19
09122-86004-000 SCREW(6X20) |
09122-86004-000 |
US $11.80 |
||
|
20
|
20
82711-56B00-000 STOPPER,FR DOORStopper, fr dr lower |
82711-56B00-000 |
from US $2.88 |
||
|
21
|
21
84641-76F01-000 WEATHERSTRIP,FR DR OPNG,R |
84641-76F01-000 |
US $87.22 |
||
|
22
|
22
84651-76F01-000 WEATHERSTRIP,FR DR OPNG,L |
84651-76F01-000 |
US $87.22 |
||
