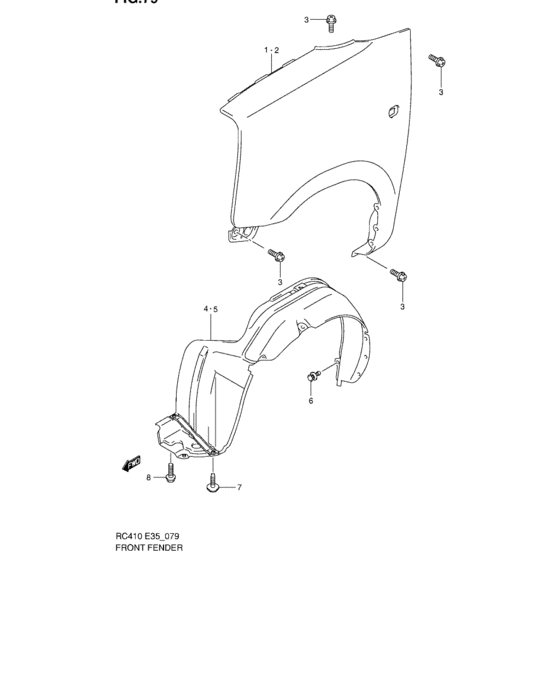

Front fender (FRONT FENDER) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57600-74820-000
Panel set, front fender rh
|
57600-74820-000 |
— | ||
| replacement | |||||
|
1
|
1
57611-78F00-000 PANEL,FR FENDER,R |
57611-78F00-000 |
US $173.70 |
||
|
2
|
2
57700-74820-000
Panel set, front fender lh
|
57700-74820-000 |
— | ||
| replacement | |||||
|
2
|
2
57711-78F00-000 PANEL,FR FENDER,L |
57711-78F00-000 |
US $173.70 |
||
|
3
|
3
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
3
|
3
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
4
|
4
72430-78F00-000 LINING,FR FENDER,R |
72430-78F00-000 |
US $64.77 |
||
|
5
|
5
72440-78F00-000 LINING,FR FENDER,L |
72440-78F00-000 |
US $64.77 |
||
|
6
|
6
09409-07332-000 CLIP |
09409-07332-000 |
from US $1.44 |
||
|
7
|
7
09136-05057-000
Screw, fr turnsignal (5x20)
|
09136-05057-000 |
— | ||
| replacement | |||||
|
7
|
7
09136-05068-000 SCREW(5X20) |
09136-05068-000 |
from US $0.96 |
||
|
8
|
8
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
8
|
8
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
