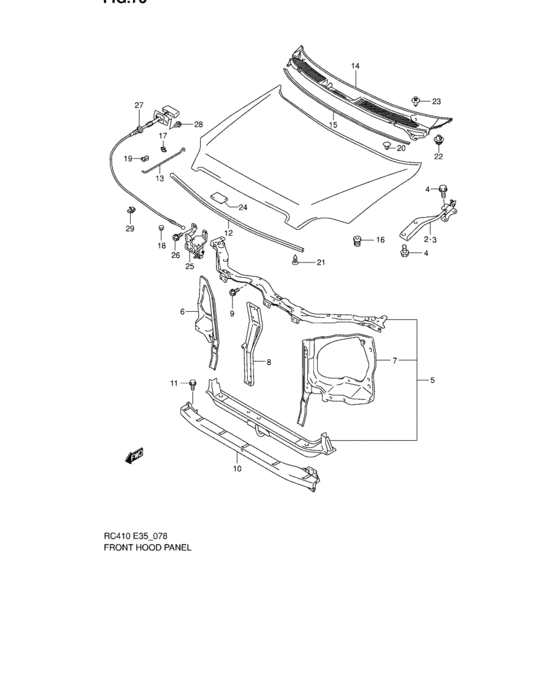

Front hood panel (FRONT HOOD PANEL) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57300-78F00-000
PANEL,FRONT HOOD
|
57300-78F00-000 |
— | ||
|
2
|
2
57410-78F00-000 HINGE,FR HOOD,R |
57410-78F00-000 |
US $24.10 |
||
|
3
|
3
57420-78F00-000 HINGE,FR HOOD,L |
57420-78F00-000 |
US $24.10 |
||
|
4
|
4
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
4
|
4
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
5
|
5
58110-78F01-000
Panel,front end
|
58110-78F01-000 |
— | ||
|
6
|
6
58111-78F00-000 PANEL,LAMP SUPPORT,R |
58111-78F00-000 |
US $41.95 |
||
|
7
|
7
58131-78F00-000 PANEL,LAMP SUPPORT,L |
58131-78F00-000 |
US $46.37 |
||
|
8
|
8
58240-78F00-000 BRACE,HOOD LOCK MEMBER |
58240-78F00-000 |
US $37.54 |
||
|
9
|
9
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
9
|
9
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
10
|
10
58260-78F00-000 MEMBER,FR BUMPER |
58260-78F00-000 |
US $65.50 |
||
|
11
|
11
01551-08163-000
Bolt
|
01551-08163-000 |
— | ||
| replacements | |||||
|
11
|
11
01551-0816C-000 Bolt |
01551-0816C-000 |
from US $0.96 |
||
|
11
|
11
01551-0816A-000
ボルト
|
01551-0816A-000 |
— | ||
|
12
|
12
72151-78F00-000 SEAL,HOOD FR |
72151-78F00-000 |
US $28.52 |
||
|
13
|
13
72311-83E00-000
プロップ,フロントフード
|
72311-83E00-000 |
— | ||
| replacement | |||||
|
13
|
13
72311-78F00-000 PROP,FRONT HOOD |
72311-78F00-000 |
US $11.67 |
||
|
14
|
14
72331-78F00-5PK
ガーニッシュ,カウリングトップ(ブラック)
|
72331-78F00-5PK |
— | ||
| replacement | |||||
|
14
|
14
72331-78F01-5PK GARNISH,COWL TOP |
72331-78F01-5PK |
US $107.82 |
||
|
15
|
15
72341-83E00-000
シール,フード,リヤ
|
72341-83E00-000 |
— | ||
|
16
|
16
72372-82000-000 CUSHION,BACK DR SIDECushion |
72372-82000-000 |
from US $2.24 |
||
|
17
|
17
09209-09007-000 LINKAGEConnector |
09209-09007-000 |
from US $1.78 |
||
|
18
|
18
09321-10023-000 CUSHION |
09321-10023-000 |
from US $2.09 |
||
|
19
|
19
09403-07311-000 CLAMP |
09403-07311-000 |
from US $1.31 |
||
|
20
|
20
09409-10304-5ES CLIP(BLACK) |
09409-10304-5ES |
from US $0.88 |
||
|
21
|
21
09409-10304-5ES CLIP(BLACK) |
09409-10304-5ES |
from US $0.88 |
||
|
22
|
22
77553-65D00-000 CLIP,SPLASH GUARD |
77553-65D00-000 |
from US $2.08 |
||
|
23
|
23
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
from US $1.40 |
||
|
24
|
24
72152-78F00-000 CUSHION,FR HOOD UPPER |
72152-78F00-000 |
US $2.29 |
||
|
25
|
25
82110-78F00-000 LATCH,HOOD |
82110-78F00-000 |
US $60.80 |
||
|
26
|
26
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
26
|
26
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
27
|
27
82160-83E10-000 CABLE,HOOD LATCH RELEASE |
82160-83E10-000 |
US $25.39 |
||
|
28
|
28
09409-07308-5PK CLIP(BLACK) |
09409-07308-5PK |
from US $1.40 |
||
|
29
|
29
09403-04401-000 CLAMP |
09403-04401-000 |
from US $2.81 |
||
