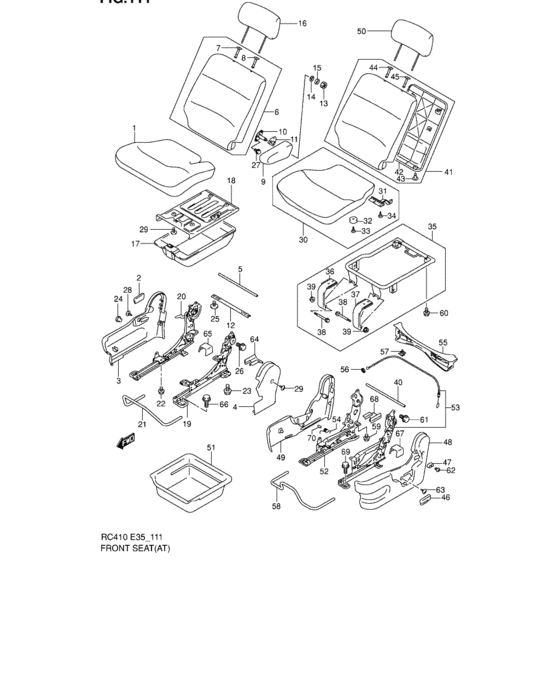

Front seat (AT) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85101-78F30-N0N
Cushion assy,fr,r
|
85101-78F30-N0N |
— | ||
|
2
|
2
85211-76G00-V12
Knob, reclining rh (gray)
|
85211-76G00-V12 |
— | ||
| replacement | |||||
|
2
|
2
85211-75H00-P4Z KNOB,RECL,R |
85211-75H00-P4Z |
from US $2.99 |
||
|
3
|
3
85221-76F00-V12
カバー,リクライニングアウトサイド,ライト(グレー)
|
85221-76F00-V12 |
— | ||
| replacement | |||||
|
3
|
3
85221-76F02-V12
COVER,RECL OUTSIDE,R
|
85221-76F02-V12 |
— | ||
|
4
|
4
85241-78F30-V12
Cover, reclining inside rh
|
85241-78F30-V12 |
— | ||
| replacement | |||||
|
4
|
4
85241-78F32-V12
COVER,RECL INSIDE,R
|
85241-78F32-V12 |
— | ||
|
5
|
5
85250-78F00-000 ROD,FR ADJUSTER |
85250-78F00-000 |
US $12.99 |
||
|
6
|
6
85301-78F30-N0N
BACK ASSY,FR
|
85301-78F30-N0N |
— | ||
|
7
|
7
85341-81A00-T01 GUIDE,HEADRESTRAINT |
85341-81A00-T01 |
US $6.04 |
||
|
8
|
8
85840-81A00-T01
Guide, headrestraint (gray)
|
85840-81A00-T01 |
— | ||
| replacement | |||||
|
8
|
8
85840-81A10-T01 GUIDE,HEADRESTRAINT |
85840-81A10-T01 |
US $13.73 |
||
|
9
|
9
85501-78F31-W57
ARMREST ASSY,FR,R
|
85501-78F31-W57 |
— | ||
|
10
|
10
85540-76F30-000 HINGE,FR ARMREST |
85540-76F30-000 |
US $94.94 |
||
|
11
|
11
85571-74FM0-000
COVER,FR ARMREST HINGE
|
85571-74FM0-000 |
— | ||
|
12
|
12
85770-78F00-000
MEMBER,RR
|
85770-78F00-000 |
— | ||
|
13
|
13
08319-31087-000 NUT |
08319-31087-000 |
from US $1.67 |
||
|
14
|
14
87828-55F00-000
カラー,アームレスト
|
87828-55F00-000 |
— | ||
| replacement | |||||
|
14
|
14
85551-76F30-000 NUT,ARMREST |
85551-76F30-000 |
US $9.60 |
||
|
15
|
15
09162-12006-000 WASHER,LOCK |
09162-12006-000 |
from US $1.28 |
||
|
16
|
16
86401-76F00-W57
ヘッドレストレイントアッシ
|
86401-76F00-W57 |
— | ||
| replacement | |||||
|
16
|
16
86401-76F01-W57
Headrestraint assy
|
86401-76F01-W57 |
— | ||
|
17
|
17
86510-76F01-000 TRAY ASSY,FR UNDER |
86510-76F01-000 |
US $54.46 |
||
|
18
|
18
86521-74G00-000 BRACKET,UNDER TRAY |
86521-74G00-000 |
US $34.41 |
||
|
19
|
19
86601-78F30-000
アジャスタアッシ,フロントインサイド,ライト
|
86601-78F30-000 |
— | ||
| replacement | |||||
|
19
|
19
86601-78F32-000
ADJUSTER ASSY,FR INSIDE,R
|
86601-78F32-000 |
— | ||
|
20
|
20
86603-78F10-000
アジャスタアッシ,フロントアウトサイド,ライト
|
86603-78F10-000 |
— | ||
| replacement | |||||
|
20
|
20
86603-78F11-000 ADJUSTER ASSY,FR OUTSIDE,R |
86603-78F11-000 |
US $268.64 |
||
|
21
|
21
86691-78F30-000
HANDLE,FR ADJ,R
|
86691-78F30-000 |
— | ||
|
22
|
22
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
22
|
22
01550-0812A-000 Bolt |
01550-0812A-000 |
from US $0.91 |
||
|
23
|
23
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
23
|
23
01550-0812A-000 Bolt |
01550-0812A-000 |
from US $0.91 |
||
|
24
|
24
85213-78F00-V12
キャップ,リクライニング,アウトサイド(グレー)
|
85213-78F00-V12 |
— | ||
|
25
|
25
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0816B-000 Bolt |
01550-0816B-000 |
from US $0.91 |
||
|
25
|
25
01550-0816A-000 BoltBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
26
|
26
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
26
|
26
01550-1020A-000 BoltBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
27
|
27
01570-06123-000
Bolt
|
01570-06123-000 |
— | ||
| replacements | |||||
|
27
|
27
01570-0612B-000 BoltBolt, upper |
01570-0612B-000 |
US $0.96 |
||
|
27
|
27
01570-0612A-000 BoltBolt |
01570-0612A-000 |
from US $0.96 |
||
|
28
|
28
03242-05103-000
Screw
|
03242-05103-000 |
— | ||
| replacements | |||||
|
28
|
28
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
28
|
28
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
29
|
29
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
29
|
29
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
30
|
30
85102-78FA0-N0N
Cushion assy,fr,l
|
85102-78FA0-N0N |
— | ||
|
31
|
31
85970-75F00-000 LOCK,FR CUSH |
85970-75F00-000 |
US $45.60 |
||
|
32
|
32
87196-83000-000 CUSHION |
87196-83000-000 |
US $3.09 |
||
|
33
|
33
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
33
|
33
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
34
|
34
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
34
|
34
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
35
|
35
85760-78FA0-000
MEMBER ASSY,FR CONV,L
|
85760-78FA0-000 |
— | ||
|
36
|
36
85761-76FA0-000
メール,メンバ,インサイド
|
85761-76FA0-000 |
— | ||
| replacement | |||||
|
36
|
36
85762-76FA0-000 MAIL,MBR OUT |
85762-76FA0-000 |
US $14.83 |
||
|
37
|
37
85762-76FA0-000 MAIL,MBR OUT |
85762-76FA0-000 |
US $14.83 |
||
|
38
|
38
85763-76FA0-000
Bolt,member hinge
|
85763-76FA0-000 |
— | ||
| replacement | |||||
|
38
|
38
85763-76FA1-000 BOLT,MEMBER HINGE |
85763-76FA1-000 |
US $3.42 |
||
|
39
|
39
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
39
|
39
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
40
|
40
85250-78FA0-000
ROD,FR ADJUSTER
|
85250-78FA0-000 |
— | ||
|
41
|
41
85302-78FA0-N0N
Back assy,fr,l
|
85302-78FA0-N0N |
— | ||
|
42
|
42
85890-76FA0-V12
Board,fr back(gray)
|
85890-76FA0-V12 |
— | ||
| replacement | |||||
|
42
|
42
85890-76FA0-P4Z BOARD,FR BACK |
85890-76FA0-P4Z |
US $41.22 |
||
|
43
|
43
85891-76FA0-V12 CLIP,BOARD |
85891-76FA0-V12 |
US $2.69 |
||
|
44
|
44
85341-81A00-T01 GUIDE,HEADRESTRAINT |
85341-81A00-T01 |
US $6.04 |
||
|
45
|
45
85840-81A00-T01
Guide, headrestraint (gray)
|
85840-81A00-T01 |
— | ||
| replacement | |||||
|
45
|
45
85840-81A10-T01 GUIDE,HEADRESTRAINT |
85840-81A10-T01 |
US $13.73 |
||
|
46
|
46
85711-76G00-V12
Knob, reclining lh (gray)
|
85711-76G00-V12 |
— | ||
| replacement | |||||
|
46
|
46
85711-75H00-P4Z KNOB,RECL,L |
85711-75H00-P4Z |
from US $2.99 |
||
|
47
|
47
85713-76FA0-V12
Knob,recl stopper
|
85713-76FA0-V12 |
— | ||
|
48
|
48
85721-78FA0-V12
Cover, reclining outside lh
|
85721-78FA0-V12 |
— | ||
| replacement | |||||
|
48
|
48
85721-78FA2-V12
COVER RECL OUTSIDR,L
|
85721-78FA2-V12 |
— | ||
|
49
|
49
85741-78FA0-V12
Cover, reclining inside lh
|
85741-78FA0-V12 |
— | ||
| replacement | |||||
|
49
|
49
85741-78FA2-V12
COVER,RECL INSIDE,L
|
85741-78FA2-V12 |
— | ||
|
50
|
50
86401-76F00-W57
ヘッドレストレイントアッシ
|
86401-76F00-W57 |
— | ||
| replacement | |||||
|
50
|
50
86401-76F01-W57
Headrestraint assy
|
86401-76F01-W57 |
— | ||
|
51
|
51
86510-78FA0-000 BOX ASSY,CONV |
86510-78FA0-000 |
US $75.81 |
||
|
52
|
52
86602-78FA0-000
アジャスタアッシ,フロントインサイド,レフト
|
86602-78FA0-000 |
— | ||
| replacement | |||||
|
52
|
52
86602-78FA1-000 ADJUSTER ASSY,FR INSIDE,L |
86602-78FA1-000 |
US $287.04 |
||
|
53
|
53
86604-78FA0-000 ADJUSTER ASSY,FR OUTSIDE,L |
86604-78FA0-000 |
US $351.44 |
||
|
54
|
54
86856-76FA0-000 SPRING,FR BUCKLE |
86856-76FA0-000 |
US $4.20 |
||
|
55
|
55
85785-78FA0-V12
Cover,recl cable,rr
|
85785-78FA0-V12 |
— | ||
|
56
|
56
85752-78FA0-000
NUT,ADJUSTER CABLE
|
85752-78FA0-000 |
— | ||
|
57
|
57
15911-63B00-000
Clamp, Cable
|
15911-63B00-000 |
— | ||
| replacement | |||||
|
57
|
57
75411-76G00-000 Clamp, Cable |
75411-76G00-000 |
US $2.39 |
||
|
58
|
58
86891-78FA0-000 HANDLE,FR ADJUSTER,L |
86891-78FA0-000 |
US $34.41 |
||
|
59
|
59
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
59
|
59
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
59
|
59
01550-0812A-000 Bolt |
01550-0812A-000 |
from US $0.91 |
||
|
60
|
60
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
60
|
60
01550-0816B-000 Bolt |
01550-0816B-000 |
from US $0.91 |
||
|
60
|
60
01550-0816A-000 BoltBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
61
|
61
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
61
|
61
01550-1020A-000 BoltBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
62
|
62
03211-05083-000
スクリュ
|
03211-05083-000 |
— | ||
| replacement | |||||
|
62
|
62
03211-0508B-000 SCREW |
03211-0508B-000 |
US $9.90 |
||
|
63
|
63
03242-05103-000
Screw
|
03242-05103-000 |
— | ||
| replacements | |||||
|
63
|
63
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
63
|
63
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
64
|
64
85495-76G00-T01 COVER,RR INSIDE,RRH SEAT |
85495-76G00-T01 |
US $7.76 |
||
|
65
|
65
85496-76F00-T01 COVER,RR OUTSIDERH SEAT |
85496-76F00-T01 |
US $5.23 |
||
|
66
|
66
01551-10253-000
Bolt
RH SEAT |
01551-10253-000 |
— | ||
| replacement | |||||
|
66
|
66
01551-1025A-000 BoltRH SEAT |
01551-1025A-000 |
US $1.12 |
||
|
67
|
67
85496-76F00-T01 COVER,RR OUTSIDELH SEAT |
85496-76F00-T01 |
US $5.23 |
||
|
68
|
68
85995-76G00-T01 COVER,RR INSIDE,LLH SEAT |
85995-76G00-T01 |
US $7.76 |
||
|
69
|
69
01551-10253-000
Bolt
LH SEAT |
01551-10253-000 |
— | ||
| replacement | |||||
|
69
|
69
01551-1025A-000 BoltLH SEAT |
01551-1025A-000 |
US $1.12 |
||
|
70
|
70
86857-76FA0-000 COLLAR,FR BUCKLE SPRING |
86857-76FA0-000 |
US $3.13 |
||
