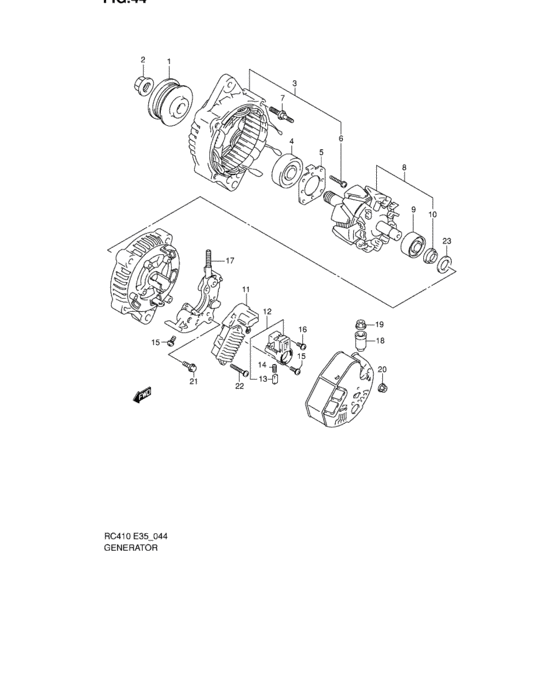

Generator (GENERATOR) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
31400-78F00-000
ジェネレータアッシ
|
31400-78F00-000 |
— | ||
| replacement | |||||
|
|
31400-78F11-000 GENERATOR ASSY |
31400-78F11-000 |
US $823.68 |
||
|
1
|
1
31171-75F00-000
プーリ
|
31171-75F00-000 |
— | ||
| replacement | |||||
|
1
|
1
31171-60G10-000 PULLEY |
31171-60G10-000 |
from US $27.59 |
||
|
2
|
2
31775-86510-000 NUT |
31775-86510-000 |
from US $1.91 |
||
|
3
|
3
31580-60G12-000
Frame assy,drive end
|
31580-60G12-000 |
— | ||
| replacement | |||||
|
3
|
3
31580-60G30-000 FRAME ASSY,DRIVE END |
31580-60G30-000 |
US $347.76 |
||
|
4
|
4
31582-75F00-000
Bearing
|
31582-75F00-000 |
— | ||
| replacement | |||||
|
4
|
4
31582-60G14-000 BEARING,BALL |
31582-60G14-000 |
from US $29.05 |
||
|
5
|
5
31585-82111-000 RETAINER,BEARING |
31585-82111-000 |
from US $2.88 |
||
|
6
|
6
02112-04163-000
Screw
|
02112-04163-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-0416A-000 SCREW |
02112-0416A-000 |
from US $0.68 |
||
|
7
|
7
31587-82110-000 Bolt |
31587-82110-000 |
from US $6.95 |
||
|
8
|
8
31710-60G12-000
Rotor assy
|
31710-60G12-000 |
— | ||
| replacement | |||||
|
8
|
8
31710-60G30-000 ROTOR ASSY |
31710-60G30-000 |
US $397.44 |
||
|
9
|
9
31612-75F00-000
Bearing
|
31612-75F00-000 |
— | ||
| replacement | |||||
|
9
|
9
31612-60G14-000 BEARING |
31612-60G14-000 |
from US $24.14 |
||
|
10
|
10
31613-82610-000 COVER,BEARING |
31613-82610-000 |
from US $1.91 |
||
|
11
|
11
32500-78F00-000
REGULATOR ASSY
|
32500-78F00-000 |
— | ||
|
12
|
12
31656-60G10-000 HOLDER ASSY,BRUSH |
31656-60G10-000 |
from US $25.90 |
||
|
13
|
13
31631-82610-000 BRUSH |
31631-82610-000 |
from US $4.55 |
||
|
14
|
14
31635-82610-000 SPRING,BRUSH |
31635-82610-000 |
from US $0.38 |
||
|
15
|
15
02112-04063-000
Screw
|
02112-04063-000 |
— | ||
| replacement | |||||
|
15
|
15
02112-0406B-000 SCREW |
02112-0406B-000 |
from US $0.76 |
||
|
16
|
16
31517-75F00-000 SCREW |
31517-75F00-000 |
from US $1.04 |
||
|
17
|
17
31621-75F00-000 HOLDER ASSY,RECTIFIER |
31621-75F00-000 |
from US $179.51 |
||
|
18
|
18
31514-82610-000 INSULATOR,TERMINAL |
31514-82610-000 |
from US $1.06 |
||
|
19
|
19
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
19
|
19
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
20
|
20
08316-10053-000
Nut
|
08316-10053-000 |
— | ||
| replacement | |||||
|
20
|
20
08316-1005A-000 NUT |
08316-1005A-000 |
from US $0.96 |
||
|
21
|
21
31599-75F00-000 Bolt |
31599-75F00-000 |
from US $3.17 |
||
|
22
|
22
02112-74253-000
SCREW
|
02112-74253-000 |
— | ||
| replacement | |||||
|
22
|
22
32642-80G10-000 SCREW |
32642-80G10-000 |
US $1.69 |
||
|
23
|
23
31615-60G10-000 WASHER |
31615-60G10-000 |
from US $3.65 |
||
