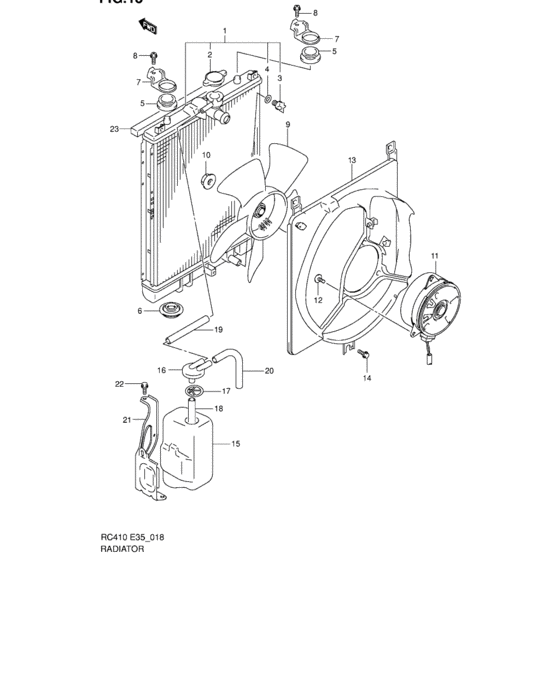

Radiator (RADIATOR) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-78F00-000 RADIATOR ASSY |
17700-78F00-000 |
US $732.80 |
||
|
2
|
2
17920-75F00-000 CAP,RADIATOR |
17920-75F00-000 |
from US $13.83 |
||
|
3
|
3
17751-61A00-000 PLUG,DRAIN |
17751-61A00-000 |
from US $4.80 |
||
|
4
|
4
17759-72010-000 O-RING |
17759-72010-000 |
from US $1.52 |
||
|
5
|
5
17879-75F00-000 MOUNT,RDTR SUPPORT UPR |
17879-75F00-000 |
from US $4.07 |
||
|
6
|
6
17878-75F00-000 MOUNT,RDTR SUPPORT LWR |
17878-75F00-000 |
from US $4.52 |
||
|
7
|
7
17861-76G00-000
Bracket, rdtr sup rh
|
17861-76G00-000 |
— | ||
| replacement | |||||
|
7
|
7
17861-73H00-000 BRACKET,RDTR SUPPORT |
17861-73H00-000 |
US $11.36 |
||
|
8
|
8
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
9
|
9
17111-78F00-000
FAN,COOLING
|
17111-78F00-000 |
— | ||
|
10
|
10
08316-20053-000
Nut
|
08316-20053-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-2005A-000 NUT |
08316-2005A-000 |
from US $0.80 |
||
|
11
|
11
17120-78F00-000
MOTOR ASSY,COOLING FAN
|
17120-78F00-000 |
— | ||
|
12
|
12
02142-04103-000
Screw 4x10
|
02142-04103-000 |
— | ||
| replacement | |||||
|
12
|
12
02142-0410A-000 SCREW |
02142-0410A-000 |
from US $0.76 |
||
|
13
|
13
17760-78F00-000
SHROUD,COOLING FAN
|
17760-78F00-000 |
— | ||
|
14
|
14
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
14
|
14
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
15
|
15
17931-78F00-000 TANK,WATER RESERVOIR |
17931-78F00-000 |
from US $15.68 |
||
|
16
|
16
17932-60G10-000 CAP,WATER RESERVE TANK |
17932-60G10-000 |
from US $5.65 |
||
|
17
|
17
17933-60B00-000 RUBBER,WTR RSV TANK CAPRubber, tank cap |
17933-60B00-000 |
from US $1.98 |
||
|
18
|
18
09352-70111-600 HOSE(7X11X600)L:600->150 |
09352-70111-600 |
from US $6.84 |
||
|
19
|
19
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600->160 |
09352-70121-600 |
from US $5.93 |
||
|
20
|
20
17936-78F00-000 HOSE,RSVR TANK VENT |
17936-78F00-000 |
from US $6.99 |
||
|
21
|
21
17937-78F00-000
Bracket, reservoir tank
|
17937-78F00-000 |
— | ||
| replacement | |||||
|
21
|
21
17937-78F01-000 BRACKET,WTR RSVR TANK |
17937-78F01-000 |
from US $8.89 |
||
|
22
|
22
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
22
|
22
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
23
|
23
17731-74F00-000 PACKING,RADIATOR |
17731-74F00-000 |
US $2.21 |
||
