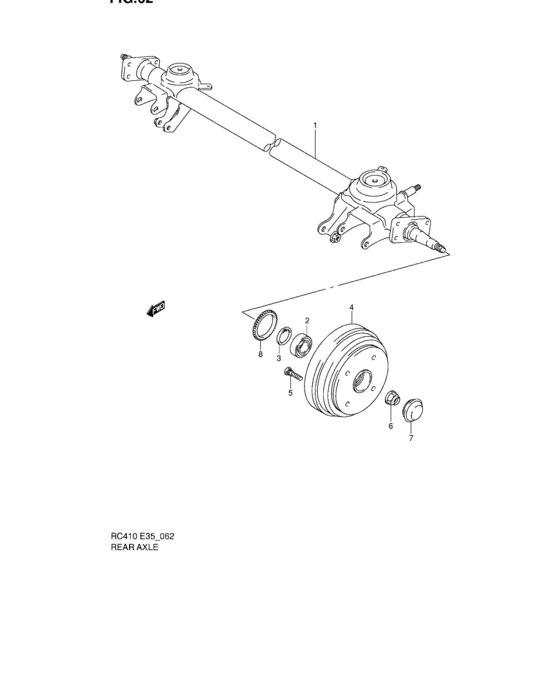

Rear axle (REAR AXLE) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46510-78F00-000
Axle, rear
N/ABS |
46510-78F00-000 |
— | ||
| replacement | |||||
|
1
|
1
46500-78810-000
AXLE,RR SET
N/ABS |
46500-78810-000 |
— | ||
|
1
|
1
46510-78F50-000
Axle, rear
W/ABS |
46510-78F50-000 |
— | ||
| replacement | |||||
|
1
|
1
46510-78F53-000 AXLE,RRW/ABS |
46510-78F53-000 |
US $601.92 |
||
|
2
|
2
46860-76G00-000
ベアリング,リヤホイール
|
46860-76G00-000 |
— | ||
| replacement | |||||
|
2
|
2
46860-76G04-000 BEARING,RR WHEEL |
46860-76G04-000 |
from US $41.47 |
||
|
3
|
3
08331-41526-000
Circlip, rear final bearing
|
08331-41526-000 |
— | ||
| replacement | |||||
|
3
|
3
08331-41529-000 CIRCLIP |
08331-41529-000 |
from US $1.89 |
||
|
4
|
4
43511-76G00-000
ドラム,ブレーキ,リヤ
N/ABS |
43511-76G00-000 |
— | ||
| replacement | |||||
|
4
|
4
43511-76G50-000 DRUM,BRAKE RRN/ABS |
43511-76G50-000 |
US $289.60 |
||
|
4
|
4
43511-76G50-000 DRUM,BRAKE RRW/ABS |
43511-76G50-000 |
US $289.60 |
||
|
5
|
5
09119-12016-000 BOLT(12X33) |
09119-12016-000 |
from US $2.36 |
||
|
6
|
6
09159-18017-000
Nut
|
09159-18017-000 |
— | ||
| replacement | |||||
|
6
|
6
09159-18026-000 NUT |
09159-18026-000 |
from US $3.33 |
||
|
7
|
7
43241-79001-000
Cap, spindle
|
43241-79001-000 |
— | ||
| replacement | |||||
|
7
|
7
43241-79002-000 CAP,SPINDLE |
43241-79002-000 |
from US $4.37 |
||
|
8
|
8
56411-76G00-000
リング,リヤホイールセンサ
W/ABS |
56411-76G00-000 |
— | ||
| replacement | |||||
|
8
|
8
56451-76G00-000 RING,RR WHEEL SENSORW/ABS |
56451-76G00-000 |
from US $31.28 |
||
