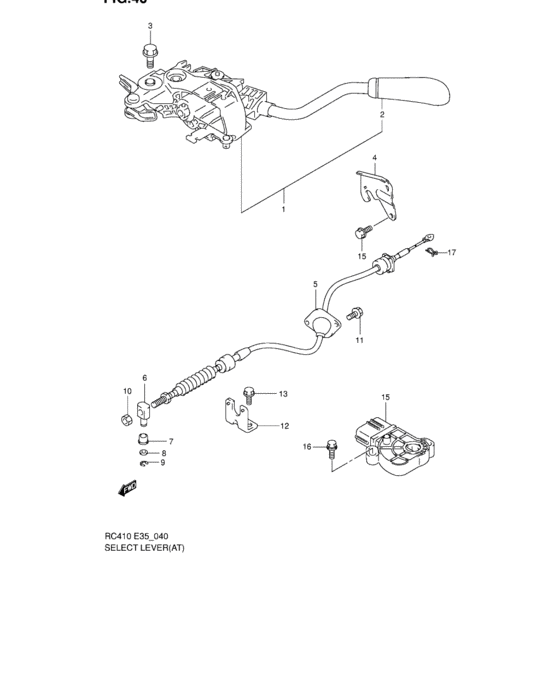

Select lever (AT) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28100-76FM0-5PK
Selector assy, column
|
28100-76FM0-5PK |
— | ||
| replacement | |||||
|
1
|
1
28100-76FV2-000
SELECTOR ASSY,COLUMN
|
28100-76FV2-000 |
— | ||
|
2
|
2
28160-76FK0-5PK
ノブアッシ,セレクトレバー(ブラック)
|
28160-76FK0-5PK |
— | ||
| replacement | |||||
|
2
|
2
28160-76FK1-000 KNOB ASSY,SEL LEVER |
28160-76FK1-000 |
US $23.18 |
||
|
3
|
3
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
3
|
3
01550-0820A-000 BoltBolt, funnel bracket |
01550-0820A-000 |
from US $1.12 |
||
|
4
|
4
28222-78FJ0-000 BRACKET,SEL CABLE COLUMN |
28222-78FJ0-000 |
US $8.72 |
||
|
5
|
5
28210-78FL0-000 CABLE ASSY,COLUMN |
28210-78FL0-000 |
US $103.78 |
||
|
6
|
6
28291-78233-000 JOINT,CABLE |
28291-78233-000 |
from US $0.43 |
||
|
7
|
7
09305-08012-000 BUSH |
09305-08012-000 |
from US $1.15 |
||
|
8
|
8
08322-01083-000
WASHER
|
08322-01083-000 |
— | ||
| replacements | |||||
|
8
|
8
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.96 |
||
|
8
|
8
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.96 |
||
|
9
|
9
08332-11063-000
E ring
|
08332-11063-000 |
— | ||
| replacements | |||||
|
9
|
9
08332-1106B-000 E RINGCirclip |
08332-1106B-000 |
from US $0.96 |
||
|
9
|
9
08332-1106A-000 E RINGE ring, pinion |
08332-1106A-000 |
from US $0.27 |
||
|
10
|
10
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
10
|
10
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
10
|
10
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
11
|
11
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
11
|
11
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
12
|
12
28221-61D10-000
Bracket, select cable
|
28221-61D10-000 |
— | ||
| replacement | |||||
|
12
|
12
28221-61D11-000 BRACKET,SELECT CABLE |
28221-61D11-000 |
US $6.59 |
||
|
13
|
13
28223-61D00-000 BoltBolt, selector cable bracket |
28223-61D00-000 |
US $3.97 |
||
|
14
|
14
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
14
|
14
01550-0820A-000 BoltBolt, funnel bracket |
01550-0820A-000 |
from US $1.12 |
||
|
15
|
15
37720-76G30-000
スイッチアッシ,シフト
|
37720-76G30-000 |
— | ||
| replacement | |||||
|
15
|
15
37720-76G31-000 SWITCH ASSY,SHIFT |
37720-76G31-000 |
from US $134.46 |
||
|
16
|
16
25948-76G10-000
Bolt, shift switch
|
25948-76G10-000 |
— | ||
| replacement | |||||
|
16
|
16
25948-76G11-000 BOLT,SHIFT SWITCH |
25948-76G11-000 |
from US $1.98 |
||
|
17
|
17
09385-08007-000 PIN,SNAPClip |
09385-08007-000 |
from US $1.09 |
||
