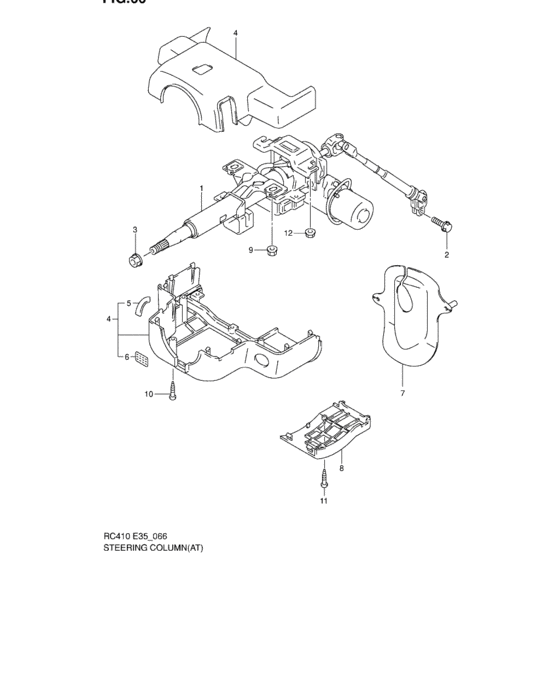

Steering column (AT) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-78F30-000
Column assy, collapsible,steering
|
48200-78F30-000 |
— | ||
| replacement | |||||
|
1
|
1
48200-78F34-000 COLUMN ASSY,COLPS STRG |
48200-78F34-000 |
US $1,950.48 |
||
|
2
|
2
09117-08053-000 BOLT(8X30) |
09117-08053-000 |
from US $1.26 |
||
|
3
|
3
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
| replacement | |||||
|
3
|
3
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
4
|
4
48400-78F30-T01
Cover assy, steering column
|
48400-78F30-T01 |
— | ||
| replacement | |||||
|
4
|
4
48400-78811-T01 COVER SET,STRG COLUMN |
48400-78811-T01 |
US $84.27 |
||
|
5
|
5
48412-73B00-000 LABEL,SHIFT PATTERN |
48412-73B00-000 |
US $3.53 |
||
|
6
|
6
79251-74F02-000 LABEL,PARKING BRAKE WARNING |
79251-74F02-000 |
US $3.94 |
||
|
7
|
7
48481-78F00-000 COVER,STRG JOINT |
48481-78F00-000 |
US $12.59 |
||
|
8
|
8
48422-76F30-T01
カバー,ステアリングコラムボトム(グレー)
|
48422-76F30-T01 |
— | ||
|
9
|
9
09159-08069-000
Nut
|
09159-08069-000 |
— | ||
| replacement | |||||
|
9
|
9
09159-08135-000 NUT |
09159-08135-000 |
from US $0.74 |
||
|
10
|
10
03211-05123-000
Screw
|
03211-05123-000 |
— | ||
| replacement | |||||
|
10
|
10
03211-0512A-000 SCREW |
03211-0512A-000 |
from US $0.45 |
||
|
11
|
11
03211-05163-000
Screw
|
03211-05163-000 |
— | ||
| replacement | |||||
|
11
|
11
03211-0516A-000 SCREW |
03211-0516A-000 |
US $0.80 |
||
|
12
|
12
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
