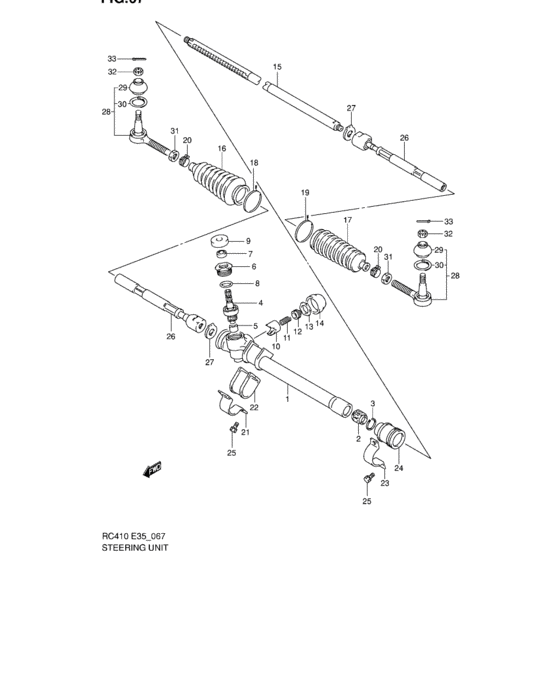

Steering unit (STEERING UNIT) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48510-78F00-000
ケース,ステアリングギヤ
|
48510-78F00-000 |
— | ||
| replacement | |||||
|
1
|
1
48510-78F0V-000
CASE,STRG GEAR,R
|
48510-78F0V-000 |
— | ||
|
2
|
2
48541-53B02-000
Bushing, steering rack
|
48541-53B02-000 |
— | ||
| replacement | |||||
|
2
|
2
48541-82H10-000 BUSHING,STEERING RACK |
48541-82H10-000 |
from US $21.58 |
||
|
3
|
3
09381-33002-000 RING, SNAP |
09381-33002-000 |
from US $1.28 |
||
|
4
|
4
48550-78F00-000
ピニオン,ステアリング
|
48550-78F00-000 |
— | ||
| replacement | |||||
|
4
|
4
48550-78F02-000 PINION,STEERING |
48550-78F02-000 |
from US $90.90 |
||
|
5
|
5
09263-10014-000 BEARING(10X14X10)Bearing, cl rlse low |
09263-10014-000 |
from US $7.38 |
||
|
6
|
6
48562-82000-000
Plug, pinion bearing
|
48562-82000-000 |
— | ||
| replacement | |||||
|
6
|
6
48562-82K00-000 PLUG,PINION BEARING |
48562-82K00-000 |
US $12.32 |
||
|
7
|
7
09283-15002-000 SEAL,OIL(15X25X5) |
09283-15002-000 |
from US $2.21 |
||
|
8
|
8
09280-34003-000 O RING(D:2,ID:34.1) |
09280-34003-000 |
from US $0.92 |
||
|
9
|
9
48451-82000-000 PACKING,STEERING GEAR CASE |
48451-82000-000 |
from US $2 |
||
|
10
|
10
48534-76G00-000
Planger, steering rack
|
48534-76G00-000 |
— | ||
| replacement | |||||
|
10
|
10
48534-60J00-000 PLUNGER,STEERING RACK |
48534-60J00-000 |
from US $17.42 |
||
|
11
|
11
09440-19011-000 SPRING |
09440-19011-000 |
from US $1.49 |
||
|
12
|
12
48535-76G00-000
Screw, rack damper
|
48535-76G00-000 |
— | ||
| replacement | |||||
|
12
|
12
48535-76G01-000 SCREW,RACK DAMPER |
48535-76G01-000 |
from US $6.32 |
||
|
13
|
13
48536-76G00-000 NUT,DAMPER SCREW LOCK |
48536-76G00-000 |
from US $2.56 |
||
|
14
|
14
48536-58000-000 CAP,RACK DAMPER SCREW |
48536-58000-000 |
from US $1.92 |
||
|
15
|
15
48531-78F00-000 RACK,STEERING,R |
48531-78F00-000 |
US $94.21 |
||
|
16
|
16
48571-82000-000 BOOT,STEERING PINION SIDE |
48571-82000-000 |
from US $21.49 |
||
|
17
|
17
48572-60B10-000 BOOT,STEERING RACK SIDE |
48572-60B10-000 |
from US $28.80 |
||
|
18
|
18
09460-01023-000 WIRE |
09460-01023-000 |
from US $0.41 |
||
|
19
|
19
09460-01023-000 WIRE |
09460-01023-000 |
from US $0.41 |
||
|
20
|
20
09401-15407-000 CLIPBolt, 2nd air hose |
09401-15407-000 |
from US $1.10 |
||
|
21
|
21
48521-76G00-000 BRACKET,STEERING PINION SIDE |
48521-76G00-000 |
US $12.64 |
||
|
22
|
22
48525-76G00-000 MOUNT,STRG PINION SIDE |
48525-76G00-000 |
US $15.84 |
||
|
23
|
23
48522-82000-000 BRACKET,STEERING RACK SIDE |
48522-82000-000 |
from US $1.94 |
||
|
24
|
24
48526-82000-000 MOUNT,STRG RACK SIDE |
48526-82000-000 |
from US $4.10 |
||
|
25
|
25
09112-08002-000 BOLT(8X25) |
09112-08002-000 |
from US $1.19 |
||
|
26
|
26
48830-78F00-000 TIE-ROD,STEERING |
48830-78F00-000 |
US $169.60 |
||
|
27
|
27
48841-82001-000 WASHER,STEERING TIE ROD LOCK |
48841-82001-000 |
from US $2.56 |
||
|
28
|
28
48810-76G00-000 END,STEERING TIE-ROD |
48810-76G00-000 |
from US $60.37 |
||
|
29
|
29
48819-60B00-000
BOOT SET
|
48819-60B00-000 |
— | ||
| replacements | |||||
|
29
|
29
48819-60B01-000
Boot Set
|
48819-60B01-000 |
— | ||
|
29
|
29
48800-60810-000 Boot Set |
48800-60810-000 |
US $21.60 |
||
|
30
|
30
09401-23402-000 CLIP |
09401-23402-000 |
from US $1.06 |
||
|
31
|
31
09140-12030-000 NUTNut, tie rod (rh thread) |
09140-12030-000 |
from US $1.42 |
||
|
32
|
32
08314-40123-000
Nut
|
08314-40123-000 |
— | ||
| replacement | |||||
|
32
|
32
08314-4012A-000 NUT |
08314-4012A-000 |
from US $0.99 |
||
|
33
|
33
04111-30208-000
Cotter pin
|
04111-30208-000 |
— | ||
| replacement | |||||
|
33
|
33
04111-3020A-000 PIN |
04111-3020A-000 |
from US $0.59 |
||
