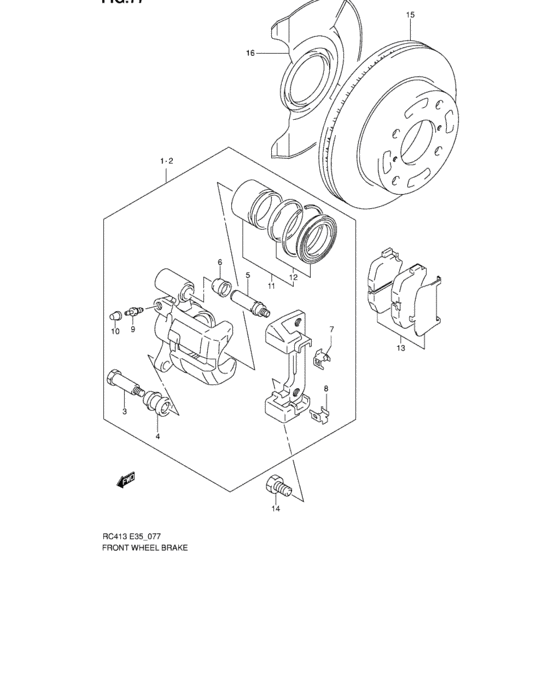

Front wheel brake (FRONT WHEEL BRAKE) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55101-75F11-999
Caliper,front brake,r
|
55101-75F11-999 |
— | ||
| replacements | |||||
|
1
|
1
55101-75F12-999
CALIPER,FR BRAKE,R
|
55101-75F12-999 |
— | ||
|
1
|
1
55101-75F13-999 Caliper,fr Brake,r |
55101-75F13-999 |
US $316.48 |
||
|
2
|
2
55102-75F11-999
Caliper,front brake,l
|
55102-75F11-999 |
— | ||
| replacements | |||||
|
2
|
2
55102-75F12-999
CALIPER,FR BRAKE,L
|
55102-75F12-999 |
— | ||
|
2
|
2
55102-75F13-999 Caliper,fr Brake,l |
55102-75F13-999 |
US $316.48 |
||
|
3
|
3
55191-75F00-000 PIN,CYLINDER SLIDE NO.1 |
55191-75F00-000 |
from US $12.17 |
||
|
4
|
4
55193-75F00-000 BUSH,PIN SLIDE |
55193-75F00-000 |
from US $10.01 |
||
|
5
|
5
55192-75F00-000 PIN,CYLINDER SLIDE NO.2 |
55192-75F00-000 |
US $14.09 |
||
|
6
|
6
55201-75F00-000 BOOT,PIN |
55201-75F00-000 |
from US $5.67 |
||
|
7
|
7
55234-75F00-000 PLATE,PAD SUPPORT NO.1 |
55234-75F00-000 |
from US $7.25 |
||
|
8
|
8
55235-75F00-000 PLATE,PAD SUPPORT NO.2 |
55235-75F00-000 |
from US $7.25 |
||
|
9
|
9
55151-78451-000 PLUG,BLEEDER |
55151-78451-000 |
from US $3.94 |
||
|
10
|
10
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
11
|
11
55830-78A00-000
Piston/seal set
|
55830-78A00-000 |
— | ||
| replacement | |||||
|
11
|
11
55830-78A05-000 Piston / Seal Set |
55830-78A05-000 |
from US $32.47 |
||
|
12
|
12
55100-82820-000
Seal set,piston
|
55100-82820-000 |
— | ||
| replacements | |||||
|
12
|
12
55100-82822-000
SEAL SET,PISTON
|
55100-82822-000 |
— | ||
|
12
|
12
55100-82823-000
Seal Set,piston
|
55100-82823-000 |
— | ||
|
12
|
12
55100-82824-000 Seal Set,Piston |
55100-82824-000 |
from US $6.64 |
||
|
13
|
13
55810-75F32-000 PAD SET,DISC BRAKE |
55810-75F32-000 |
US $125.60 |
||
|
14
|
14
09117-12006-000 BOLT(12X27) |
09117-12006-000 |
US $1.92 |
||
|
15
|
15
55311-75F11-000 DISC,FR BRAKE |
55311-75F11-000 |
US $123.65 |
||
|
16
|
16
55321-76G10-000 COVER,FR BRAKE DISC DUST |
55321-76G10-000 |
US $24.84 |
||
