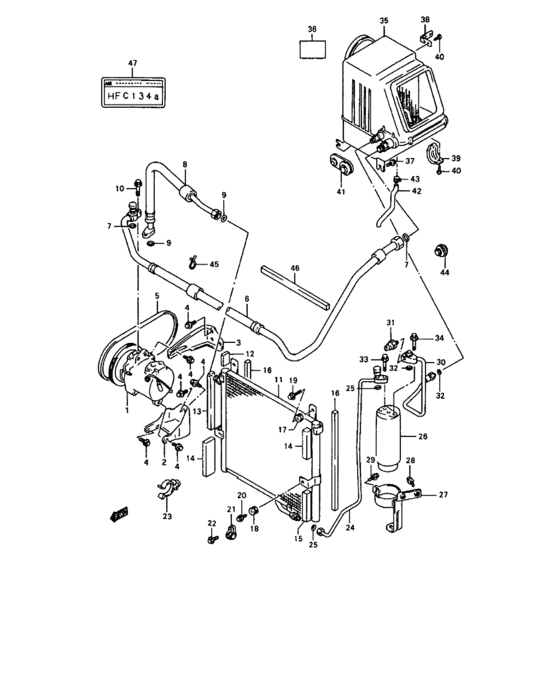

Air conditioner (AIR CONDITIONER) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
95000-74F50-000
Air con set
|
95000-74F50-000 |
— | ||
|
1
|
1
95200-72B03-000
コンプレッサ/マグネットクラッチ
SEIKO |
95200-72B03-000 |
— | ||
| replacement | |||||
|
1
|
1
95200-77G10-000 COMPRESSOR ASSYSEIKO |
95200-77G10-000 |
US $1,279.68 |
||
|
1
|
1
95200-71B10-000
コンプレッサ/マグネットクラッチ
DENSO |
95200-71B10-000 |
— | ||
| replacement | |||||
|
1
|
1
95200-71BV0-000
COMPRESSOR ASSY
DENSO |
95200-71BV0-000 |
— | ||
|
2
|
2
95111-70B02-000 BRACKET,COMPRESSOR |
95111-70B02-000 |
US $46.37 |
||
|
3
|
3
95120-70G10-000 STAY,COMPRESSOR ADJUST |
95120-70G10-000 |
US $16.01 |
||
|
4
|
4
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
4
|
4
01550-0820A-000 BoltBolt, funnel bracket |
01550-0820A-000 |
from US $1.12 |
||
|
5
|
5
95141-70B10-000
V belt (l:750)
W/95200--72B03 |
95141-70B10-000 |
— | ||
| replacement | |||||
|
5
|
5
95141-70B12-000 V-BELT,L:750W/95200--72B03 |
95141-70B12-000 |
US $19.20 |
||
|
5
|
5
95141-71B00-000 V-BELT,L:730W/95200--71B10 |
95141-71B00-000 |
US $17.60 |
||
|
6
|
6
95710-74F30-000 HOSE,SUCTION |
95710-74F30-000 |
US $220.80 |
||
|
7
|
7
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) |
95896-50G00-000 |
from US $1.28 |
||
|
8
|
8
95720-55E00-000 HOSE,DISCH |
95720-55E00-000 |
US $139.84 |
||
|
9
|
9
95895-50G00-000 O-RING,D:2.4 ID:10.8 |
95895-50G00-000 |
from US $1.28 |
||
|
10
|
10
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0625B-000 BoltBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
10
|
10
01550-0625A-000 BoltBolt |
01550-0625A-000 |
from US $0.96 |
||
|
11
|
11
95311-74F20-000
コンデンサ
|
95311-74F20-000 |
— | ||
| replacement | |||||
|
11
|
11
95311-74FV2-000
CONDENSER
|
95311-74FV2-000 |
— | ||
|
12
|
12
95814-74F01-000 PACKING,CONDENSER UPPER,RTYPE 2 |
95814-74F01-000 |
US $2.83 |
||
|
13
|
13
95761-84040-000
パッキング,コンデンサ
TYPE 1, L:120->100 |
95761-84040-000 |
— | ||
| replacement | |||||
|
13
|
13
95813-81A00-000 PACKING,RADIATORTYPE 1, L:120->100 |
95813-81A00-000 |
from US $3.26 |
||
|
13
|
13
95813-74F01-000 PACKING,CONDENSER,RTYPE 2 |
95813-74F01-000 |
US $3.53 |
||
|
14
|
14
95812-74F00-000 PACKING,CONDENSERTYPE 1 |
95812-74F00-000 |
US $5.23 |
||
|
15
|
15
95812-74F00-000 PACKING,CONDENSERTYPE 2, L:120->100 |
95812-74F00-000 |
US $5.23 |
||
|
16
|
16
95761-84040-000
パッキング,コンデンサ
L:350->310 |
95761-84040-000 |
— | ||
| replacement | |||||
|
16
|
16
95813-81A00-000 PACKING,RADIATORL:350->310 |
95813-81A00-000 |
from US $3.26 |
||
|
17
|
17
95851-60B00-000 BUSH,COND |
95851-60B00-000 |
US $4.28 |
||
|
18
|
18
95851-60B10-000 BUSH,COND |
95851-60B10-000 |
US $6.59 |
||
|
19
|
19
09116-06129-000 BOLT(6X30) |
09116-06129-000 |
US $1.44 |
||
|
20
|
20
02162-06253-000
Bolt
|
02162-06253-000 |
— | ||
| replacement | |||||
|
20
|
20
02162-0625A-000 SCREW |
02162-0625A-000 |
from US $0.76 |
||
|
21
|
21
95771-50E00-000 CLAMP,SUCTION PIPE |
95771-50E00-000 |
US $6.96 |
||
|
22
|
22
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
22
|
22
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
23
|
23
95761-50E00-000 CLAMP,SUCT HOSE |
95761-50E00-000 |
US $3.50 |
||
|
24
|
24
95731-74F00-000 PIPE,CONDENSER OUTLET |
95731-74F00-000 |
US $48 |
||
|
25
|
25
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $1.12 |
||
|
26
|
26
95330-72B00-000 RECEIVER DRYER |
95330-72B00-000 |
US $117.23 |
||
|
27
|
27
95121-70B12-000 BRACKET,RCVR |
95121-70B12-000 |
US $15.46 |
||
|
28
|
28
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
28
|
28
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
28
|
28
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
29
|
29
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
29
|
29
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
30
|
30
95732-74F01-000
Pipe,receiver dryer outlet
|
95732-74F01-000 |
— | ||
| replacement | |||||
|
30
|
30
95732-74F02-000 PIPE,RECEIVER DRYER OUTLET |
95732-74F02-000 |
US $157.50 |
||
|
31
|
31
95526-50G10-000 Switch, dual pressure |
95526-50G10-000 |
US $79.56 |
||
| replacement | |||||
|
31
|
31
95526-50G30-000 SWITCH,DUAL PRESSURE |
95526-50G30-000 |
from US $44.84 |
||
|
32
|
32
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $1.12 |
||
|
33
|
33
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
33
|
33
01550-0620B-000 BoltBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
34
|
34
01550-06303-000
Bolt (6x30)
|
01550-06303-000 |
— | ||
| replacement | |||||
|
34
|
34
01550-0630A-000 Bolt |
01550-0630A-000 |
from US $1.12 |
||
|
35
|
35
95400-70G21-000
COOLING UNIT
|
95400-70G21-000 |
— | ||
|
36
|
36
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.51 |
||
|
37
|
37
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
37
|
37
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
38
|
38
95492-70B00-000 STAY,UNIT&HEATER NO.1 |
95492-70B00-000 |
US $5.56 |
||
|
39
|
39
95493-70B00-000 STAY,UNIT&HTR 2 |
95493-70B00-000 |
from US $3.74 |
||
|
40
|
40
03541-05103-000
Screw5 x 10
|
03541-05103-000 |
— | ||
| replacements | |||||
|
40
|
40
03541-0510B-000 SCREW |
03541-0510B-000 |
from US $0.80 |
||
|
40
|
40
03541-0510A-000 SCREWScrew, rr cover |
03541-0510A-000 |
from US $0.68 |
||
|
41
|
41
95833-50E01-000 GROMMET,JOINT PIPE |
95833-50E01-000 |
US $7.95 |
||
|
42
|
42
95481-74F10-000
HOSE,DRAIN
|
95481-74F10-000 |
— | ||
|
43
|
43
09401-13417-000 CLIP |
09401-13417-000 |
from US $0.79 |
||
|
44
|
44
74814-82000-000 GROMMET,CAR AIR CON,NO.2 |
74814-82000-000 |
US $6.08 |
||
|
45
|
45
09408-00021-000 CLIP(ID:16)Clip, oil warning reset sw |
09408-00021-000 |
US $9.20 |
||
|
46
|
46
95811-70B00-000 PACKING,HOOD |
95811-70B00-000 |
US $7.10 |
||
|
47
|
47
95955-72B00-000 LABEL,REFRIGERANT |
95955-72B00-000 |
US $1.60 |
||
