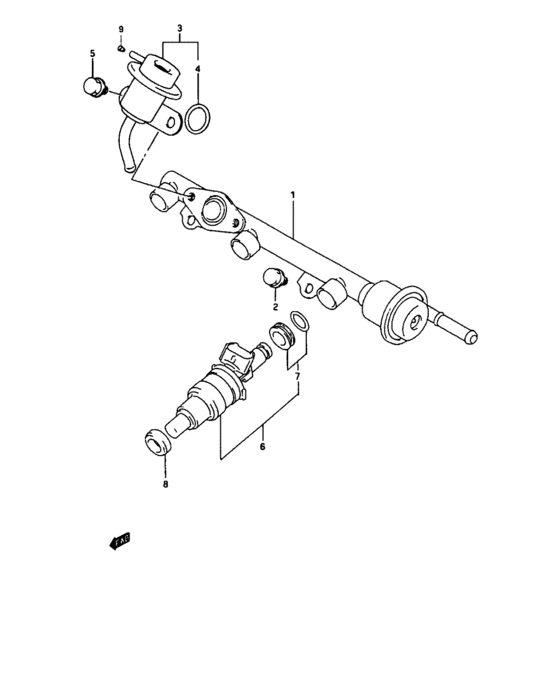

Delivery pipe (DELIVERY PIPE) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15730-72G00-000
Pipe comp,delivery
|
15730-72G00-000 |
— | ||
|
2
|
2
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
2
|
2
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
3
|
3
15610-72G00-000 REGULATOR ASSY,FUEL PRESSUREDENSO |
15610-72G00-000 |
US $139.84 |
||
|
3
|
3
15610-51E10-000
Regulator assy, fuel pressure
MIKUNI |
15610-51E10-000 |
— | ||
| replacement | |||||
|
3
|
3
15610-51E11-000 REGULATOR ASSY,FUEL PRESSUREMIKUNI |
15610-51E11-000 |
from US $149.60 |
||
|
4
|
4
15710-09300-000 O-RINGDENSO |
15710-09300-000 |
from US $1.60 |
||
|
4
|
4
15710-51E10-000 O-RINGMIKUNI |
15710-51E10-000 |
from US $2.28 |
||
|
5
|
5
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
5
|
5
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
6
|
6
15710-57F00-000 INJECTOR ASSY,FUEL |
15710-57F00-000 |
US $281.52 |
||
|
7
|
7
15716-58BT0-000 GROMMET SET,FUEL INJECTOR |
15716-58BT0-000 |
from US $19.20 |
||
|
8
|
8
09320-08062-000 CUSHION |
09320-08062-000 |
from US $4.64 |
||
|
9
|
9
15616-64D00-000 JET |
15616-64D00-000 |
US $3.64 |
||
