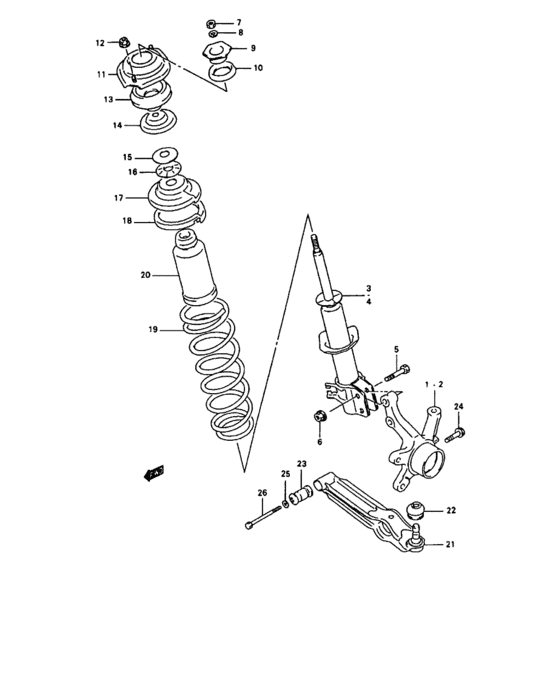

Front suspension (FRONT SUSPENSION) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46111-69D00-000
KNUCKLE,RR SUSPENSION,R
|
46111-69D00-000 |
— | ||
|
2
|
2
46151-69D00-000 KNUCKLE,RR SUSPENSION,L |
46151-69D00-000 |
US $179.95 |
||
|
3
|
3
41601-74F20-000
ストラットアッシ,フロントサスペンション,ライト
|
41601-74F20-000 |
— | ||
| replacement | |||||
|
3
|
3
41601-74F30-000 STRUT ASSY,FR SUSPENSION,R |
41601-74F30-000 |
US $206.08 |
||
|
4
|
4
41602-74F20-000
ストラットアッシ,フロントサスペンション,レフト
|
41602-74F20-000 |
— | ||
| replacement | |||||
|
4
|
4
41602-74F30-000 STRUT ASSY,FR SUSPENSION,L |
41602-74F30-000 |
US $206.08 |
||
|
5
|
5
09103-12501-000 BOLT(12X55) |
09103-12501-000 |
from US $2.56 |
||
|
6
|
6
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
7
|
7
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
7
|
7
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
8
|
8
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
9
|
9
41714-82000-000 SUPPORT,FRONT STRUT INNER |
41714-82000-000 |
from US $1.94 |
||
|
10
|
10
41713-82000-000 STOPPER,FRONT STRUT REBOUND |
41713-82000-000 |
from US $2.72 |
||
|
11
|
11
41710-82000-000 SUPPORT,FRONT STRUT |
41710-82000-000 |
from US $24.14 |
||
|
12
|
12
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
13
|
13
41712-82000-000 MOUNT,FR STRUT |
41712-82000-000 |
from US $9.29 |
||
|
14
|
14
41720-82000-000 SEAT,STRUT MOUNT |
41720-82000-000 |
from US $9.60 |
||
|
15
|
15
41731-50E00-000 SEAT,FRONT STRUT BEARING |
41731-50E00-000 |
US $10.56 |
||
|
16
|
16
41741-50E00-000 BEARING,FR STRUTBearing, front strut |
41741-50E00-000 |
from US $11.16 |
||
|
17
|
17
41230-50E00-000 SEAT,FRONT SPRING UPPER |
41230-50E00-000 |
from US $34.16 |
||
|
18
|
18
41211-70B00-000 SEAT,FRONT COIL SPRING |
41211-70B00-000 |
from US $8.28 |
||
|
19
|
19
41111-74F01-000
スプリング,フロントコイル
|
41111-74F01-000 |
— | ||
| replacement | |||||
|
19
|
19
41111-74F21-000
SPRING,FRONT COIL
|
41111-74F21-000 |
— | ||
|
20
|
20
42111-70B11-000 STOPPER,BUMP |
42111-70B11-000 |
US $15.77 |
||
|
21
|
21
45200-69D00-000
アームアッシ,サスペンションコントロール
|
45200-69D00-000 |
— | ||
| replacement | |||||
|
21
|
21
45200-69DV1-000 ARM ASSY,FR SPNSN |
45200-69DV1-000 |
US $197.60 |
||
|
22
|
22
45723-70B00-000
SEAL SET,DUST
|
45723-70B00-000 |
— | ||
| replacements | |||||
|
22
|
22
45723-70B01-000
Seal Set,dust
|
45723-70B01-000 |
— | ||
|
22
|
22
45700-70810-000 Seal Set,dust |
45700-70810-000 |
from US $20.48 |
||
|
23
|
23
09319-10030-000 BUSH(10.2X25.5X52.2)Bushing |
09319-10030-000 |
from US $6.41 |
||
|
24
|
24
09100-10184-000 BOLT(10X40) |
09100-10184-000 |
from US $1.15 |
||
|
25
|
25
08321-01103-000
Washer
|
08321-01103-000 |
— | ||
| replacements | |||||
|
25
|
25
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.96 |
||
|
25
|
25
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.96 |
||
|
26
|
26
09117-10025-000
Bolt (10x89.5)
|
09117-10025-000 |
— | ||
| replacement | |||||
|
26
|
26
45215-72J10-000 BOLT,SPNSN ARM FR BUSHING |
45215-72J10-000 |
from US $4.43 |
||
