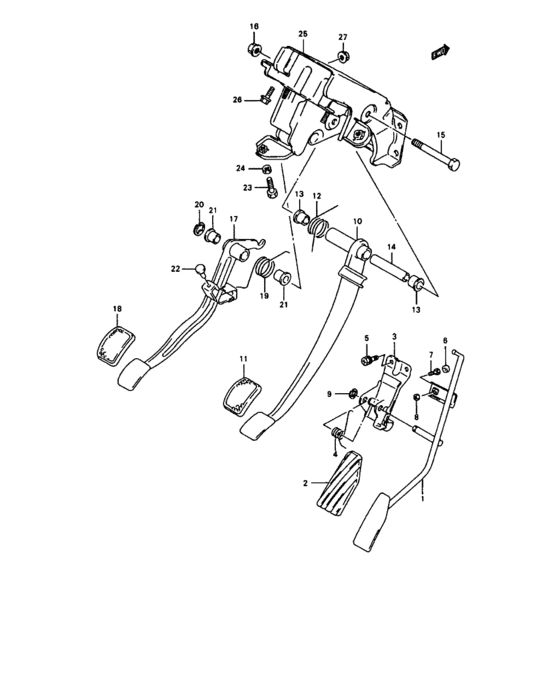

Pedal/pedal bracket (MT) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-74F20-000
PEDAL,ACCELERATOR
|
49410-74F20-000 |
— | ||
|
2
|
2
49451-60B00-000 PAD,ACCELERATOR PEDAL |
49451-60B00-000 |
from US $1.26 |
||
|
3
|
3
49510-74F10-000
ブラケット,アクセルペダル
|
49510-74F10-000 |
— | ||
| replacement | |||||
|
3
|
3
49510-74F00-000
BRACKET,ACCEL PEDAL
|
49510-74F00-000 |
— | ||
|
4
|
4
09448-15016-000 SPRING |
09448-15016-000 |
from US $1.46 |
||
|
5
|
5
09137-06009-000
SCREW(6X12)
|
09137-06009-000 |
— | ||
|
6
|
6
09251-05007-000 CAP(OD:13.6) |
09251-05007-000 |
US $26.50 |
||
|
7
|
7
09100-06150-000 BOLT(6X31)Bolt, adjuster |
09100-06150-000 |
from US $0.65 |
||
|
8
|
8
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
8
|
8
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
8
|
8
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
9
|
9
08332-11075-000
E ring
|
08332-11075-000 |
— | ||
| replacement | |||||
|
9
|
9
08332-1107A-000 E RING |
08332-1107A-000 |
from US $0.96 |
||
|
10
|
10
49610-74F00-000
Pedal comp,brake
|
49610-74F00-000 |
— | ||
|
11
|
11
49751-79001-000
Pad, pedal
|
49751-79001-000 |
— | ||
| replacement | |||||
|
11
|
11
49751-58J00-000 PAD,PEDAL |
49751-58J00-000 |
from US $2.84 |
||
|
12
|
12
49691-74F00-000
SPRING,BRAKE PEDAL
|
49691-74F00-000 |
— | ||
|
13
|
13
09307-13005-000 BUSHBushing |
09307-13005-000 |
from US $2.88 |
||
|
14
|
14
09180-10133-000
スペーサ,10X13X96.1
|
09180-10133-000 |
— | ||
|
15
|
15
09100-10289-000
Bolt,10x109.5
|
09100-10289-000 |
— | ||
|
16
|
16
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
17
|
17
49810-50E00-000 PEDAL,CLUTCH |
49810-50E00-000 |
US $29.81 |
||
|
18
|
18
49751-79001-000
Pad, pedal
|
49751-79001-000 |
— | ||
| replacement | |||||
|
18
|
18
49751-58J00-000 PAD,PEDAL |
49751-58J00-000 |
from US $2.84 |
||
|
19
|
19
49891-50E00-000 SPRING,CLUTCH PEDAL |
49891-50E00-000 |
US $5.30 |
||
|
20
|
20
08332-11106-000
E ring
|
08332-11106-000 |
— | ||
| replacement | |||||
|
20
|
20
08332-1110A-000 E RING |
08332-1110A-000 |
from US $1.12 |
||
|
21
|
21
09307-13005-000 BUSHBushing |
09307-13005-000 |
from US $2.88 |
||
|
22
|
22
09321-06026-000 CUSHION |
09321-06026-000 |
from US $1.10 |
||
|
23
|
23
09100-06088-000 BOLT(6X30) |
09100-06088-000 |
US $22.40 |
||
|
24
|
24
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
24
|
24
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
24
|
24
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
25
|
25
49710-74F00-000
Bracket comp,pedal
|
49710-74F00-000 |
— | ||
|
26
|
26
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0816B-000 Bolt |
01550-0816B-000 |
from US $0.91 |
||
|
26
|
26
01550-0816A-000 BoltBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
27
|
27
09159-08069-000
Nut
|
09159-08069-000 |
— | ||
| replacement | |||||
|
27
|
27
09159-08135-000 NUT |
09159-08135-000 |
from US $0.74 |
||
