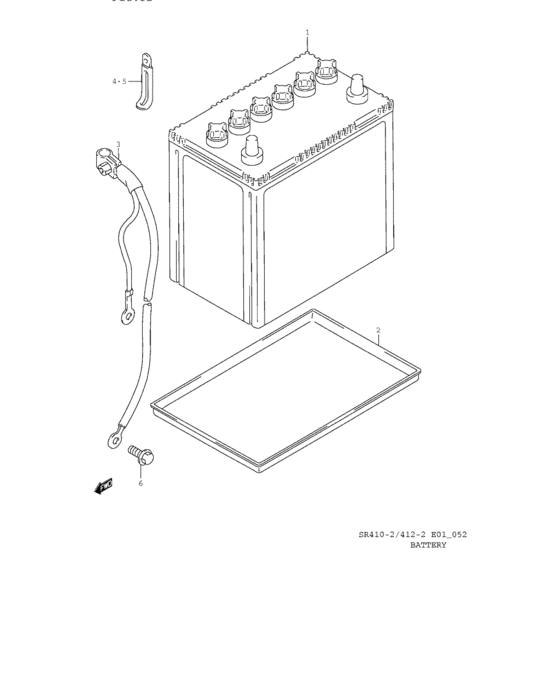

Battery (BATTERY) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-71320-000
Battery assy (38b20l,12v,28ah/
|
33610-71320-000 |
— | ||
|
2
|
2
33660-73010-000
Tray, battery
|
33660-73010-000 |
— | ||
| replacement | |||||
|
2
|
2
33660-71L10-000 TRAY,BATTERY |
33660-71L10-000 |
from US $7.90 |
||
|
3
|
3
33850-75F40-000
CABLE,BATTERY GND
MT |
33850-75F40-000 |
— | ||
|
4
|
4
09404-08206-000 CLAMP(L:65 T:0.8)Clamp MT |
09404-08206-000 |
from US $1.13 |
||
|
6
|
6
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
6
|
6
01550-0812A-000 Bolt |
01550-0812A-000 |
from US $0.91 |
||
