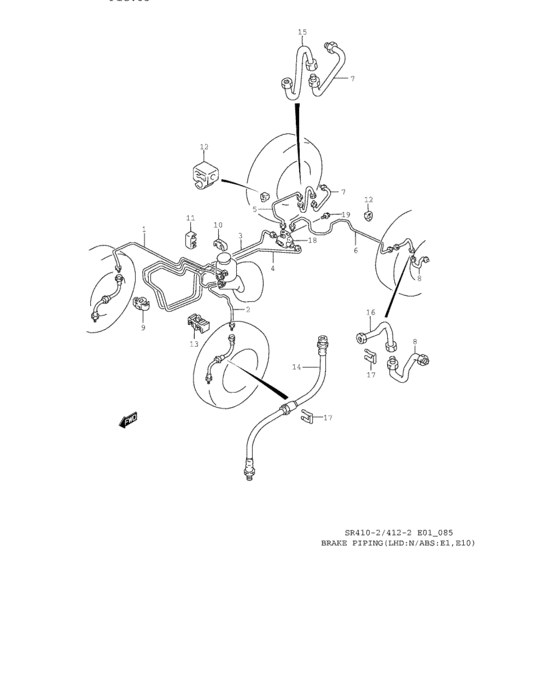

Brake piping (LHD:N/ABS:,0) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-75F51-000
PIPE,MA SEC TO FR BK HOSE R
|
51410-75F51-000 |
— | ||
|
2
|
2
51420-75F50-000
PIPE,MA PRI TO FR BK HOSE L
|
51420-75F50-000 |
— | ||
|
3
|
3
51450-75F50-000
Pipe,ma pri to valve,r
|
51450-75F50-000 |
— | ||
|
4
|
4
51460-75F50-000
PIPE,MA SEC TO VALVE L
|
51460-75F50-000 |
— | ||
|
5
|
5
51470-75F00-000 PIPE,VALVE TO RR BK HOSE R |
51470-75F00-000 |
US $13.25 |
||
|
6
|
6
51480-75F00-000 PIPE,VALVE TO RR BK HOSE L |
51480-75F00-000 |
US $22.63 |
||
|
7
|
7
51510-75F00-000 PIPE,RR BK HOSE TO RR CYL R |
51510-75F00-000 |
US $10.05 |
||
|
8
|
8
51520-75F00-000 PIPE,RR BK HOSE TO RR CYL L |
51520-75F00-000 |
US $8.72 |
||
|
9
|
9
51751-60B00-000 CLAMP,BRAKE PIPE |
51751-60B00-000 |
from US $1.60 |
||
|
10
|
10
51751-75F00-000 CLAMP,BK PIPE MAIN FL DOUBLE |
51751-75F00-000 |
from US $1.40 |
||
|
11
|
11
51751-77E00-000 CLAMP,BRAKE PIPE |
51751-77E00-000 |
from US $2.24 |
||
|
12
|
12
51752-70B00-000 CLAMP,BK PIPE |
51752-70B00-000 |
US $1.60 |
||
|
13
|
13
51761-60B00-000 CLAMP,BRAKE PIPE |
51761-60B00-000 |
US $1.92 |
||
|
14
|
14
51550-75F00-000 HOSE,FR DISC FLEXIBLE |
51550-75F00-000 |
US $48.21 |
||
|
15
|
15
51570-50A50-000 HOSE,RR BRAKE FLEXIBLE |
51570-50A50-000 |
from US $18.40 |
||
|
16
|
16
51580-75F00-000
ホース,リヤブレーキフレキシブル,レフト
|
51580-75F00-000 |
— | ||
| replacement | |||||
|
16
|
16
51570-80J00-000 HOSE,RR BRAKE FLEXIBLE |
51570-80J00-000 |
from US $15.20 |
||
|
17
|
17
09383-13001-000 E RING |
09383-13001-000 |
from US $0.70 |
||
| replacement | |||||
|
17
|
17
09383-13003-000 E-RING |
09383-13003-000 |
from US $1.46 |
||
|
18
|
18
51910-75F00-000 VALVE ASSY,PROPORTIONING |
51910-75F00-000 |
US $115.92 |
||
|
19
|
19
01550-06403-000
Bolt (green)
|
01550-06403-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0640B-000 Bolt |
01550-0640B-000 |
from US $1.12 |
||
|
19
|
19
01550-0640A-000 BoltBolt (l:40) |
01550-0640A-000 |
from US $3.83 |
||
