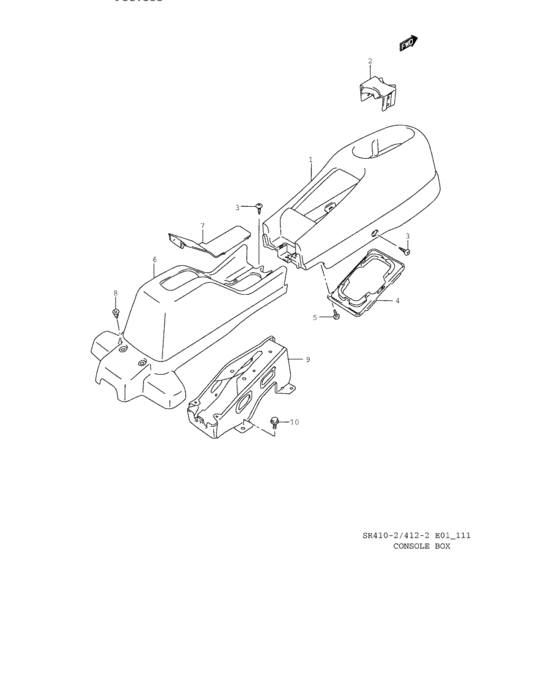

Console box (CONSOLE BOX) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75811-75F00-T01
BOX,FLOOR CONSOLE FR
|
75811-75F00-T01 |
— | ||
|
2
|
2
75820-75F00-T01 HOLDER,CUPGL,GLX |
75820-75F00-T01 |
US $11.50 |
||
|
3
|
3
03142-05163-000
Screw
|
03142-05163-000 |
— | ||
| replacement | |||||
|
3
|
3
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
4
|
4
75813-74F00-5PK BRACKET,GR SHF BOOTMT |
75813-74F00-5PK |
US $11.19 |
||
|
5
|
5
03242-05163-000
Screw
MT |
03242-05163-000 |
— | ||
| replacement | |||||
|
5
|
5
03241-0516A-000 SCREWMT |
03241-0516A-000 |
from US $0.76 |
||
|
6
|
6
75871-75F00-T01
BOX,FLOOR CONSOLE RR
|
75871-75F00-T01 |
— | ||
|
7
|
7
75812-75F00-T01 CAP,CONSOLE BOX |
75812-75F00-T01 |
US $12.84 |
||
|
8
|
8
09409-06314-T01 CLIP(GRAY) |
09409-06314-T01 |
from US $1.76 |
||
|
9
|
9
75610-75F00-000
BRACKET,PARKING LEVER
|
75610-75F00-000 |
— | ||
|
10
|
10
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
