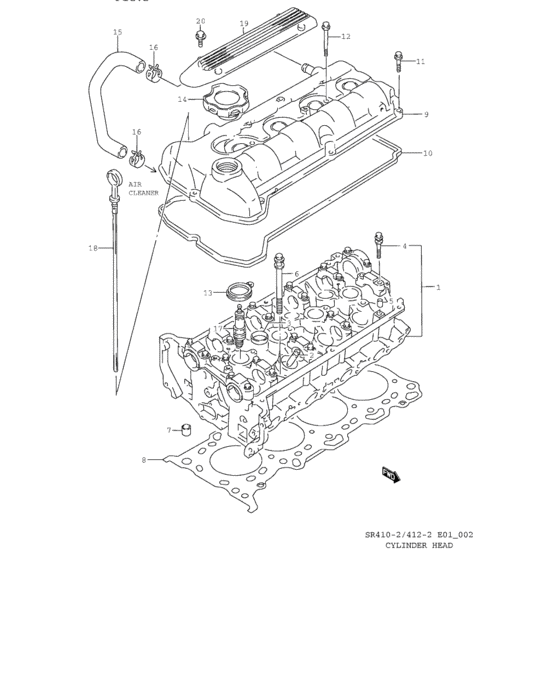

Cylinder head (CYLINDER HEAD) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-75F00-000
ヘッドアッシ,シリンダ
->11100-75F01,USED WITH 12921-78G20 (16PCS) |
11100-75F00-000 |
— | ||
| replacements | |||||
|
1
|
1
11100-75F03-000
HEAD ASSY,CYLINDER
->11100-75F01,USED WITH 12921-78G20 (16PCS) |
11100-75F03-000 |
— | ||
|
1
|
1
12921-78G30-000 SPRING,VALVE->11100-75F01,USED WITH 12921-78G20 (16PCS) |
12921-78G30-000 |
US $10.40 |
||
|
1
|
1
11100-75F01-000
ヘッドアッシ,シリンダ
JSAEMA61S00301514~,JSAEMA61SW5200188~,MA81S-300915~,JSAEMA81S00305405~,JSAEMA81SX5200314~,JSAEMA81SX0200001~,JSAEMB81S00301479~ |
11100-75F01-000 |
— | ||
| replacement | |||||
|
1
|
1
11100-75F03-000
HEAD ASSY,CYLINDER
JSAEMA61S00301514~,JSAEMA61SW5200188~,MA81S-300915~,JSAEMA81S00305405~,JSAEMA81SX5200314~,JSAEMA81SX0200001~,JSAEMB81S00301479~ |
11100-75F03-000 |
— | ||
|
2
|
2
11115-73G00-001
Guide, valve
|
11115-73G00-001 |
— | ||
| replacement | |||||
|
2
|
2
11115-73G01-001 GUIDE,VALVE |
11115-73G01-001 |
from US $13.38 |
||
|
3
|
3
09241-20006-000 PLUGPlug, crank pin oil |
09241-20006-000 |
from US $1.60 |
||
|
4
|
4
11128-73G60-000 BOLT,CAMSHAFT HOUSING 6X36 |
11128-73G60-000 |
US $1.52 |
||
|
5
|
5
09206-08001-000 PIN(8X11) |
09206-08001-000 |
from US $1.53 |
||
|
6
|
6
11117-73G00-000 BOLT,CYLINDER HEAD |
11117-73G00-000 |
from US $4.80 |
||
|
7
|
7
04211-13189-000 PIN |
04211-13189-000 |
from US $1.22 |
||
|
8
|
8
11141-75F10-000 GASKET,CYL HEADSR410 |
11141-75F10-000 |
from US $77.31 |
||
|
8
|
8
11141-75F30-000
GASKET,CYL HEAD
SR412 |
11141-75F30-000 |
— | ||
|
9
|
9
11170-75F02-000
カバー,シリンダヘッド
->11170-75F03,USED WITH 11189-75F01 |
11170-75F02-000 |
— | ||
| replacements | |||||
|
9
|
9
11170-75F03-000 Cover,cylinder head->11170-75F03,USED WITH 11189-75F01 |
11170-75F03-000 |
US $237.36 |
||
|
9
|
9
11189-75F01-000 GASKET,CYL HEAD COVER->11170-75F03,USED WITH 11189-75F01 |
11189-75F01-000 |
from US $22.93 |
||
|
9
|
9
11170-75F03-000 Cover,cylinder headJSAEMA61S00211183~,JSAEMA61SW5200188~,MA81S-200171~,JSAEMA81S00211233~,JSAEMA81SX0200001~,JSAEMA81SX5200312~,JSAEMB81S00201717~ |
11170-75F03-000 |
US $237.36 |
||
|
10
|
10
11189-75F01-000 GASKET,CYL HEAD COVER |
11189-75F01-000 |
from US $22.93 |
||
|
11
|
11
11178-71C10-000 BOLT,CYLINDER HEAD COVER |
11178-71C10-000 |
from US $1.31 |
||
|
12
|
12
01547-06553-000
Bolt
|
01547-06553-000 |
— | ||
| replacement | |||||
|
12
|
12
01547-0655B-000 Bolt |
01547-0655B-000 |
from US $1.91 |
||
|
13
|
13
11179-73G00-000 GASKET,SPARK PLUG HOLEGasket, spark plug hole |
11179-73G00-000 |
from US $10.94 |
||
|
14
|
14
16920-69G10-000
CAP COMP OIL FILLER
|
16920-69G10-000 |
— | ||
| replacements | |||||
|
14
|
14
16920-83G00-000
Cap,oil filler
|
16920-83G00-000 |
— | ||
|
14
|
14
16920-83G01-000 CAP OIL FILLER |
16920-83G01-000 |
US $10.22 |
||
|
15
|
15
11191-75F00-000 HOSE,BREATHER |
11191-75F00-000 |
US $15.16 |
||
|
16
|
16
09401-18404-000 CLIP |
09401-18404-000 |
from US $1.37 |
||
|
17
|
17
09482-00448-000 PLUG,SPARK(NGK DCPR7E) |
09482-00448-000 |
from US $7.85 |
||
|
18
|
18
16910-75F00-000 GAUGE,OIL LEVEL |
16910-75F00-000 |
US $31.17 |
||
|
19
|
19
11180-75F01-000 COVER,CYL HEAD UPPER |
11180-75F01-000 |
US $18.58 |
||
|
20
|
20
01547-06163-000
Bolt (green)
|
01547-06163-000 |
— | ||
| replacement | |||||
|
20
|
20
01547-0616B-000 Bolt |
01547-0616B-000 |
from US $0.76 |
||
