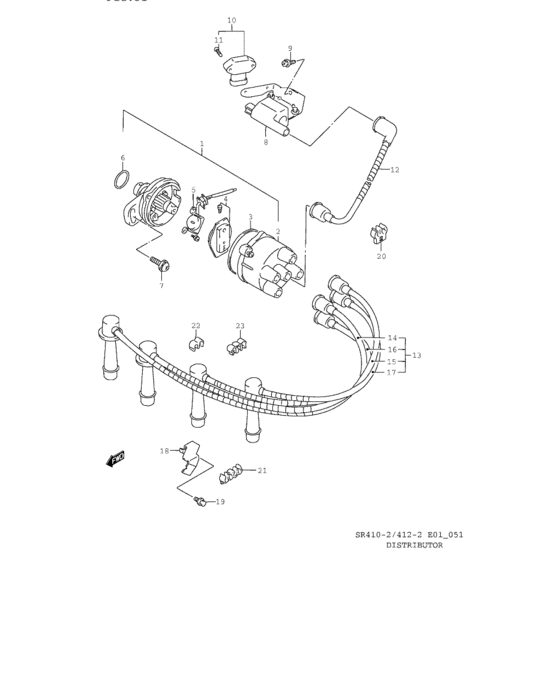

Distributor (DISTRIBUTOR) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-75F51-000
DISTRIBUTOR ASSY
|
33100-75F51-000 |
— | ||
|
2
|
2
33321-75F00-000 CAP ASSY |
33321-75F00-000 |
from US $23.69 |
||
|
3
|
3
33324-73G51-000 PACKING,CAP |
33324-73G51-000 |
US $28.80 |
||
|
4
|
4
33310-75F00-000 ROTOR ASSY |
33310-75F00-000 |
US $32.80 |
||
|
5
|
5
33140-75F50-000 GENERATOR ASSY,SIGNAL |
33140-75F50-000 |
US $206.40 |
||
|
6
|
6
33278-64B10-000 O-RING |
33278-64B10-000 |
US $2.56 |
||
|
7
|
7
09138-08003-000 SCREW(8X30) |
09138-08003-000 |
from US $1.49 |
||
|
8
|
8
33410-75F00-000 COIL ASSY,IGNITION |
33410-75F00-000 |
US $252.80 |
||
|
9
|
9
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
9
|
9
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
10
|
10
33370-75F00-000 IGNITER ASSY |
33370-75F00-000 |
US $450.56 |
||
|
11
|
11
02112-35203-000
Screw
|
02112-35203-000 |
— | ||
| replacement | |||||
|
11
|
11
02112-3520B-000 SCREW |
02112-3520B-000 |
from US $2.21 |
||
|
12
|
12
33710-75F00-000 CORD,HIGH TENSION NO.1 |
33710-75F00-000 |
US $15.97 |
||
|
13
|
13
33705-75F03-000 CORD SET,HIGH TENSION |
33705-75F03-000 |
from US $85.28 |
||
|
14
|
14
33730-75F02-000 CORD SET,HIGH TENSION NO,2 |
33730-75F02-000 |
US $34.22 |
||
|
15
|
15
33740-75F02-000 CORD SET,HIGH TENSION NO,3 |
33740-75F02-000 |
US $34.22 |
||
|
16
|
16
33750-75F03-000 CORD,HIGH TENSION NO,4 |
33750-75F03-000 |
US $30.18 |
||
|
17
|
17
33760-75F03-000
CORD,HIGH TENSION NO,5
|
33760-75F03-000 |
— | ||
|
18
|
18
33881-75F60-000
BRACKET,HT CORD CLAMP
|
33881-75F60-000 |
— | ||
|
19
|
19
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
19
|
19
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
19
|
19
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
20
|
20
33882-60A10-000 CLAMP,HT CORD |
33882-60A10-000 |
from US $0.97 |
||
|
21
|
21
33884-86510-000 CLAMP |
33884-86510-000 |
from US $0.97 |
||
|
22
|
22
09408-00033-000 CLAMPClamp |
09408-00033-000 |
from US $1.60 |
||
|
23
|
23
09408-00035-000 CLIPClamp |
09408-00035-000 |
from US $1.10 |
||
