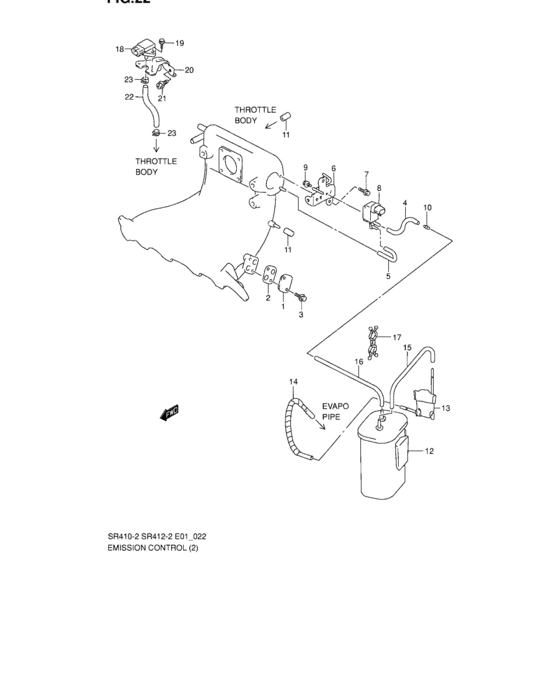

Emission control (SR412:) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18491-61A00-000 PLATE,EGR VALVE |
18491-61A00-000 |
from US $1.06 |
||
|
2
|
2
18529-60A00-000 GASKET,EGR VALVE |
18529-60A00-000 |
from US $0.90 |
||
|
3
|
3
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0616B-000 Bolt |
01550-0616B-000 |
from US $0.76 |
||
|
3
|
3
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
|
4
|
4
09355-35754-601
HOSE(3.5X7.5X601)
L:601->70 |
09355-35754-601 |
— | ||
| replacement | |||||
|
4
|
4
09355-35006-601 Hose(3.5X7.5X601)L:601->70 |
09355-35006-601 |
from US $5.78 |
||
|
5
|
5
09355-35754-601
HOSE(3.5X7.5X601)
L:601->120 |
09355-35754-601 |
— | ||
| replacement | |||||
|
5
|
5
09355-35006-601 Hose(3.5X7.5X601)L:601->120 |
09355-35006-601 |
from US $5.78 |
||
|
6
|
6
18411-75F11-000
BRACKET,PURGE VSV
|
18411-75F11-000 |
— | ||
|
7
|
7
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
7
|
7
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
8
|
8
18114-75F10-000 VALVE,CANISTER PURGE CONT |
18114-75F10-000 |
US $69.18 |
||
|
9
|
9
02162-05083-000
Bolt
|
02162-05083-000 |
— | ||
| replacement | |||||
|
9
|
9
02162-0508A-000 SCREW |
02162-0508A-000 |
from US $2.82 |
||
|
10
|
10
09367-04008-000 2 WAY |
09367-04008-000 |
US $32 |
||
|
11
|
11
09250-04003-000 PLUG(OD:8)Plug (od:8) |
09250-04003-000 |
from US $0.59 |
||
| replacement | |||||
|
11
|
11
07130-0510B-000 BoltBolt, sensor |
07130-0510B-000 |
from US $0.96 |
||
|
12
|
12
18560-50G01-000 CANISTER |
18560-50G01-000 |
US $79.94 |
||
|
13
|
13
18570-75F10-000
PIPE,PIPE TO CSTR
|
18570-75F10-000 |
— | ||
|
14
|
14
18562-75F11-000
HOSE,CANISTER INLET
|
18562-75F11-000 |
— | ||
|
15
|
15
09355-35754-601
HOSE(3.5X7.5X601)
L:601->150 |
09355-35754-601 |
— | ||
| replacement | |||||
|
15
|
15
09355-35006-601 Hose(3.5X7.5X601)L:601->150 |
09355-35006-601 |
from US $5.78 |
||
|
16
|
16
09355-35754-601
HOSE(3.5X7.5X601)
L:601->280 |
09355-35754-601 |
— | ||
| replacement | |||||
|
16
|
16
09355-35006-601 Hose(3.5X7.5X601)L:601->280 |
09355-35006-601 |
from US $5.78 |
||
|
17
|
17
09408-00010-000 CLIP |
09408-00010-000 |
US $11.40 |
||
|
18
|
18
18590-75F00-000 SENSOR,MAP |
18590-75F00-000 |
US $537.60 |
||
|
19
|
19
02112-74163-000
スクリュ
|
02112-74163-000 |
— | ||
| replacement | |||||
|
19
|
19
02112-7416A-000 SCREW |
02112-7416A-000 |
US $11.80 |
||
|
20
|
20
18599-75F00-000
BRACKET,MAP SENSOR
|
18599-75F00-000 |
— | ||
|
21
|
21
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
21
|
21
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
21
|
21
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
22
|
22
09355-40805-600 HOSE(4X8X600)L:600->180 |
09355-40805-600 |
from US $6.24 |
||
|
23
|
23
09401-07402-000
Clip, boost hose
|
09401-07402-000 |
— | ||
| replacement | |||||
|
23
|
23
09401-08409-000 CLIP |
09401-08409-000 |
from US $0.99 |
||
