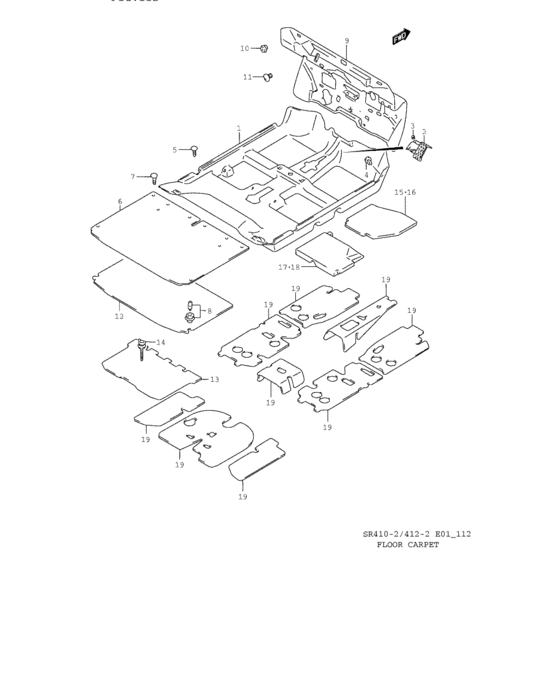

Floor carpet (FLOOR CARPET) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75110-75F11-S01
CARPET,FL
LHD |
75110-75F11-S01 |
— | ||
|
1
|
1
75110-75F00-S01
CARPET,FL
RHD:GA,GL |
75110-75F00-S01 |
— | ||
|
1
|
1
75110-75F20-S01
CARPET,FL
RHD:GLX |
75110-75F20-S01 |
— | ||
|
2
|
2
75490-75F00-5PK
Pedal comp,footrest
RHD:GLX |
75490-75F00-5PK |
— | ||
|
3
|
3
08316-10083-000
Nut
RHD:GLX |
08316-10083-000 |
— | ||
| replacement | |||||
|
3
|
3
08316-1008B-000 NUTRHD:GLX |
08316-1008B-000 |
from US $0.76 |
||
|
4
|
4
09409-05307-T01 CLIP(GRAY)Clip (gray) |
09409-05307-T01 |
US $14.40 |
||
|
5
|
5
09409-06312-T01 CLIP(GRAY) |
09409-06312-T01 |
US $17.30 |
||
|
6
|
6
75130-75F00-S01
CARPET,LUGGAGE FL
|
75130-75F00-S01 |
— | ||
|
7
|
7
09409-10302-T01 CLIP(GRAY) |
09409-10302-T01 |
from US $0.81 |
||
|
8
|
8
09410-00067-000 MALE |
09410-00067-000 |
from US $1.67 |
||
|
9
|
9
75220-75F12-000
Silencer,dash panel
LHD |
75220-75F12-000 |
— | ||
|
9
|
9
75220-75F01-000
Silencer,dash panel
RHD |
75220-75F01-000 |
— | ||
|
10
|
10
09148-05037-000 CLIP |
09148-05037-000 |
from US $1.28 |
||
|
11
|
11
09148-05042-000 CLIPLHD |
09148-05042-000 |
US $1.12 |
||
|
12
|
12
75252-75F00-000 PAD,LUGGAGE FLOOR2WD |
75252-75F00-000 |
US $47.10 |
||
|
13
|
13
75440-75F10-000
COVER,SPARE TIRE
|
75440-75F10-000 |
— | ||
|
14
|
14
75463-70B00-000
SCREW,SPARE TIRE
|
75463-70B00-000 |
— | ||
|
15
|
15
75511-75F00-000
PAD,MAIN FLOOR UPR FR,R
|
75511-75F00-000 |
— | ||
|
16
|
16
75521-75F00-000
PAD,MAIN FLOOR UPR FR,L
|
75521-75F00-000 |
— | ||
|
17
|
17
75531-75F00-000
PAD,MAIN FLOOR UPR RR,R
|
75531-75F00-000 |
— | ||
|
18
|
18
75541-75F00-000
PAD,MAIN FLOOR UPR RR,L
|
75541-75F00-000 |
— | ||
|
19
|
19
99611-60A01-000 SHEET,SILENCER 800X1000X3CUT AS REQUIRED,<-99611-60A00 |
99611-60A01-000 |
US $62.40 |
||
