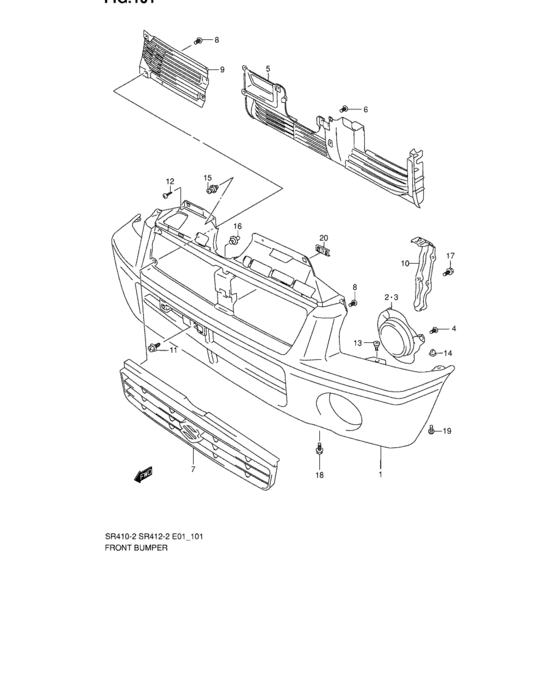

Front bumper (FRONT BUMPER) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-75F40-5PK BUMPER,FR(BLACK)GA:,Chile,Belgium |
71711-75F40-5PK |
US $318.32 |
||
|
1
|
1
71711-75F40-799
BUMPER,FR(PRIMARY)
GA:Australia,GL,PAINT TO MATCH |
71711-75F40-799 |
— | ||
|
1
|
1
71711-75F80-799
Bumper,front
GLX,PAINT TO MATCH |
71711-75F80-799 |
— | ||
|
2
|
2
71714-75F00-5PK
COVER,FOG LAMP HOLE,R
GA:,Belgium |
71714-75F00-5PK |
— | ||
|
2
|
2
71714-75F00-799 COVER,FOG LAMP HOLE,RGA:Chile,Australia,GL,PAINT TO MATCH |
71714-75F00-799 |
US $27.05 |
||
|
3
|
3
71715-75F00-5PK
COVER,FOG LAMP HOLE,L
GA:,Belgium |
71715-75F00-5PK |
— | ||
|
3
|
3
71715-75F00-799 COVER,FOG LAMP HOLE,LGA:Chile,Australia,GL,PAINT TO MATH |
71715-75F00-799 |
US $27.05 |
||
|
4
|
4
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
4
|
4
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
5
|
5
71717-75F10-5PK GARNISH,FR BPR |
71717-75F10-5PK |
US $48.58 |
||
|
6
|
6
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
6
|
6
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
7
|
7
72111-75F00-0CC GRILLE,RDTRGA,GL |
72111-75F00-0CC |
US $191.36 |
||
|
7
|
7
72111-75F00-M1M GRILLE,RDTR(BLACK/CHROME)GLX |
72111-75F00-M1M |
US $206.08 |
||
|
8
|
8
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
8
|
8
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
9
|
9
71721-75F10-000 PANEL,HEAT INSULATOR |
71721-75F10-000 |
US $16.08 |
||
|
10
|
10
71731-74F01-000 STAY,FRONT BUMPER |
71731-74F01-000 |
US $34.40 |
||
|
11
|
11
09111-06061-000
Bolt,6x16.5
|
09111-06061-000 |
— | ||
| replacement | |||||
|
11
|
11
09111-06094-000 BOLT(6X16.5) |
09111-06094-000 |
from US $0.74 |
||
|
12
|
12
09139-05056-000 SCREW(5X15.5) |
09139-05056-000 |
US $1.22 |
||
|
13
|
13
09139-06072-000 SCREW(6X16) |
09139-06072-000 |
from US $1.28 |
||
|
14
|
14
09148-05018-000 NUT |
09148-05018-000 |
from US $0.61 |
||
|
15
|
15
09409-06322-5PK CLIP(BLACK)Clip (black) |
09409-06322-5PK |
from US $1.71 |
||
|
16
|
16
09409-08320-000 CLIP |
09409-08320-000 |
from US $1.13 |
||
|
17
|
17
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
17
|
17
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
18
|
18
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
18
|
18
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
18
|
18
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
19
|
19
09136-05034-000 SCREW(5X16) |
09136-05034-000 |
from US $0.68 |
||
|
20
|
20
71771-75F00-000 RETAINER,LICENSE PLATE |
71771-75F00-000 |
US $2.95 |
||
