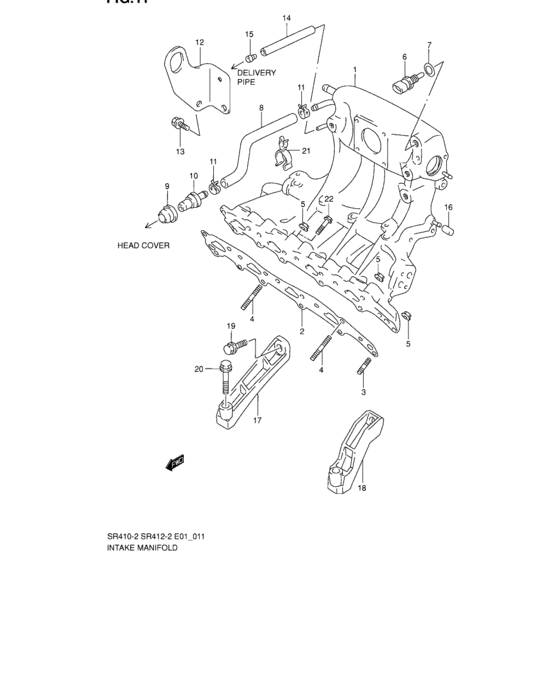

Intake manifold (INTAKE MANIFOLD) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-75F02-000
MANIFOLD,INTK
|
13110-75F02-000 |
— | ||
|
2
|
2
13119-75F00-000 GASKET,INTK MANF |
13119-75F00-000 |
US $9.72 |
||
|
3
|
3
01411-06203-000
STUD 6X20
|
01411-06203-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0620A-000 BOLT,STUD |
01411-0620A-000 |
from US $0.79 |
||
|
4
|
4
01411-06353-000
Stud bolt
|
01411-06353-000 |
— | ||
| replacement | |||||
|
4
|
4
01411-0635A-000 BOLT,STUD |
01411-0635A-000 |
US $9.90 |
||
|
5
|
5
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
13650-73G00-000
SENSOR,AIR TEMP
|
13650-73G00-000 |
— | ||
|
7
|
7
09168-12016-000 GASKET(12.2X21X0.8) |
09168-12016-000 |
from US $1.28 |
||
|
8
|
8
11192-75F00-000 HOSE,PCV |
11192-75F00-000 |
US $9.64 |
||
|
9
|
9
11198-58B00-000 SEAL,PCV VALVESeal, pcv valve |
11198-58B00-000 |
from US $3.38 |
||
| replacement | |||||
|
9
|
9
11198-98L00-000 Seal,pcv Valve |
11198-98L00-000 |
from US $2.74 |
||
|
10
|
10
18118-58B00-000 VALVE,PCV |
18118-58B00-000 |
from US $15.10 |
||
|
11
|
11
09401-14404-000 CLIP |
09401-14404-000 |
from US $3.59 |
||
|
12
|
12
11851-75F02-000
フック,エンジン
|
11851-75F02-000 |
— | ||
| replacement | |||||
|
12
|
12
11851-75F0V-000
HOOK,ENGINE
|
11851-75F0V-000 |
— | ||
|
13
|
13
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0616B-000 Bolt |
01550-0616B-000 |
from US $0.76 |
||
|
13
|
13
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
|
14
|
14
09355-35754-601
HOSE(3.5X7.5X601)
L:601->160 |
09355-35754-601 |
— | ||
| replacement | |||||
|
14
|
14
09355-35006-601 Hose(3.5X7.5X601)L:601->160 |
09355-35006-601 |
from US $5.78 |
||
|
15
|
15
15616-64D00-000 JET |
15616-64D00-000 |
US $3.64 |
||
|
16
|
16
09250-04003-000 PLUG(OD:8)Plug (od:8) |
09250-04003-000 |
from US $0.59 |
||
| replacement | |||||
|
16
|
16
07130-0510B-000 BoltBolt, sensor |
07130-0510B-000 |
from US $0.96 |
||
|
17
|
17
13163-75F00-000
STIFFENER,NO.1
|
13163-75F00-000 |
— | ||
|
18
|
18
13164-75F00-000
STIFFENER,NO.2
|
13164-75F00-000 |
— | ||
|
19
|
19
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0825B-000 Bolt |
01550-0825B-000 |
from US $1.06 |
||
|
19
|
19
01550-0825A-000 Bolt |
01550-0825A-000 |
from US $0.47 |
||
|
20
|
20
01550-08503-000
Bolt
|
01550-08503-000 |
— | ||
| replacement | |||||
|
20
|
20
01550-0850B-000 Bolt |
01550-0850B-000 |
from US $1.22 |
||
|
21
|
21
09408-00069-000 CLIPClip |
09408-00069-000 |
US $18 |
||
|
22
|
22
01550-06353-000
Bolt
SEE NOTE |
01550-06353-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0635B-000 BoltSEE NOTE |
01550-0635B-000 |
from US $0.91 |
||
|
22
|
22
01550-0635A-000 BoltSEE NOTE |
01550-0635A-000 |
from US $0.96 |
||
