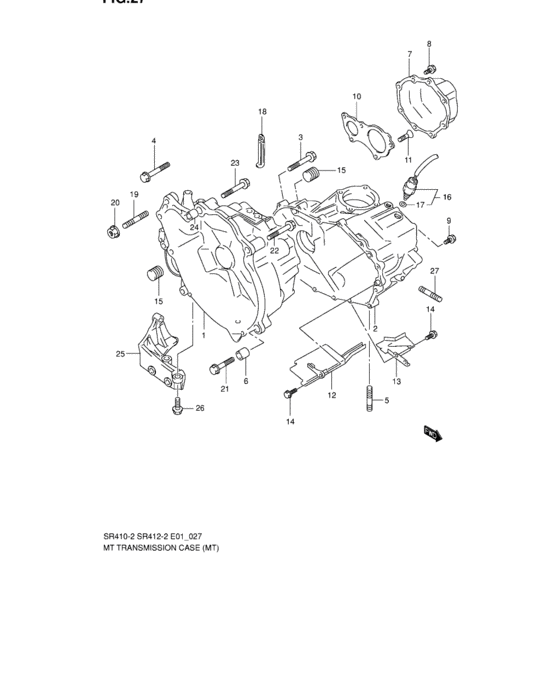

Mt tm case (MT) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24711-78G20-000
ケース,トランスミッション,ライト
|
24711-78G20-000 |
— | ||
| replacement | |||||
|
1
|
1
24711-78G60-000
CASE,T/M,R
|
24711-78G60-000 |
— | ||
|
2
|
2
24721-78G00-000
ケース,トランスミッション,レフト
|
24721-78G00-000 |
— | ||
| replacements | |||||
|
2
|
2
24725-58J00-000 PLATE,T/M LEFT CASE |
24725-58J00-000 |
US $18.95 |
||
|
2
|
2
24728-65G40-000 SCREW,T/M LEFT CASE PLATE |
24728-65G40-000 |
from US $1.15 |
||
|
2
|
2
24730-78G02-000 COVER,T/M SIDE |
24730-78G02-000 |
US $52.99 |
||
|
2
|
2
24721-78G41-000 CASE,T/M,L |
24721-78G41-000 |
US $499.84 |
||
|
3
|
3
01550-08403-000
Bolt
|
01550-08403-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
3
|
3
01550-0840A-000 Bolt |
01550-0840A-000 |
from US $1.12 |
||
|
4
|
4
01550-08553-000
Bolt
|
01550-08553-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0855B-000 Bolt |
01550-0855B-000 |
from US $1.58 |
||
|
4
|
4
01550-0855A-000 BoltBolt, gear holder |
01550-0855A-000 |
from US $1.22 |
||
|
5
|
5
09108-08221-000 BOLT,STUD |
09108-08221-000 |
US $24.30 |
||
|
6
|
6
04211-13149-000 PIN |
04211-13149-000 |
from US $1.44 |
||
|
7
|
7
24730-78G00-000
カバー,トランスミッション,サイド
|
24730-78G00-000 |
— | ||
| replacement | |||||
|
7
|
7
24730-78G02-000 COVER,T/M SIDE |
24730-78G02-000 |
US $52.99 |
||
|
8
|
8
09135-06022-000
Bolt
|
09135-06022-000 |
— | ||
| replacement | |||||
|
8
|
8
09135-06027-000 BOLT(6X12) |
09135-06027-000 |
from US $1.12 |
||
|
9
|
9
09135-06022-000
Bolt
|
09135-06022-000 |
— | ||
| replacement | |||||
|
9
|
9
09135-06027-000 BOLT(6X12) |
09135-06027-000 |
from US $1.12 |
||
|
10
|
10
24725-78G20-000 PLATE,T/M LEFT CASE |
24725-78G20-000 |
from US $12.15 |
||
|
11
|
11
24728-65G20-000 SCREW,T/M LEFT CASE PLATE |
24728-65G20-000 |
from US $1.52 |
||
|
12
|
12
24810-78G01-000 GUTTER,INPUT OIL |
24810-78G01-000 |
US $9.57 |
||
|
13
|
13
24815-78G20-000 GUTTER,OIL |
24815-78G20-000 |
US $3.90 |
||
|
14
|
14
01570-06123-000
Bolt
|
01570-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
01570-0612B-000 BoltBolt, upper |
01570-0612B-000 |
US $0.96 |
||
|
14
|
14
01570-0612A-000 BoltBolt |
01570-0612A-000 |
from US $0.96 |
||
|
15
|
15
09246-16010-000 PLUG |
09246-16010-000 |
US $4.37 |
||
| replacement | |||||
|
15
|
15
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
from US $4.37 |
||
|
16
|
16
37610-70B11-000 SWITCH ASSY,BACK UP LAMP |
37610-70B11-000 |
from US $31.64 |
||
|
17
|
17
09280-11002-000 O RING(D:1.9,ID:11.4) |
09280-11002-000 |
from US $0.97 |
||
|
18
|
18
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
| replacement | |||||
|
18
|
18
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
19
|
19
01421-10353-000
Stud 10x1.25x55
|
01421-10353-000 |
— | ||
| replacements | |||||
|
19
|
19
01421-1035A-000 BOLT,STUD |
01421-1035A-000 |
from US $4.13 |
||
|
19
|
19
01421-1035B-000 BOLT,STUD |
01421-1035B-000 |
US $17.30 |
||
|
20
|
20
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
20
|
20
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
21
|
21
01550-10453-000
Bolt
|
01550-10453-000 |
— | ||
| replacement | |||||
|
21
|
21
01550-1045B-000 Bolt |
01550-1045B-000 |
from US $1.28 |
||
|
22
|
22
01550-10553-000
Bolt
|
01550-10553-000 |
— | ||
| replacement | |||||
|
22
|
22
01550-1055B-000 Bolt |
01550-1055B-000 |
from US $1.60 |
||
|
23
|
23
01550-10603-000
Bolt
|
01550-10603-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-1060B-000 Bolt |
01550-1060B-000 |
US $1.60 |
||
|
23
|
23
01550-1060A-000 Bolt |
01550-1060A-000 |
from US $1.60 |
||
|
24
|
24
04211-13149-000 PIN |
04211-13149-000 |
from US $1.44 |
||
|
25
|
25
29531-75F80-000
STIFFENER,T/F CASE
|
29531-75F80-000 |
— | ||
|
26
|
26
01550-10303-000
Bolt
|
01550-10303-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-1030B-000 BoltBolt, axle housing rear |
01550-1030B-000 |
from US $1.87 |
||
|
26
|
26
01550-1030A-000 Bolt |
01550-1030A-000 |
from US $1.12 |
||
|
27
|
27
09108-10138-000 BOLT,STUD |
09108-10138-000 |
from US $3.83 |
||
