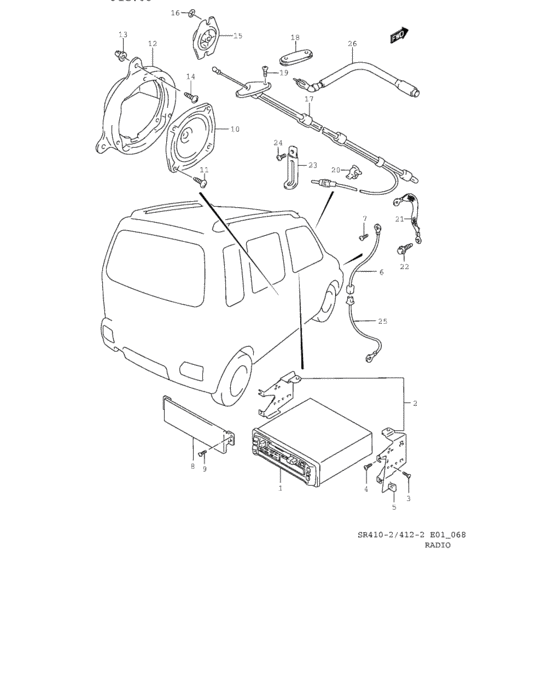

Radio (RADIO) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39101-75F71-000
Tuner assy
:W/RADIO,~MA81S-200014 |
39101-75F71-000 |
— | ||
|
1
|
1
39101-71G40-000
Tuner assy(am/fm,cassette)
:W/RADIO,~MA81S-200014 |
39101-71G40-000 |
— | ||
|
1
|
1
39101-75F81-000
Tuner assy
:LHD:W/RADIO,MA81S-200015~ |
39101-75F81-000 |
— | ||
|
1
|
1
39101-70GA0-000
Tuner assy
:LHD:W/RADIO,MA81S-200015~ |
39101-70GA0-000 |
— | ||
|
2
|
2
39320-60820-000 BRACKET SET,TUNER:W/RADIO |
39320-60820-000 |
US $14.57 |
||
|
3
|
3
02142-05083-000
Screw
:W/RADIO |
02142-05083-000 |
— | ||
| replacement | |||||
|
3
|
3
02142-0508A-000 SCREWScrew, cap :W/RADIO |
02142-0508A-000 |
from US $0.76 |
||
|
4
|
4
03541-05203-000
Screw
:W/RADIO |
03541-05203-000 |
— | ||
| replacement | |||||
|
4
|
4
03541-0520A-000 SCREW:W/RADIO |
03541-0520A-000 |
from US $0.76 |
||
|
5
|
5
09148-05004-000 NUT:W/RADIO |
09148-05004-000 |
US $11.80 |
||
| replacement | |||||
|
5
|
5
09148-05013-000 NUT:W/RADIO |
09148-05013-000 |
from US $0.36 |
||
|
6
|
6
39192-70G00-000 WIRE,TUNER GND NO.2 |
39192-70G00-000 |
US $2.91 |
||
|
7
|
7
03241-06123-000
Screw
|
03241-06123-000 |
— | ||
| replacement | |||||
|
7
|
7
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
8
|
8
39161-70E01-000 COVER,RADIO HOLEN/RADIO |
39161-70E01-000 |
US $13.23 |
||
|
9
|
9
03541-05203-000
Screw
N/RADIO |
03541-05203-000 |
— | ||
| replacement | |||||
|
9
|
9
03541-0520A-000 SCREWN/RADIO |
03541-0520A-000 |
from US $0.76 |
||
|
10
|
10
39102-50E10-000
SPEAKER ASSY,FR
GL,GLX,W/SPEAKER |
39102-50E10-000 |
— | ||
|
11
|
11
03541-05123-000
Screw
GL,GLX,W/SPEAKER |
03541-05123-000 |
— | ||
| replacement | |||||
|
11
|
11
03541-0512B-000 SCREWGL,GLX,W/SPEAKER |
03541-0512B-000 |
from US $0.76 |
||
|
12
|
12
39350-75F00-000
BRACKET,SPKR
GL,GLX,W/SPEAKER |
39350-75F00-000 |
— | ||
|
13
|
13
09148-06007-000 NUTGL,GLX,W/SPEAKER |
09148-06007-000 |
from US $0.91 |
||
|
14
|
14
03542-06203-000
Screw
GL,GLX,W/SPEAKER |
03542-06203-000 |
— | ||
| replacement | |||||
|
14
|
14
03541-0620A-000 SCREWGL,GLX,W/SPEAKER |
03541-0620A-000 |
from US $3.35 |
||
|
15
|
15
39102-74F21-000
SPEAKER,TWEETER
GL,GLX,W/SPEAKER |
39102-74F21-000 |
— | ||
|
16
|
16
09148-05012-000 NUTGL,GLX,W/SPEAKER |
09148-05012-000 |
from US $1.28 |
||
|
17
|
17
39250-70B30-000 ANTENNA ASSYLHD,W/ANTENNA |
39250-70B30-000 |
US $69.92 |
||
|
17
|
17
39250-70B40-000 ANTENNA ASSYRHD,W/ANTENNA |
39250-70B40-000 |
US $69.92 |
||
|
18
|
18
39262-70B30-000
COVER,ANT HOLE
LHD,N/ANTENNA |
39262-70B30-000 |
— | ||
|
18
|
18
39262-70B10-000
COVER,ANT HOLE
RHD,N/ANTENNA |
39262-70B10-000 |
— | ||
|
19
|
19
39251-60D01-000
Screw
|
39251-60D01-000 |
— | ||
| replacements | |||||
|
19
|
19
09129-04003-000 SCREW(4X12) |
09129-04003-000 |
US $1.60 |
||
|
19
|
19
09125-04033-000
スクリュ,4X16
|
09125-04033-000 |
— | ||
|
20
|
20
09403-06412-000 CLAMPW/ANTENNA |
09403-06412-000 |
US $1.44 |
||
|
21
|
21
39312-82012-000 WIRE,NOISE SUPPR |
39312-82012-000 |
US $9.76 |
||
|
22
|
22
09115-06001-000 Bolt, lhBolt (6x16) |
09115-06001-000 |
US $0.86 |
||
| replacement | |||||
|
22
|
22
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
from US $0.86 |
||
|
23
|
23
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
| replacement | |||||
|
23
|
23
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
24
|
24
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
24
|
24
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
25
|
25
39191-50F00-000 WIRE,TUNER GND:W/RADIO |
39191-50F00-000 |
US $2.24 |
||
|
26
|
26
39271-75F00-000 FEEDER,ANT |
39271-75F00-000 |
US $18.58 |
||
