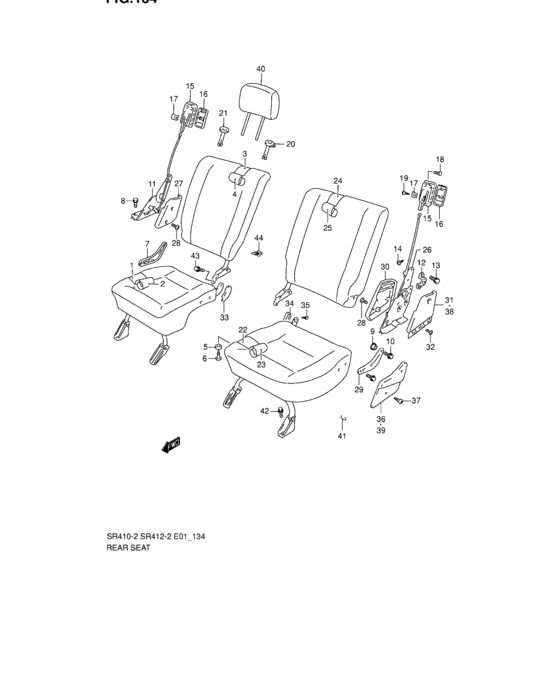

Rear seat (REAR SEAT) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87105-75F00-000
CUSHION SUB ASSY,RR,R
|
87105-75F00-000 |
— | ||
|
2
|
2
87180-75F00-J0G
TRIM,RR CUSHION,R
|
87180-75F00-J0G |
— | ||
|
3
|
3
87305-75F00-000
BACK S/ASSY,RR,R
|
87305-75F00-000 |
— | ||
|
4
|
4
87380-75F00-J0G
Trim comp,rr back,r
|
87380-75F00-J0G |
— | ||
|
5
|
5
09320-06003-000 CUSHION |
09320-06003-000 |
from US $0.25 |
||
|
6
|
6
03242-05163-000
Screw
|
03242-05163-000 |
— | ||
| replacement | |||||
|
6
|
6
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
7
|
7
87128-74F10-000
STAY,REAR OUTSIDE,R
|
87128-74F10-000 |
— | ||
|
8
|
8
01570-08163-000
Bolt
|
01570-08163-000 |
— | ||
| replacement | |||||
|
8
|
8
01570-0816A-000 Bolt |
01570-0816A-000 |
from US $1.12 |
||
|
9
|
9
87119-74F00-000
BUSH,RR SEAT BACK FIXING
|
87119-74F00-000 |
— | ||
|
10
|
10
09136-06004-000 SCREW(6X12) |
09136-06004-000 |
from US $0.56 |
||
|
11
|
11
87320-75F00-000
RECLINING ASSY,RR,R
|
87320-75F00-000 |
— | ||
|
12
|
12
87315-74F10-000
BRACKET,RR BACK OUTSIDE
|
87315-74F10-000 |
— | ||
|
13
|
13
01570-08203-000
Bolt
|
01570-08203-000 |
— | ||
| replacements | |||||
|
13
|
13
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
13
|
13
01570-0820A-000 Bolt |
01570-0820A-000 |
from US $0.96 |
||
|
14
|
14
03241-05083-000
Screw
|
03241-05083-000 |
— | ||
| replacement | |||||
|
14
|
14
03241-0508A-000 SCREW |
03241-0508A-000 |
US $0.80 |
||
|
15
|
15
87841-74F01-5PK BASE,RR RECL LEVER |
87841-74F01-5PK |
US $17.11 |
||
|
16
|
16
87842-74F11-5PK LEVER,RR RCLNG |
87842-74F11-5PK |
US $9.46 |
||
|
17
|
17
87843-74F01-000 STOPPER,RR RECLINING LEVER |
87843-74F01-000 |
US $5.04 |
||
|
18
|
18
02122-05103-000
Screw (green)
|
02122-05103-000 |
— | ||
| replacement | |||||
|
18
|
18
02122-0510A-000 SCREW |
02122-0510A-000 |
US $0.80 |
||
|
19
|
19
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
19
|
19
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
20
|
20
85840-72C10-5PK GUIDE,HEADRESTRAINT,L |
85840-72C10-5PK |
from US $9.43 |
||
|
21
|
21
85341-72C10-5PK GUIDE,HEADRESTRAINT,R |
85341-72C10-5PK |
from US $3.38 |
||
|
22
|
22
87106-75F00-000
CUSHION SUB ASSY,RR,L
|
87106-75F00-000 |
— | ||
|
23
|
23
87680-75F00-J0G
Trim comp,rr cush,l
|
87680-75F00-J0G |
— | ||
|
24
|
24
87306-75F00-000
Back sub assy,rr,l
|
87306-75F00-000 |
— | ||
|
25
|
25
87880-75F00-J0G
TRIM,RR BACK,L
|
87880-75F00-J0G |
— | ||
|
26
|
26
87720-75F00-000
RECLINING ASSY,RR,L
|
87720-75F00-000 |
— | ||
|
27
|
27
87445-74F11-T01
COVER,RR RECL INSIDE
|
87445-74F11-T01 |
— | ||
|
28
|
28
02142-05083-000
Screw
|
02142-05083-000 |
— | ||
| replacement | |||||
|
28
|
28
02142-0508A-000 SCREWScrew, cap |
02142-0508A-000 |
from US $0.76 |
||
|
29
|
29
87628-74F10-000 STAY,REAR CUSH,L |
87628-74F10-000 |
US $11.04 |
||
|
30
|
30
87545-74F11-T01
COVER,RR RECL INSIDE,L
|
87545-74F11-T01 |
— | ||
|
31
|
31
87441-74F50-T01 COVER,RECLINING OUTSIDE,R |
87441-74F50-T01 |
US $10.16 |
||
|
32
|
32
02142-05083-000
Screw
|
02142-05083-000 |
— | ||
| replacement | |||||
|
32
|
32
02142-0508A-000 SCREWScrew, cap |
02142-0508A-000 |
from US $0.76 |
||
|
33
|
33
87117-75F00-T01
COVER,RR CUSHION STAY,R
|
87117-75F00-T01 |
— | ||
|
34
|
34
87617-75F00-T01
COVER,RR CUSHION STAY,L
|
87617-75F00-T01 |
— | ||
|
35
|
35
03222-04083-000
Screw
|
03222-04083-000 |
— | ||
| replacement | |||||
|
35
|
35
03221-0408A-000 SCREW |
03221-0408A-000 |
US $10.30 |
||
|
36
|
36
87117-74F51-T01 COVER,RR STAY OUTSIDE |
87117-74F51-T01 |
US $11.19 |
||
|
37
|
37
87245-74F00-000
SCREW,RR STAY COVER
|
87245-74F00-000 |
— | ||
|
38
|
38
87541-74F10-T01 COVER,RR RECL OUTSIDE,L |
87541-74F10-T01 |
US $10.16 |
||
|
39
|
39
87617-74F11-T01 COVER,RR STAY OUTSID,L |
87617-74F11-T01 |
US $12.14 |
||
|
40
|
40
86401-75F50-T92
Headrestraint assy
|
86401-75F50-T92 |
— | ||
| replacement | |||||
|
40
|
40
86401-75F51-T92
HEADRESTRAINT ASSY
|
86401-75F51-T92 |
— | ||
|
41
|
41
09387-19001-000 RING |
09387-19001-000 |
from US $0.77 |
||
|
42
|
42
09118-08157-000 BOLT(8X20) |
09118-08157-000 |
US $23.20 |
||
|
43
|
43
09118-08156-000 BOLT(8X25) |
09118-08156-000 |
from US $1.26 |
||
|
44
|
44
09409-10302-T01 CLIP(GRAY) |
09409-10302-T01 |
from US $0.81 |
||
