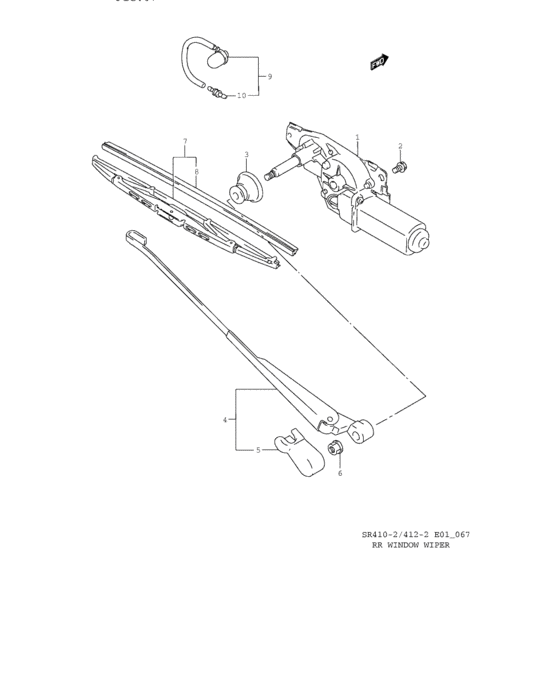

Rear window wiper (EXC/Australia:GA) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38810-75F02-000 WIPER ASSY,RR WINDOW |
38810-75F02-000 |
from US $157.55 |
||
|
2
|
2
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
2
|
2
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
2
|
2
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
3
|
3
38274-50E00-000 CAP,WIPER PIVOT |
38274-50E00-000 |
US $2.24 |
||
|
3
|
3
38274-81A00-000 CAP,WIPER PIVOTJSAEMA61S00206970~,JSAEMA61SW5200015~,MA81S-200094~,JSAEMA81S00206390~,JSAEMA81SX5200253~,JSAEMA81SX0200001~,JSAEMB81S00201153~ |
38274-81A00-000 |
from US $3.67 |
||
|
4
|
4
38821-60F10-000 ARM ASSY,RR WIPER |
38821-60F10-000 |
US $75.20 |
||
|
5
|
5
38315-81000-000 COVER,ARM HEAD |
38315-81000-000 |
from US $3.62 |
||
|
6
|
6
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
7
|
7
38340-81A20-000 BLADE ASSY,RR WIPER |
38340-81A20-000 |
from US $13.10 |
||
|
8
|
8
38346-82C00-000 RUBBER,BLADE |
38346-82C00-000 |
from US $6.03 |
||
|
9
|
9
38840-70B10-000
Nozzle assy, rear washer
|
38840-70B10-000 |
— | ||
| replacement | |||||
|
9
|
9
38840-70B11-000 NOZZLE ASSY,RR WASHER |
38840-70B11-000 |
US $11.19 |
||
|
10
|
10
38496-61A00-000 VALVE,CHECK |
38496-61A00-000 |
from US $2.08 |
||
