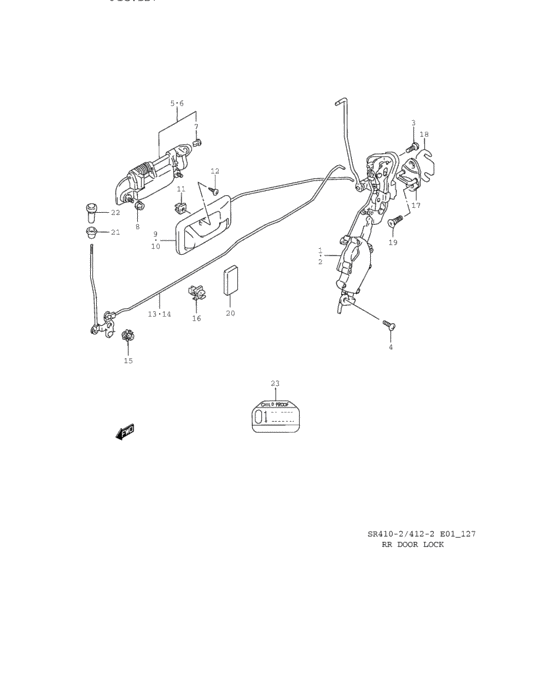

Rr dr lock (RR DR LOCK) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82301-74F20-000 LATCH ASSY,RR DR,RGA,GL |
82301-74F20-000 |
US $79.49 |
||
|
1
|
1
82301-74F30-000 LATCH ASSY,RR DR,RGL:,Chile,Belgium,4,Brazil,Israel,GLX |
82301-74F30-000 |
US $296.24 |
||
|
2
|
2
82302-74F20-000 LATCH ASSY,RR DR,LGA,GL |
82302-74F20-000 |
US $79.49 |
||
|
2
|
2
82302-74F30-000 LATCH ASSY,RR DR,LGL:,Chile,Belgium,4,Brazil,Israel,GLX |
82302-74F30-000 |
US $296.24 |
||
|
3
|
3
09137-06025-000 SCREW(6X16) |
09137-06025-000 |
from US $1.19 |
||
|
4
|
4
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
4
|
4
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
4
|
4
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.96 |
||
|
5
|
5
82801-74F00-5PK HANDLE,SIDE DR OUT,R |
82801-74F00-5PK |
from US $42.57 |
||
|
6
|
6
82802-74F00-5PK HANDLE,SIDE DR OUT,L |
82802-74F00-5PK |
from US $42.57 |
||
|
7
|
7
82816-74F00-000 SNAP,ADJUSTING JOINT |
82816-74F00-000 |
US $2.13 |
||
|
8
|
8
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
9
|
9
83103-74F01-T01
HANDLE ASSY,RR DR,R
|
83103-74F01-T01 |
— | ||
| replacement | |||||
|
9
|
9
83103-74F02-T01 HANDLE,RR DR INSIDE,R |
83103-74F02-T01 |
US $31.28 |
||
|
10
|
10
83104-74F01-T01
HANDLE ASSY,RR DR,L
|
83104-74F01-T01 |
— | ||
| replacement | |||||
|
10
|
10
83104-74F02-T01 HANDLE,RR DR INSIDE,L |
83104-74F02-T01 |
US $31.28 |
||
|
11
|
11
83119-60B00-000 NUT,FR DOOR INSIDE HANDLE |
83119-60B00-000 |
from US $1.06 |
||
|
12
|
12
03521-05163-000
Screw
|
03521-05163-000 |
— | ||
| replacement | |||||
|
12
|
12
03521-0516A-000 SCREW |
03521-0516A-000 |
US $7.70 |
||
|
13
|
13
83270-74F01-000 ROD,RR DOOR INSIDE LOCK,R |
83270-74F01-000 |
US $17.96 |
||
|
14
|
14
83280-74F01-000 ROD,RR DOOR INSIDE LOCK,L |
83280-74F01-000 |
US $17.96 |
||
|
15
|
15
83261-56B00-000 PIN,FR DOOR INSIDE LOCK ROD |
83261-56B00-000 |
from US $1.55 |
||
|
16
|
16
83271-60D00-000 CLIP |
83271-60D00-000 |
from US $1.80 |
||
|
17
|
17
82610-60D00-000 STRIKER,DOOR LATCH |
82610-60D00-000 |
from US $9.68 |
||
|
18
|
18
78199-78000-000 SPACER,DOOR LOCK STRIKER |
78199-78000-000 |
from US $0.68 |
||
|
19
|
19
09137-08006-000
Screw
|
09137-08006-000 |
— | ||
| replacements | |||||
|
19
|
19
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
from US $1.40 |
||
|
19
|
19
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.99 |
||
|
20
|
20
77591-75000-000 PAD |
77591-75000-000 |
from US $0.56 |
||
|
21
|
21
82991-84000-000 CAP,DR INSIDE LOCK KNOB |
82991-84000-000 |
from US $1.40 |
||
|
22
|
22
82982-50F00-T01 KNOB,DOOR INSIDE LOCK |
82982-50F00-T01 |
US $3.31 |
||
|
23
|
23
86951-78004-000 CAUTION PLATE,CHILD PROOF |
86951-78004-000 |
US $1.60 |
||
