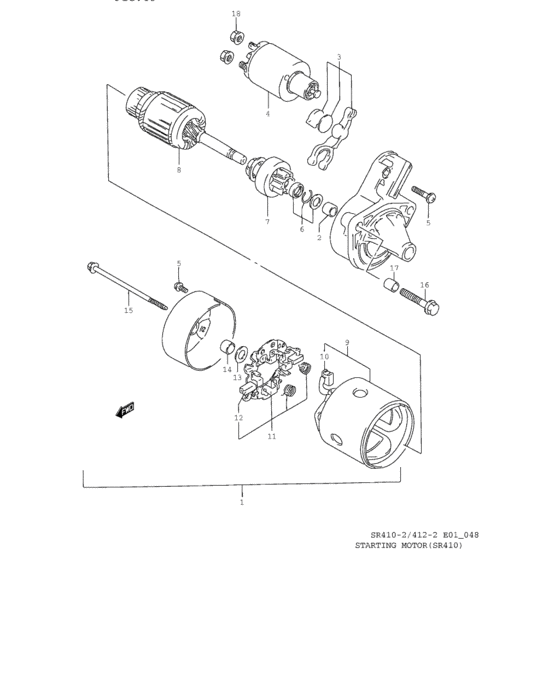

Starting motor (SR410) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-75F02-000
Motor assy,starting
|
31100-75F02-000 |
— | ||
| replacement | |||||
|
1
|
1
31100-75F03-000 MOTOR ASSY,STARTING |
31100-75F03-000 |
US $499.84 |
||
|
2
|
2
31152-70B30-000 BUSHING |
31152-70B30-000 |
from US $27.97 |
||
|
2
|
2
31152-79030-000 BEARING,FRONTJSAEMA61S00301038~ |
31152-79030-000 |
from US $5.11 |
||
|
3
|
3
31191-79030-000 LEVER ASSY |
31191-79030-000 |
US $14.46 |
||
|
4
|
4
31220-84030-000 SWITCH ASSY |
31220-84030-000 |
from US $165.11 |
||
|
5
|
5
31136-79030-000 SCREW ASSY |
31136-79030-000 |
US $3.38 |
||
| replacement | |||||
|
5
|
5
31175-79030-000 Screw Set |
31175-79030-000 |
US $8.16 |
||
|
6
|
6
31313-80090-000 RING SET |
31313-80090-000 |
from US $4.25 |
||
|
7
|
7
31320-82631-000 CLUTCH ASSY |
31320-82631-000 |
from US $92.99 |
||
|
8
|
8
31311-75F00-000
アマチュア
|
31311-75F00-000 |
— | ||
|
8
|
8
31311-86131-000 ARMATUREJSAEMA61S00301038~ |
31311-86131-000 |
US $314.64 |
||
|
9
|
9
31110-75F00-000
ヨークアッシ
|
31110-75F00-000 |
— | ||
|
9
|
9
31110-70B30-000 YOKE ASSYJSAEMA61S00301038~ |
31110-70B30-000 |
US $281.52 |
||
|
10
|
10
31131-80090-000 BRUSH(+) |
31131-80090-000 |
from US $8.84 |
||
|
11
|
11
31173-82130-000 HOLDER ASSY,BRUSH |
31173-82130-000 |
from US $43.20 |
||
|
12
|
12
31132-80090-000 BRUSH(-) |
31132-80090-000 |
from US $8.60 |
||
|
13
|
13
31361-79030-000 WASHER |
31361-79030-000 |
from US $5.20 |
||
|
14
|
14
31172-79030-000 BUSH |
31172-79030-000 |
from US $3.38 |
||
|
15
|
15
31261-82130-000 Bolt |
31261-82130-000 |
from US $1.89 |
||
|
16
|
16
01550-08403-000
Bolt
|
01550-08403-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
16
|
16
01550-0840A-000 Bolt |
01550-0840A-000 |
from US $1.12 |
||
|
17
|
17
04211-11129-000 PIN |
04211-11129-000 |
from US $0.99 |
||
|
18
|
18
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
